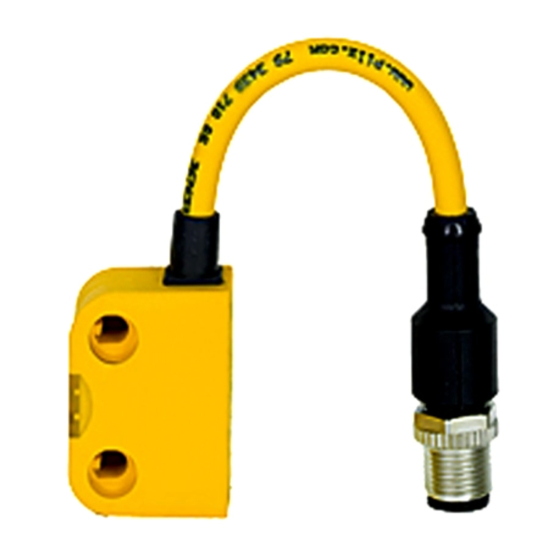

- Page 1 PSEN ma1.4-51 M12/8-0.15m PSEN sensor technology Operating Manual-22185-EN-07...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Installation type 2 ........................18 Adjustment ..........................19 Periodic test ..........................19 Dimensions in mm .........................19 Technical details ........................20 Safety characteristic data......................22 Order reference ........................22 System ............................22 Accessories..........................22 EC declaration of conformity ....................23 UKCA-Declaration of Conformity ..................23 Operating Manual PSEN ma1.4-51 M12/8-0.15m 22185-EN-07... -
Page 4: Introduction
PSEN ma1.4-51 M12/8-0.15m Introduction Validity of documentation This documentation is valid for the product PSEN ma1.4-51 M12/8-0.15m. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
EN ISO 13849 and EN 62061. However, this does not guarantee the functional safety of the overall plant/machine. To achieve the relevant safety level of the overall plant/ machine’s required safety functions, each safety function needs to be considered separ- ately. Operating Manual PSEN ma1.4-51 M12/8-0.15m 22185-EN-07... -
Page 6: Use Of Qualified Personnel
– If substitute actuators are used, these must be installed as described under Installation [ 14]. – If the original actuators are replaced with substitute actuators, the ori- ginal actuators must be destroyed before disposal. Operating Manual PSEN ma1.4-51 M12/8-0.15m 22185-EN-07... -
Page 7: Unit Features
If the actuator is within the response range (safety gate closed), the safety contacts and the auxiliary contact on the safety switch will be closed and the LED will light. Operate the PSEN ma1.4-51 M12/8-0.15m in conjunction with the following components: Actuator PSEN ma1.4-03 or actuator PSEN ma1.4-10 (see... -
Page 8: Block Diagram
Safety switch Actuator Magnet Operating distances (mm) omin Legend Assured operating distance Min. operating distance omin Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 20]. Operating Manual PSEN ma1.4-51 M12/8-0.15m 22185-EN-07... -
Page 9: Lateral And Vertical Offset
Vertical offset 0 mm 2 mm 4 mm 6 mm 8 mm 0 mm 10.0 10.0 2 mm 10.0 10.0 4 mm 6 mm The stated values are valid at a temperature of 20 °C. Operating Manual PSEN ma1.4-51 M12/8-0.15m 22185-EN-07... -
Page 10: Wiring
The colour marking for the connection lead only applies for the cable that Pilz supplies as an accessory The safety switch is shown in an unoperated condition. pink Assignment of the 8-pin con- green nector white yellow brown blue grey Operating Manual PSEN ma1.4-51 M12/8-0.15m | 10 22185-EN-07... -
Page 11: Requirements And Connection To Evaluation Devices
PNOZmulti units – may not be used for safety circuits Requirements and connection to evaluation devices For use of PSEN ma1.4-51 M12/8-0.15m in accordance with DIN EN 60947-5-3 an evalu- ation device must be connected. Connect the PSEN ma1.4-51 M12/8-0.15m either with a certified Pilz evaluation device... - Page 12 The risk time is made up of the reaction time of the sensor (see Technical details [ 20]) and the processing and delay times of the evaluation device (s. operating manual for the relevant evaluation device). Operating Manual PSEN ma1.4-51 M12/8-0.15m | 12 22185-EN-07...
- Page 13 PSEN ma1.4-51 M12/8-0.15m PSENmag Evaluation device Input circuit Input circuit Fig.: Dual-channel connection PSEN ma1.4-51 M12/8-0.15m to the input circuits of an evaluation device Examples for connection to Pilz evaluation devices: PNOZ s3 PSENmag white green yellow pink PNOZmulti PSENmag...
-
Page 14: Installation
Installing the safety switch non-flush within electrically or magnetically con- ductive material, the value for the assured release distance S can change. – Check the assured release distance S Operating Manual PSEN ma1.4-51 M12/8-0.15m | 14 22185-EN-07... - Page 15 Alignment errors of the guard must not adversely affect the safety function of the guard. The assured operating distance S and the assured release distance S must be tested under real conditions. Do not apply any installation tools (e.g. Pliers) on the surfaces of the switch. Operating Manual PSEN ma1.4-51 M12/8-0.15m | 15 22185-EN-07...
-
Page 16: Installation Type 1
9. Close unused mounting holes using seal (2) (see Diagram [ 17]). 10. Close mounting holes on the sensing face using seal (3) (see Diagram [ 17]). 11. Installation of sensor and actuator is now complete. Operating Manual PSEN ma1.4-51 M12/8-0.15m | 16 22185-EN-07... - Page 17 PSEN ma1.4-51 M12/8-0.15m INFORMATION Seals (1), (2), (3) meet the requirements of UL 94 V0, seal (4) does not meet UL requirements. Operating Manual PSEN ma1.4-51 M12/8-0.15m | 17 22185-EN-07...
-
Page 18: Installation Type 2
6. Close mounting holes on the sensing face using seal (3) (see Diagram [ 18]). 7. Installation of sensor and actuator is now complete. INFORMATION Seals (1), (2), (3) meet the requirements of UL 94 V0, seal (4) does not meet UL requirements. Operating Manual PSEN ma1.4-51 M12/8-0.15m | 18 22185-EN-07... -
Page 19: Adjustment
Carry out a monthly function test on the safety switch and actuator. Always test the function with a connected evaluation device. The safety function may only be checked by qualified personnel. Dimensions in mm 14,4 14,4 26,4 Operating Manual PSEN ma1.4-51 M12/8-0.15m | 19 22185-EN-07... -
Page 20: Technical Details
In accordance with the standard EN 60947-5-2 EN 60947-5-2 Frequency 10 - 55 Hz 10 - 55 Hz Amplitude 1 mm 1 mm Shock stress Acceleration Duration 11 ms 11 ms Airgap creepage Pollution degree Operating Manual PSEN ma1.4-51 M12/8-0.15m | 20 22185-EN-07... - Page 21 Where standards are undated, the 2015-09 latest editions shall apply. Use with ambient temperatures between -28 °C and -10 °C When using the actuator PSENma1.4-10 please note the reduced assured operating dis- tance of 7 mm with a minimum ambient temperature of -28 °C. Operating Manual PSEN ma1.4-51 M12/8-0.15m | 21 22185-EN-07...
-
Page 22: Safety Characteristic Data
M12, 8-pin, socket Open cable 540319 540320 10 m 540321 20 m 540333 30 m 540326 PSEN cable M12-8af Angled, M12, 8-pin, socket Open cable 540322 540323 10 m 540324 30 m 540325 Operating Manual PSEN ma1.4-51 M12/8-0.15m | 22 22185-EN-07... -
Page 23: Ec Declaration Of Conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma- chinery of the European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany UKCA-Declaration of Conformity This product(s) complies with following UK legislation: Supply of Machinery (Safety) Regu- lation 2008. - Page 24 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
