Summary of Contents for Pilz PSEN 2.1p-20

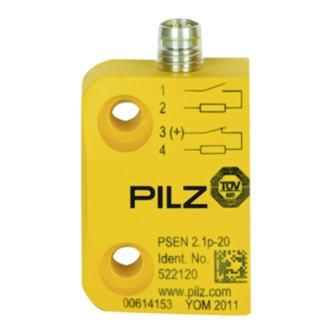

- Page 1 PSEN 2.1p-20 PSEN sensor technology Operating Manual-1004287-EN-04...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Requirements and connection to evaluation devices ............10 Installation ..........................12 Adjustment ..........................13 Periodic test ..........................14 Dimensions in mm .........................14 Technical details ........................15 Safety characteristic data......................16 Order reference ........................17 System ............................17 Accessories..........................17 EC declaration of conformity ....................19 UKCA-Declaration of Conformity ..................19 Operating Manual PSEN 2.1p-20 1004287-EN-04... -
Page 4: Introduction
PSEN 2.1p-20 Introduction Validity of documentation This documentation is valid for the product PSEN 2.1p-20. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN 2.1p-20 1004287-EN-04... -
Page 6: Safety Regulations
Disposal In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN 2.1p-20 1004287-EN-04... -
Page 7: For Your Safety
The N/O contact is closed and the N/C contact is opened. The safety switch is designed for applications in series connections. Operate the PSEN 2.1p-20 in conjunction with the following components: Actuator PSEN 2.1-20 (see... -
Page 8: Block Diagram
Block diagram Actuator Safety switch Magnet Operating distances (mm) omin Legend Assured operating distance Min. operating distance omin Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 15]. Operating Manual PSEN 2.1p-20 1004287-EN-04... -
Page 9: Lateral And Vertical Offset
Protect the safety switch's electrical connections from corrosion. The safety contacts are not short circuit-proof. UL requirement: the supply voltage must be provided via a Class 2 power supply. Operating Manual PSEN 2.1p-20 1004287-EN-04... -
Page 10: Pin Assignment
[3+] black Requirements and connection to evaluation devices For use of PSEN 2.1p-20 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN 2.1p-20 either with a certified Pilz evaluation device or with an evaluation device with defined properties... - Page 11 33 34 43 44 11 12 21 22 31 32 41 11 12 21 22 33 34 43 44 PSENmag Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device Operating Manual PSEN 2.1p-20 | 11 1004287-EN-04...
-
Page 12: Installation
PSEN 2.1p-20 Examples for connection to Pilz evaluation devices: PNOZmulti PSENmag PSEN i1 brown white blue black Legend I0 Input OSSD I1 Input OSSD T1, T2 Test pulse outputs Installation CAUTION! Potential loss of safety function due to changed device properties The unit's properties may be affected if installed in an environment contain- ing electrically or magnetically conductive material. -
Page 13: Adjustment
Technical details [ 15]) can only be achieved by using the Pilz connection leads available as an accessory. If possible, do not install the safety switch and actuator on to ferromagnetic material. Changes to the operating distances are to be expected. In this case, use the spacer (see Order reference [ 18]). -
Page 14: Periodic Test
Carry out a monthly function test on the safety switch and actuator. Always test the function with the PSEN i1 interface and connected evaluation device. The safety function may only be checked by qualified personnel. Dimensions in mm Operating Manual PSEN 2.1p-20 | 14 1004287-EN-04... -
Page 15: Technical Details
Duration 11 ms Airgap creepage Pollution degree Rated insulation voltage 25 V Rated impulse withstand voltage 0,33 kV Protection type Housing IP65, IP67 Connector IP67 Operating distances Assured operating distance Sao 8 mm Operating Manual PSEN 2.1p-20 | 15 1004287-EN-04... -
Page 16: Safety Characteristic Data
You must comply with the safety characteristic data in order to achieve the required safety level for your plant/machine. B10d in accordance with EN ISO 13849-1: 2015 TM [year] in accordance with EN ISO and EN 62061 13849-1:2015 2.000.000 Operating Manual PSEN 2.1p-20 | 16 1004287-EN-04... -
Page 17: Order Reference
PSEN 2.1p-20/PSEN Magnetic safety switch, actu- 4-pin M8 male connector 502220 2.1-20 /8mm/1unit ator cube, with assured oper- ating distance 8 mm PSEN 2.1p-20 /8mm 1 Magnetic safety switch 4-pin M8 male connector 522120 switch PSEN 2.1-20/1actuator Actuator cube, with assured... - Page 18 Product type Features Order no. PSEN i1 Interface for 4 Interface PSEN i1 for connecting and evaluating several safety 535110 PSEN 2 switches PSEN ma PDP67 F 8DI ION Decentralised input module IP67 for PNOZmulti 773600 Operating Manual PSEN 2.1p-20 | 18 1004287-EN-04...
-
Page 19: Ec Declaration Of Conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma- chinery of the European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany UKCA-Declaration of Conformity This product(s) complies with following UK legislation: Supply of Machinery (Safety) Regu- lation 2008. - Page 20 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
