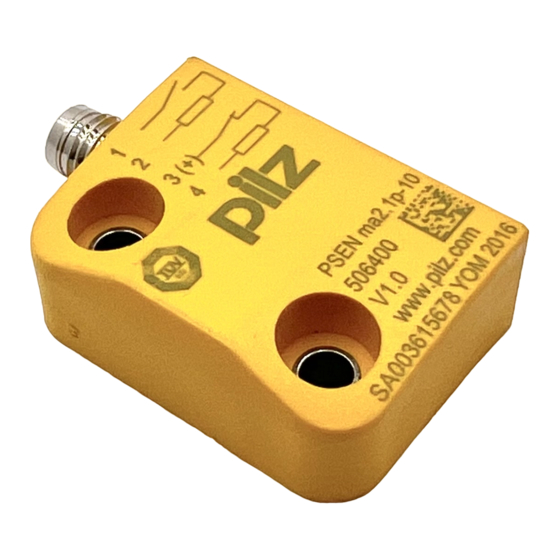

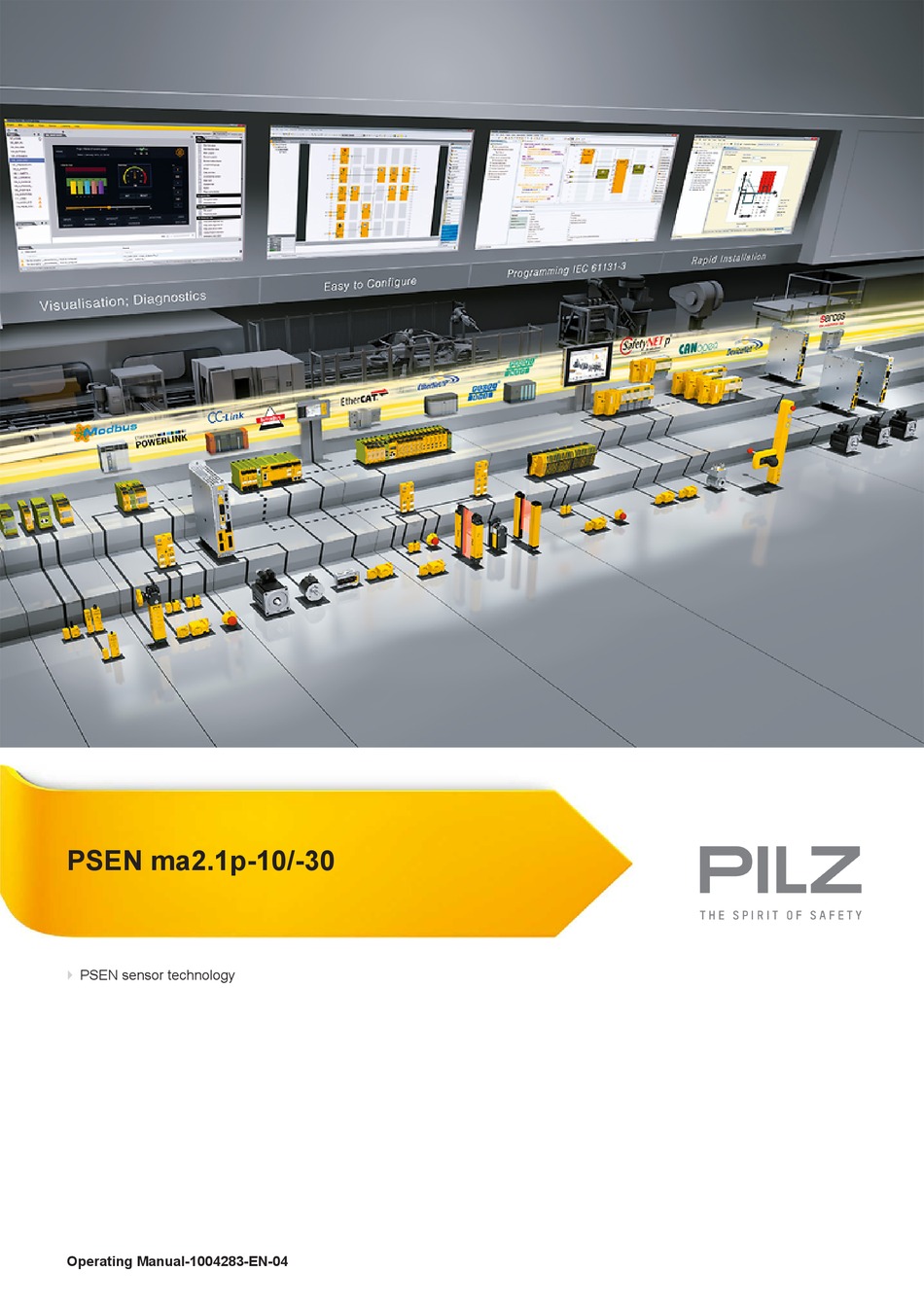

- Page 1 PSEN ma2.1p-10/-30 PSEN sensor technology Operating Manual-1004283-EN-04...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Requirements and connection to evaluation devices ............10 Installation ..........................13 Adjustment ..........................14 Periodic test ..........................15 Dimensions in mm .........................15 Technical details ........................16 Safety characteristic data......................18 Order reference ........................18 System ............................18 Accessories..........................19 EC declaration of conformity ....................20 UKCA-Declaration of Conformity ..................20 Operating Manual PSEN ma2.1p-10/-30 1004283-EN-04... -
Page 4: Introduction
PSEN ma2.1p-10/-30 Introduction Validity of documentation This documentation is valid for the product PSEN ma2.1p-10/-30. It is valid until new docu- mentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
The following is deemed improper use in particular Any component, technical or electrical modification to the product, Use of the product outside the areas described in this operating manual, Use of the product outside the technical details (see Technical details [ 16]). Operating Manual PSEN ma2.1p-10/-30 1004283-EN-04... -
Page 6: Safety Regulations
Damage can be attributed to not having followed the guidelines in the manual, Operating personnel are not suitably qualified, Any type of modification has been made (e.g. exchanging components on the PCB boards, soldering work etc.). Operating Manual PSEN ma2.1p-10/-30 1004283-EN-04... -
Page 7: Disposal
The N/O contact is closed and the N/C contact is opened. The safety switch can be used in series connections. Operate the PSEN ma2.1p-10/-30 in conjunction with the following components: Actuator PSEN 2.1-10(see Order reference [... -
Page 8: Block Diagram
Block diagram Actuator Safety switch Magnet Operating distances (mm) omin Legend Assured operating distance Min. operating distance omin Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 16]. Operating Manual PSEN ma2.1p-10/-30 1004283-EN-04... -
Page 9: Lateral And Vertical Offset
PSEN ma2.1p-10/-30 Lateral and vertical offset Legend [1] Lateral offset [2] Vertical offset Safety switch PSEN ma2.1p-10 Assured operating distance S in mm Lateral offset Vertical offset The stated values are valid at a temperature of 20 °C. Safety switch PSEN ma2.1p-30... -
Page 10: Wiring
[3+] black Requirements and connection to evaluation devices For use of PSEN ma2.1p-10/-30 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN ma2.1p-10/-30 either with a certified Pilz evaluation device or with an evaluation device with defined properties Operating Manual PSEN ma2.1p-10/-30... - Page 11 PSEN ma2.1p-10/-30 Certified Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring – PNOZ e3.1p, PNOZ e3vp – PNOZ e5.13p PNOZmulti for safety gate monitoring Configure the switch in the PNOZmulti Configurator with switch type 2. PSS for safety gate monitoring with standard function block SB064, SB066 or FS_Safety Gate...
- Page 12 33 34 43 44 11 12 21 22 31 32 41 11 12 21 22 33 34 43 44 PSENmag Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device Operating Manual PSEN ma2.1p-10/-30 | 12 1004283-EN-04...
-
Page 13: Installation
PSEN ma2.1p-10/-30 Examples for connection to Pilz evaluation devices: PNOZmulti PSENmag PSEN i1 brown white blue black Legend I0 Input OSSD I1 Input OSSD T1, T2 Test pulse outputs Installation CAUTION! Potential loss of safety function due to changed device properties The unit's properties may be affected if installed in an environment contain- ing electrically or magnetically conductive material. -
Page 14: Adjustment
The protection type (see Technical details [ 16]) can only be achieved by using the Pilz connection leads available as an accessory. Adjustment The safety switch may only be used with the corresponding actuator PSEN 2.1-10. Always test the function with series connections with the PSEN i1 interface and connec- ted evaluation device. -
Page 15: Periodic Test
Always test the function with series connections with the PSEN i1 interface and connec- ted evaluation device. Always test the function with single connections with a connected evaluation device. The safety function may only be checked by qualified personnel. Dimensions in mm Operating Manual PSEN ma2.1p-10/-30 | 15 1004283-EN-04... -
Page 16: Technical Details
10 - 55 Hz 10 - 55 Hz Amplitude 1 mm 1 mm Shock stress In accordance with the standard EN 60947-5-2 EN 60947-5-2 Acceleration Duration 11 ms 11 ms Airgap creepage Pollution degree Operating Manual PSEN ma2.1p-10/-30 | 16 1004283-EN-04... - Page 17 13 mm 13 mm Weight of safety switch 20 g 20 g Weight of actuator 20 g 20 g Weight 40 g 40 g Where standards are undated, the 2015-09 latest editions shall apply. Operating Manual PSEN ma2.1p-10/-30 | 17 1004283-EN-04...
-
Page 18: Safety Characteristic Data
6 mm PSEN ma2.1p-10/3mm/ Magnetic safety switch 4-pin M8 male connector 506400 1switch PSEN ma2.1p-30/6mm/ Magnetic safety switch 4-pin M8 male connector 506402 1switch PSEN 2.1-10 / 1 actu- Actuator 512110 ator Operating Manual PSEN ma2.1p-10/-30 | 18 1004283-EN-04... -
Page 19: Accessories
Product type Features Order no. PSEN Winkel / bracket Mounting bracket 532110 PSEN spacer Spacer 534310 PSEN reverse spacer Spacer 534320 PSEN screw M4x16 10pcs Screws made of high-grade steel with one-way slot 540310 Operating Manual PSEN ma2.1p-10/-30 | 19 1004283-EN-04... -
Page 20: Ec Declaration Of Conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma- chinery of the European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany UKCA-Declaration of Conformity This product(s) complies with following UK legislation: Supply of Machinery (Safety) Regu- lation 2008. - Page 21 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
