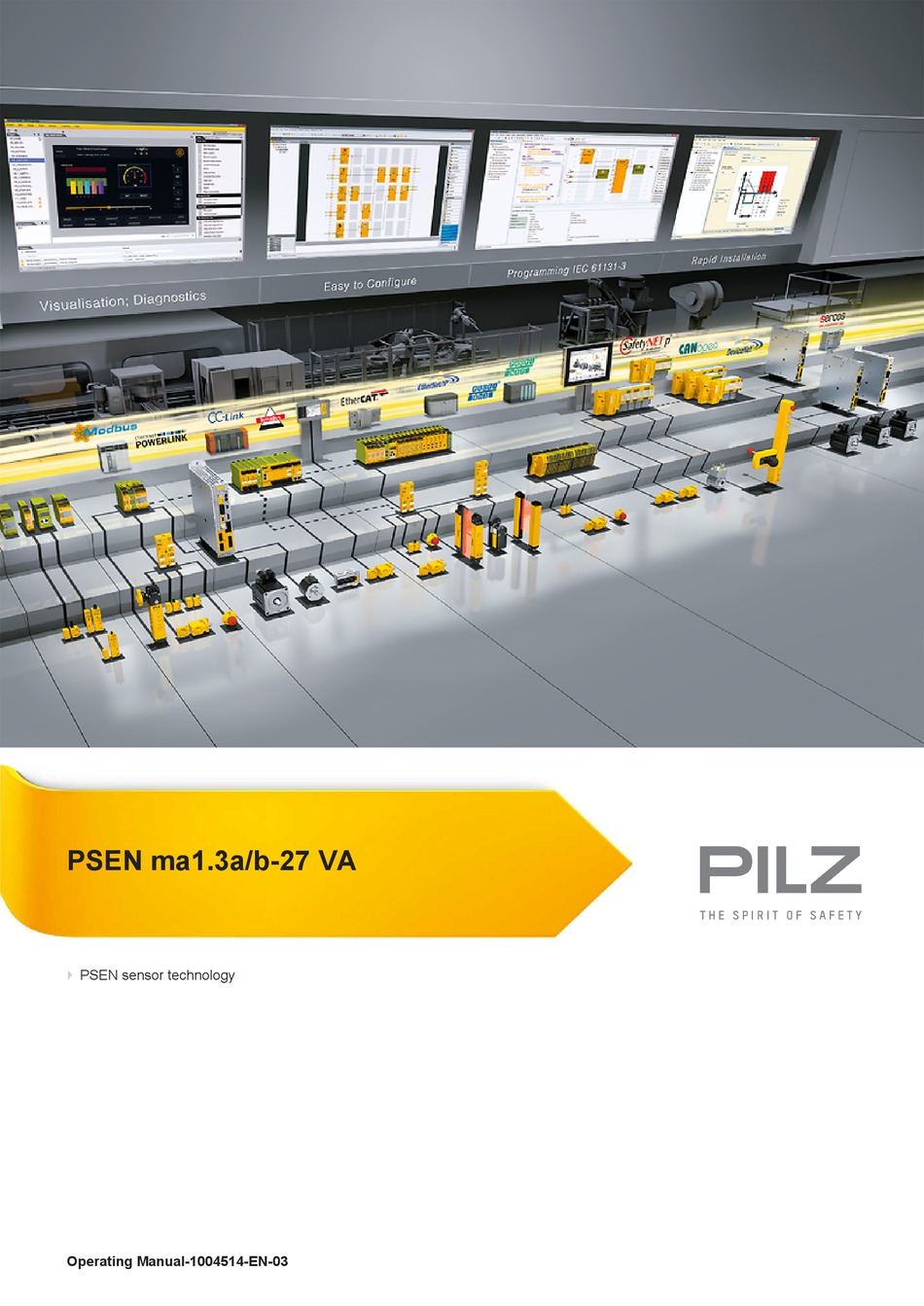

- Page 1 PSEN ma1.3a/b-27 VA PSEN sensor technology Operating Manual-1004514-EN-03...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Contents Introduction ..........................4 Validity of documentation ......................4 Using the documentation ......................4 Definition of symbols .........................4 Safety ............................5 Intended use ..........................5 Safety regulations ........................6 Safety assessment........................6 Use of qualified personnel......................6 Warranty and liability.........................6 Disposal ............................6 For your safety ..........................7 Unit features ...........................7 Function description ......................7 Block diagram ...........................8 Operating distances ........................8... -
Page 4: Introduction
PSEN ma1.3a/b-27 VA Introduction Validity of documentation This documentation is valid for the product PSEN ma1.3a/b-27 VA. It is valid until new doc- umentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. Using the documentation This document is intended for instruction. -
Page 5: Safety
PSEN ma1.3a/b-27 VA INFORMATION This gives advice on applications and provides information on special fea- tures. Safety Intended use The safety function of the safety switch is: The safety contacts open when the actuator is removed beyond the assured release dis- tance s or when the actuator is not detected. -
Page 6: Safety Regulations
PSEN ma1.3a/b-27 VA Safety regulations Safety assessment Before using a device, a safety assessment in accordance with the Machinery Directive is required. The product as an individual component fulfils the functional safety requirements in accord- ance with EN ISO 13849 and EN 62061. However, this does not guarantee the functional safety of the overall plant/machine. -
Page 7: For Your Safety
PSEN ma1.3a/b-27 VA For your safety WARNING! Loss of safety function due to manipulation of the interlocking device Manipulation of the interlocking device may lead to serious injury and death. – You should prevent any possibility of the interlocking device being manipulated through the use of a spare actuator. -
Page 8: Block Diagram
PSEN ma1.3a/b-27 VA Block diagram Safety switch Actuator Magnet Operating distances (mm) omin Legend Assured operating distance Min. operating distance omin Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 17]. Operating Manual PSEN ma1.3a/b-27 VA 1004514-EN-03... -
Page 9: Lateral And Vertical Offset
PSEN ma1.3a/b-27 VA Lateral and vertical offset Actuator PSEN ma1.3-08/VA Legend [1] Lateral offset [2] Vertical offset [3] Sensing faces Assured operating distance S in mm Lateral offset Vertical offset The stated values are valid at a temperature of 20 °C. Wiring Information given in the Technical details [... -
Page 10: Pin Assignment
For use of PSEN ma1.3a/b-27 VA in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN ma1.3a/b-27 VA either with a certified Pilz evaluation device or with an evaluation device with defined properties Certified Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring –... - Page 11 PSEN ma1.3a/b-27 VA PNOZsigma for safety gate monitoring – PNOZ s3 – PNOZ s4 – PNOZ s5 PNOZ X for safety gate monitoring – PNOZ X2, PNOZ X2.5P, PNOZ X2.7P, PNOZ X2.8P, PNOZ X2.9P, PNOZ X2C – PNOZ X3, PNOZ X3.1, PNOZ X3P, PNOZ X3.10P –...
- Page 12 11 12 11 12 21 22 33 34 43 44 PSENmag Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device Examples for connection to Pilz evaluation devices: PNOZ s3 PSEN ix1 PSENmag Brown White Blue Black Operating Manual PSEN ma1.3a/b-27 VA...
-
Page 13: Installation
PSEN ma1.3a/b-27 VA PNOZmulti PSEN ix1 PSENmag Brown White Blue Black Auxiliary contact with LED The auxiliary contact and the LED indicate the status of the safety contacts. Actuator in the response range Safety contacts and auxili- ary contact Closed lights Open PSENmag... - Page 14 PSEN ma1.3a/b-27 VA CAUTION! Potential loss of safety function due to changed device properties The unit's properties may be affected if installed in an environment contain- ing electrically or magnetically conductive material. – Please check the operating distances and the assured release dis- tance.
- Page 15 PSEN ma1.3a/b-27 VA The assured operating distance S and the assured release distance S must be tested under real conditions. Do not apply any installation tools (e.g. Pliers) on the surfaces of the switch. Protect the safety switch from UV light or direct sunlight. Installation of safety switch Slide the switch through the hole in the mounting surface with the sensing face to-...
-
Page 16: Adjustment
PSEN ma1.3a/b-27 VA Adjustment The safety switch may only be used with the corresponding actuator PSEN ma1.3-08 VA. Always test the function with the PSEN ix1 interface and connected evaluation device. The stated operating distances (see Technical details [ 17]) only apply when the safety switch and actuator are installed according to the specifications in Installation [ 14]. -
Page 17: Technical Details
PSEN ma1.3a/b-27 VA Technical details General 506241 506243 Certifications CE, EAC, ECOLAB, TÜV, UKCA, CE, EAC, ECOLAB, TÜV, UKCA, UL/cUL UL/cUL Sensor's mode of operation Magnetic Magnetic Coding level in accordance with EN ISO 14119 Design in accordance with EN ISO 14119 Classification in accordance with EN 60947-5-3... - Page 18 PSEN ma1.3a/b-27 VA Environmental data 506241 506243 Shock stress Acceleration Duration 11 ms 11 ms Airgap creepage Pollution degree Rated insulation voltage 30 V 30 V Rated impulse withstand voltage 0,8 kV 0,8 kV Protection type Housing IP67, IP69 IP67, IP69 Operating distances 506241 506243...
-
Page 19: Safety Characteristic Data
PSEN ma1.3a/b-27 VA Safety characteristic data NOTICE You must comply with the safety characteristic data in order to achieve the required safety level for your plant/machine. Operating mode B10d in accordance with EN ISO TM [year] in accordance with EN 13849-1: 2015 and EN 62061 ISO 13849-1:2015 2-channel, ≤... -
Page 20: Ec Declaration Of Conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma- chinery of the European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany UKCA-Declaration of Conformity This product(s) complies with following UK legislation: Supply of Machinery (Safety) Regu- lation 2008. - Page 21 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
