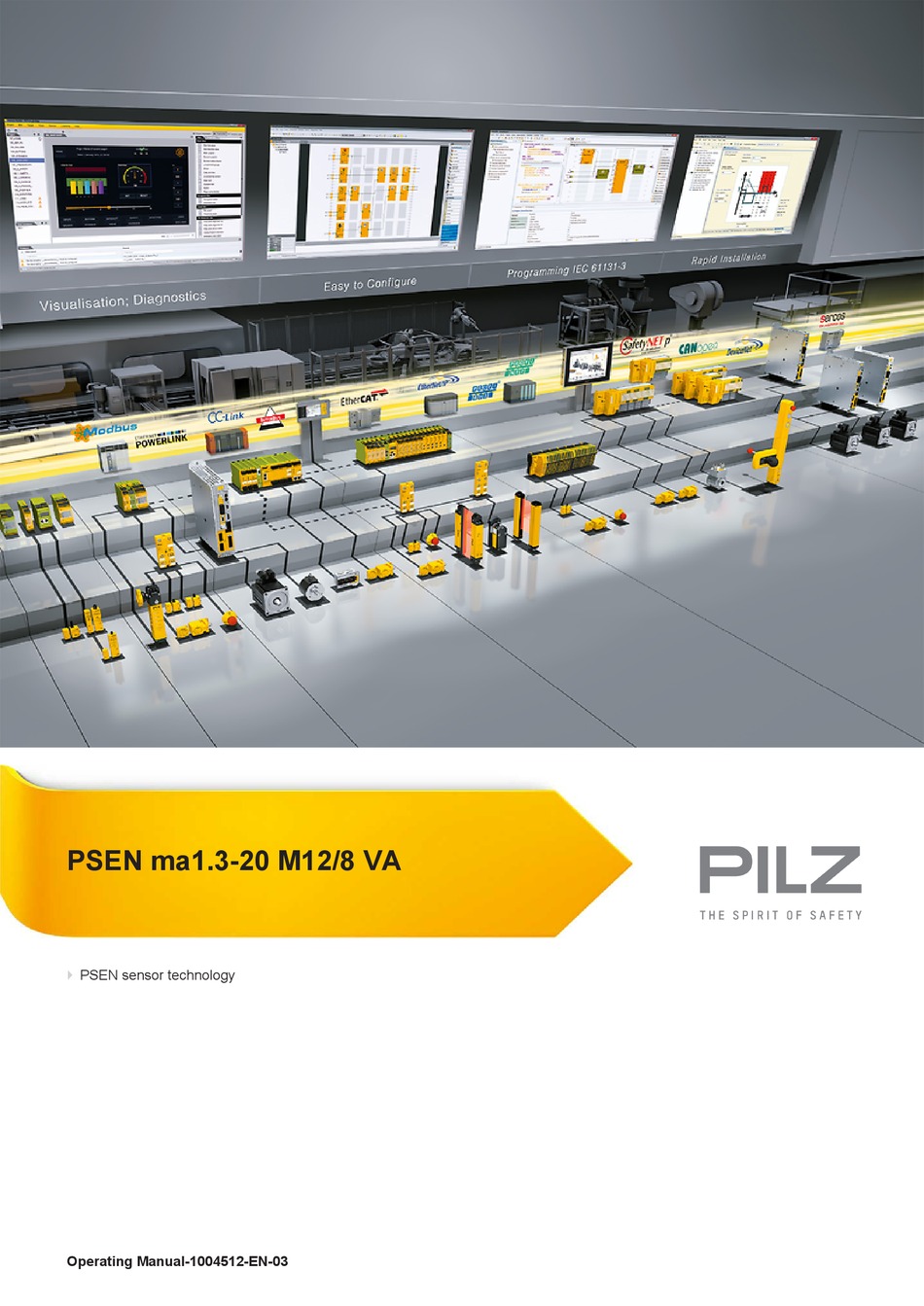

- Page 1 PSEN ma1.3-20 M12/8 VA PSEN sensor technology Operating Manual-1004512-EN-03...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Requirements and connection to evaluation devices ............10 Installation ..........................12 Adjustment ..........................15 Periodic test ..........................15 Dimensions in mm .........................15 Technical details ........................16 Safety characteristic data......................18 Order reference ........................18 System ............................18 Accessories..........................18 EC declaration of conformity ....................19 UKCA-Declaration of Conformity ..................19 Operating Manual PSEN ma1.3-20 M12/8 VA 1004512-EN-03... -
Page 4: Introduction

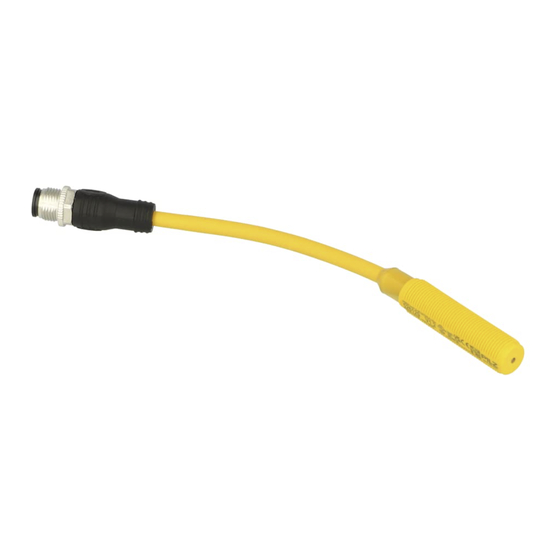

PSEN ma1.3-20 M12/8 VA Introduction Validity of documentation This documentation is valid for the product PSEN ma1.3-20 M12/8 VA. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
EN ISO 13849 and EN 62061. However, this does not guarantee the functional safety of the overall plant/machine. To achieve the relevant safety level of the overall plant/ machine’s required safety functions, each safety function needs to be considered separ- ately. Operating Manual PSEN ma1.3-20 M12/8 VA 1004512-EN-03... -
Page 6: Use Of Qualified Personnel
– If substitute actuators are used, these must be installed as described under Installation [ 13]. – If the original actuators are replaced with substitute actuators, the ori- ginal actuators must be destroyed before disposal. Operating Manual PSEN ma1.3-20 M12/8 VA 1004512-EN-03... -
Page 7: Unit Features
If the actuator is within the response range (safety gate closed), the safety contacts and the auxiliary contact on the safety switch are closed. Operate the PSEN ma1.3-20 M12/8 VA in conjunction with the following components: Actuator PSEN ma1.3-08 VA (see... -
Page 8: Operating Distances
Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 16]. Lateral and vertical offset Actuator PSEN ma1.3-08/VA Legend [1] Lateral offset [2] Vertical offset [3] Sensing faces Operating Manual PSEN ma1.3-20 M12/8 VA 1004512-EN-03... -
Page 9: Wiring
The colour marking for the connection lead only applies for the cable that Pilz supplies as an accessory The safety switch is shown in an unoperated condition. Assignment of Pink the 8-pin con- Green nector White Yellow Brown Blue Grey Operating Manual PSEN ma1.3-20 M12/8 VA 1004512-EN-03... -
Page 10: Requirements And Connection To Evaluation Devices
– can be connected in series – may not be used for safety circuits Requirements and connection to evaluation devices For use of PSEN ma1.3-20 M12/8 VA in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN ma1.3-20 M12/8 VA... - Page 11 (s. operating manual for the relevant evaluation device). Evaluation device PSENmag Input circuit Input circuit Fig.: Dual-channel connection PSEN ma1.3-20 M12/8 VA to the input circuits of an evaluation device Operating Manual PSEN ma1.3-20 M12/8 VA | 11 1004512-EN-03...
-
Page 12: Installation
PSEN ma1.3-20 M12/8 VA Examples for connection to Pilz evaluation devices: PSENmag PNOZ s3 White Yellow Pink Green PNOZmulti PSENmag White Yellow Pink Green Legend Input OSSD Input OSSD T0, T1 Test pulse outputs Installation The unit can be installed in any position. Safety switches and actuators must be installed so that the sensing face of the safety switch is exactly opposite the sensing face of the actuator. - Page 13 Prevent the safety switch and actuator being exposed to heavy shock or vibration. Make sure that the safety switch and actuator cannot be used as an end stop. Circumvention of the safety switch in a reasonably foreseeable manner must be preven- ted. Operating Manual PSEN ma1.3-20 M12/8 VA | 13 1004512-EN-03...
- Page 14 Do not apply any installation tools (e.g. Pliers) on the surfaces of the switch. The protection type (see Technical details [ 16]) is only achieved when Pilz connec- tion cables are used - these are available as an accessory - and when the connector torque is complied with (see Technical details).
-
Page 15: Adjustment
The safety functions should be checked after initial commissioning and each time the plant/machine is changed. The safety functions may only be checked by qualified personnel. Dimensions in mm Safety switch M12x1 Actuator PSEN ma1.3-08/VA M12x1 Operating Manual PSEN ma1.3-20 M12/8 VA | 15 1004512-EN-03... -
Page 16: Technical Details
Max. operating height above sea level 4000 m EN 60947-5-3 Vibration In accordance with the standard EN 60947-5-2 Frequency 10 - 55 Hz Amplitude 1 mm Shock stress Acceleration Duration 11 ms Airgap creepage Pollution degree Operating Manual PSEN ma1.3-20 M12/8 VA | 16 1004512-EN-03... - Page 17 12 mm Width 12 mm Depth 25 mm Weight of safety switch 20 g Weight of actuator 10 g Weight 30 g Where standards are undated, the 2017-09 latest editions shall apply. Operating Manual PSEN ma1.3-20 M12/8 VA | 17 1004512-EN-03...
-
Page 18: Safety Characteristic Data
533190 M12-8sf VA 5m male con- nector, straight, stainless steel threaded ring PSEN cable 10 m M12, 8-pin fe- 533191 M12-8sf VA 10m male con- nector, straight, stainless steel threaded ring Operating Manual PSEN ma1.3-20 M12/8 VA | 18 1004512-EN-03... -
Page 19: Ec Declaration Of Conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma- chinery of the European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany UKCA-Declaration of Conformity This product(s) complies with following UK legislation: Supply of Machinery (Safety) Regu- lation 2008. - Page 20 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
