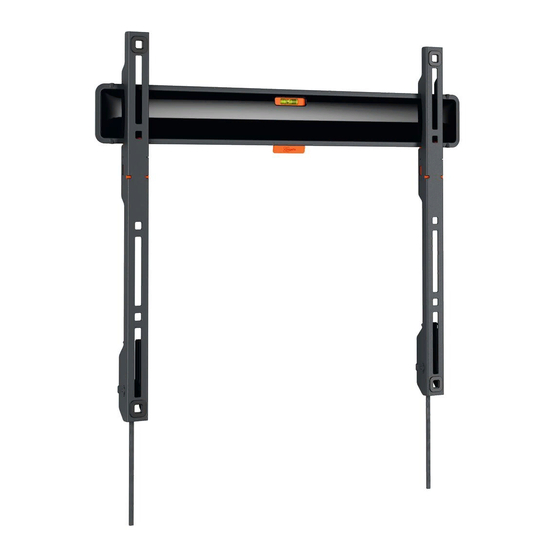

TVM 3200 Series
TVM 3400 Series
TVM 3600 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all
about safe, efficient installation, and how to use your new mount.
TVM 3200/3400/3600 Series - English
1
Advertisement
Related Manuals for vogel's TVM 3200 Series
Summary of Contents for vogel's TVM 3200 Series
- Page 1 TVM 3200 Series TVM 3400 Series TVM 3600 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice.
- Page 2 Stay safe Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. Don’t dare risk it… Read all ...
-
Page 3: What's In Your Box
What’s in your box? Something missing? Make sure your packaging has everything in place: A. Wall mount C. Strips D. Safety instructions E. Bolts for fastening strips on TV (see contents below) F. Spacers ... - Page 4 Contents of the TV fasteners kit: TVM 3200 Series: TVM 3400/3600 Series: 4x M4*12mm bolts 4x M6*12mm bolts 4x M4*25mm bolts 4x M6*25mm bolts 4x M6*12mm bolts 4x M6*35mm bolts 4x M6*25mm bolts 4x M8*12mm bolts ...
- Page 5 Socket wrench Pencil Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection Safety shoes TVM 3200/3400/3600 Series - English...
- Page 6 Ready… set… get installing! Step 1: Attach the strips to the TV 1. Put the protective TV patches Ⓛ on the strips Ⓒ . 2. Put the TV carefully on a soft clean surface without any obstacles. 3. Screw the strips Ⓒ on to the TV with the bolts Ⓔ . Make sure the strips Ⓒ are at the same height and do not stick out.
- Page 7 Make sure that the release cords are at the bottom of the TV when attaching the strips. Refer to the user manual of your TV for the correct bolt sizes. Make sure bolts and washers are positioned correctly. Use spacers where needed. TVM 3200/3400/3600 Series - English...
- Page 8 Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete / Brick wall Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.
- Page 9 How deep do you drill? Check the length of the screw (not the plug!) to find the right depth – this stops things from breaking. 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ , washers Ⓙ and plugs Ⓘ . Use the spirit level to level the wall mount.
- Page 10 4. Click the cover Ⓚ into place. Simple! Walls with wooden studs TVM 3200 and TVM 3210 Series are not suitable for mounting on stud walls, without special mounting material. Ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact for more information.
- Page 11 1. Don’t just guess! Always use a stud finder to determine the position of studs. 2. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template. Don’t destroy your belongings! The wall mount must always be attached to the studs. ...
- Page 12 4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ , washers Ⓙ . Use the spirit level to level the wall mount. Lubricate the screws for easy screwing in. 5. Click the cover Ⓚ into place. Simple! TVM 3200/3400/3600 Series - English...
- Page 13 Other wall type / I don’t know my wall type If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact.
- Page 14 3. Tuck the excess release cords between the wall and the TV to hide them. Job done now! Enjoy watching your TV! TVM 3200/3400/3600 Series - English...
- Page 15 Handy features Easy cable access Stop struggling! Enjoy quick access to your cable connectors easily: 1. Pull the release cords to unlock the TV. 2. Tilt the TV so the cable access stands fold out. 3. Install the cables to the TV. ...
- Page 16 Removing your TV 1. Pull the release cords to unlock the TV. 2. Remove the TV, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. Tell us how you feel! Your opinion matters more than you might think.
-
Page 17: Simple Troubleshooting
Click So, it might be the case that here to contact Vogel's Consumer the correct bolt size is not Care. included… you’re just too advanced! ‘I have a lot of leftover... - Page 18 For new release cords, please click here to contact Vogel's Consumer Care. ‘My wall screws have You might not be drilling deep Use another hole in the wall plate snapped!’...
- Page 19 Use all wall screws and four bolts for securing your TV. use?’ Vogel's offers a complete assembly kit with all mounting materials included in the box, for both your TV and wall. You need all the materials from the wall mounting kit,...
- Page 20 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! TVM 3200/3400/3600 Series - English...
- Page 21 If applicable, if the holes in the wall have not been properly drilled in accordance with the Vogel's installation instructions for the applicable wall type; If the product has been altered or repaired by someone other than Vogel’s;...
