2023-08-17 08:51

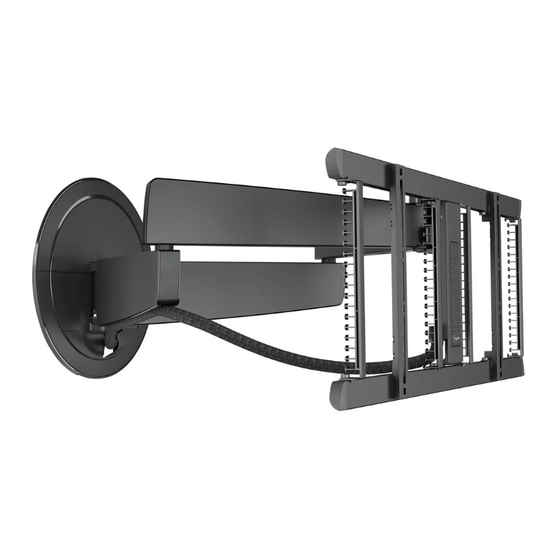

TVM 7675 (PRO) Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep
reading to learn all about safe, efficient installation, and how to use your new
mount.
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at
substantial risk.
Don't dare risk it... Read all
Vogel's recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert.
https://manuals.vogels.com/en-us/tvm7675_pro.html
TVM 7675 (PRO) Series
Additional tools
Click to download the app
(https://www.vogels.com/en-us/c/tvmountguide)
Click to watch
(https://youtu.be/TBG9Af-wyWE)
1/30
Advertisement
Related Manuals for vogel's TVM 7675 (PRO) Series
Summary of Contents for vogel's TVM 7675 (PRO) Series
- Page 1 2023-08-17 08:51 TVM 7675 (PRO) Series TVM 7675 (PRO) Series Additional tools Full Installation Guide Everything you need to get your TV safely on the wall, in no time Click to download the app (https://www.vogels.com/en-us/c/tvmountguide) Before you start Click to watch …we just wanted to say thanks for choosing Vogel’s.
-
Page 2: What's In Your Box
2023-08-17 08:51 TVM 7675 (PRO) Series Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation. Please consult the manual for your TV and ensure that the weight and size of the TV is within the maximum weight and size limits specified for this product, and that the TV mounting bolts used are of a suitable length and diameter. - Page 3 2023-08-17 08:51 TVM 7675 (PRO) Series S. Interface extension strips T. Cable sleeve U. HDMI cable – 2m V. Power cable and adaptor including international socket attachments W. Infra-red receiver X. Infra-red remote control – including 2x AAA batteries Y. Interface cover Z.
-
Page 4: Additional Tools
2023-08-17 08:51 TVM 7675 (PRO) Series Spirit level Stud finder Socket wrench no.13 Crosshead screwdriver Drilling machine For stone walls: 20 mm / 0.8” (⌀ 5 mm / ⌀ 13/64”) masonry drill bit (for predrilling) 70 mm / 2.8” (⌀ 10 mm / ⌀ 25/64”) masonry drill bit For walls with wooden studs: 50 mm / 2”... - Page 5 2023-08-17 08:51 TVM 7675 (PRO) Series Click to download the app Click to watch (https://www.vogels.com/en- (https://youtu.be/TBG9Af-wyWE) us/c/tvmountguide) Ready… set… get installing! Step 1: Attach the interface to the TV 1. Carefully place the wall mount Ⓐ with the attached interface, and the TV face down on a clean surface without any obstacles.
- Page 6 2023-08-17 08:51 TVM 7675 (PRO) Series 3. Check the mounting holes on the TV screen. Adjust the dimensions of the interface accordingly, after loosening the pre-attached bolts with the Allen key. 4. Additionally, interface extension strips Ⓢ can be inserted into the top or bottom side of the vertical strips to increase the height of the interface.
- Page 7 2023-08-17 08:51 TVM 7675 (PRO) Series Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help: vogels.com/contact (http://www.vogels.com/contact) Make sure bolts and spacers are positioned correctly. Refer to the user manual of your TV for the correct mounting material.
- Page 8 2023-08-17 08:51 TVM 7675 (PRO) Series 20 mm / 0.8” (⌀ 5 mm / ⌀ 13/64”) masonry drill bit (for predrilling) 70 mm / 2.8” (⌀ 10 mm / ⌀ 25/64”) masonry drill bit The contents of the wall mounting kit Ⓗ Ⓘ Ⓙ...
- Page 9 2023-08-17 08:51 TVM 7675 (PRO) Series The cable hole should only be used to lead cables that come out of the wall through the wall mount. Do not use the cable hole to attach the wall mount to the wall.
- Page 10 2023-08-17 08:51 TVM 7675 (PRO) Series 5. Slide the wall plate cover Ⓚ onto the wall mount Ⓐ. To remove the cover plate, press the left tab and slide it off the wall mount. Wall with wooden studs If you are mounting your TV screen onto a concrete/brick wall, please follow the instructions in the Concrete/Brick wall section.
- Page 11 2023-08-17 08:51 TVM 7675 (PRO) Series Don’t just guess! The wall mount must always be attached to the studs. Always use a stud finder to determine the position of studs. Don’t destroy your belongings! 1. Determine where to hang your TV screen.
- Page 12 2023-08-17 08:51 TVM 7675 (PRO) Series 3. Attach the wall mount to the wall while making sure to: a. begin with the hole directly above the Vogel’s logo on the wall mount Ⓐ b. use the spirit level to level the wall mount c.
- Page 13 2023-08-17 08:51 TVM 7675 (PRO) Series Other wall type / I don’t know my wall type If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact...
- Page 14 2023-08-17 08:51 TVM 7675 (PRO) Series 2. Secure the interface to the wall mount with the saved thumbnut from step 1. https://manuals.vogels.com/en-us/tvm7675_pro.html 14/30...
- Page 15 2023-08-17 08:51 TVM 7675 (PRO) Series 3. Level the wall mount and the TV screen. Use a spirit level and the Allen key to correct the position. Tighten the thumbnut and the thumb bolt with the Allen key when finished.
- Page 16 2023-08-17 08:51 TVM 7675 (PRO) Series 4. Connect the following cables to the wall mount: a. Internal motor cable (attached to the bottom side of the wall mount arm) b. HDMI 2.0 (2 meter) cable c. Power adapter cable d. Infra-red eye cable (optional, when using the remote control) e.
- Page 17 2023-08-17 08:51 TVM 7675 (PRO) Series 6. Put the wall plate cover Ⓚ onto the wall mount and the interface cover Ⓨ onto the back of the interface. 7. Connect the power cable Ⓥ to the power outlet. 8. Your MotionMount is now ready to be used! https://manuals.vogels.com/en-us/tvm7675_pro.html...
- Page 18 2023-08-17 08:51 TVM 7675 (PRO) Series Need a long HDMI cable? Or a Cable Cover to hide your wall cables? Visit us online and order the right accessories directly through our website (https://www.vogels.com/en-gb/c/tv-bracket-accessories). Step 5: Connect to the MotionMount SIGNATURE app The Vogel’s MotionMount SIGNATURE app functions as a remote control for the Vogel’s TVM 7675 (PRO).
- Page 19 Receive support for your MotionMount Step 6: Set up the remote control The infrared remote control (IRC) is specially designed for Vogel's TVM 7675 (PRO). It features: 7 memory positions for your TV that match the preset positions in your MotionMount SIGNATURE app...
- Page 20 2023-08-17 08:51 TVM 7675 (PRO) Series 1. Connect the provided infrared eye cable to your TV. Make sure its infrared eye is in view. 2. Put the 2 AAA batteries in the battery compartment of the IRC. To configure a memory position: 1.
- Page 21 2023-08-17 08:51 TVM 7675 (PRO) Series Again, lifting your TV is a two-person job. Always get help. Overview of LED states If the MotionMount is The status light Is green Is off In an error condition Is red Accepting a command from the infrared remote Flashes once Accepting a ‘store preset’...
-
Page 22: Technical Specifications
2023-08-17 08:51 TVM 7675 (PRO) Series Technical specifications WiFi (2.4 GHz) Frequency 2402-2480 MHz 2412-2472 MHz Power output -0.4 dBm 19.98 dBm Antenna gain 2 dBi 3.7 dBi Please keep separation distance between the antenna and human body of at least 20cm. Operation is prohibited while within this range of exposure. - Page 23 Solution Just ask Vogel’s Consumer Care to request a service kit, and we’ll send everything you need. Click here (http://www.vogels.com/contact) to contact Vogel's Consumer Care. Problem My wall screws have snapped! Cause You might not be drilling deep enough…...
- Page 24 2023-08-17 08:51 TVM 7675 (PRO) Series The TV has not been specified Solution Install cable sleeve according to the mounting instructions and make sure that all cables to the TV are routed through the cable sleeve. Any slope to the wall must not exceed half a degree. If the wall is sloped more than half a degree, the mount must still be suspended vertically.
- Page 25 2023-08-17 08:51 TVM 7675 (PRO) Series Problem The MotionMount is not working at all. What can be the matter? Cause The LED on the wall plate is not lit: the mains adapter is not plugged in. The LED on the wall plate lights up red: the motor cable is not plugged in properly.
- Page 26 Which bolts or screws do I need to use? Vogel's offers a complete assembly kit with all mounting materials included in the box, for both your TV and wall. Vogel's offers a complete assembly kit with all mounting materials included in the box. Do you miss the correct bolts for your TV? Please contact your local Vogel's dealer.
- Page 27 2023-08-17 08:51 TVM 7675 (PRO) Series VESA is a standard pattern of mounting location holes on the back of a TV which allows many standard TV mounts to be easily fitted to your TV. What is the minimum screen size of the TV in combination with the wall mount? The minimum screen size is 40 inch (102 cm).
- Page 28 Apple iPadOS 13 and newer / iPad Pro, iPad Air 2 and newer, iPad mini 2019, iPad mini 4, 9.7-inch iPad 2017 and newer Android OS 9.0 and newer Note: Only the latest iOS and Android OS version is actively supported and tested by Vogel's. How many preset positions can be stored with the app and remote control? Up to seven preset positions can be stored.
- Page 29 2023-08-17 08:51 TVM 7675 (PRO) Series Can a soundbar or AV receiver be connected to the second HDMI connector in the wall plate? Yes. In this case, the HDMI cable between MotionMount and TV must be connected to the HDMI ARC (Audio Return Channel) socket on your TV (or TV connect box).
- Page 30 Vogel’s guarantee shall lapse in the following cases: If the product has not been installed or used in accordance with the instructions; If applicable, if the holes in the wall have not been properly drilled in accordance with the Vogel's installation instructions for the applicable wall type;...
