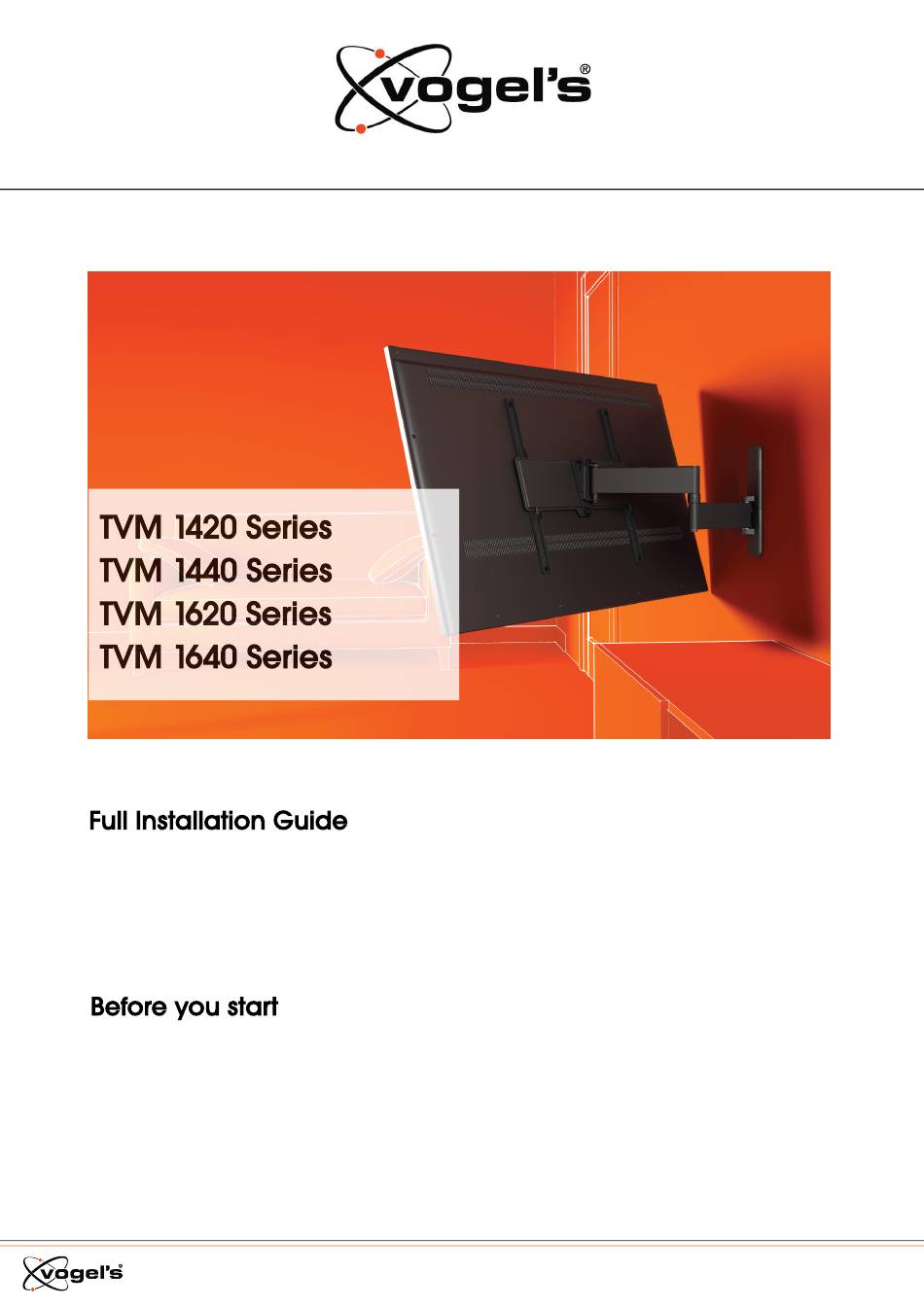

TVM 1420 Series
TVM 1440 Series
TVM 1620 Series
TVM 1640 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient
installation, and how to use your new mount.
TVM 1420/1440/1620/1640 Series English
1
Advertisement
Related Manuals for vogel's TVM 1420 Series
Summary of Contents for vogel's TVM 1420 Series
- Page 1 TVM 1420 Series TVM 1440 Series TVM 1620 Series TVM 1640 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice.
- Page 2 Stay safe Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. Don’t dare risk it… Read all Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert.
-
Page 3: What's In Your Box
What’s in your box? Something missing? Make sure your packaging has everything in place: A. Wall mount M. Cable strap(s) B. Interface bar N. Cable strap clip(s) C. Interface strips O. Spirit level D. Safety instructions P. Thumbnut E. Bolts for fastening strips on TV (see contents below) F. - Page 4 Got your tools ready? Don’t start without all the necessary tools: Crosshead screwdriver Drilling machine 10 mm or 25/64” concrete/brick drill (for concrete/brick walls only) 5 mm or 13/64” concrete/brick drill (for concrete/brick walls only) 5 mm or 13/64” wood drill (for wooden walls only) Stud finder (optional) Socket wrench no.
- Page 5 Ready… set… get installing! Step 1: Attach the strips to the TV 1. Put the TV carefully on a clean surface without any obstacles. 2. Screw the interface strips Ⓒ on to the TV with the bolts Ⓔ and with (optional) washers Ⓖ. Make sure the interface strips Ⓒ...
- Page 6 Refer to the user manual of your TV for the correct mounting material. 3. Place the interface bar Ⓑ in the designated spacing of the interface strips Ⓒ. Make sure the interface bar Ⓑ is placed in a centered position. 4.
- Page 7 Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete/Brick wall Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1.
- Page 8 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level to level the wall mount. Lubricate the screws for easy screwing in. 4. Place the covers Ⓚ. TVM 1420/1440/1620/1640 Series English...
- Page 9 Wooden wall with studs Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1. Don’t just guess! Always use a stud finder to determine the position of studs. 2.
- Page 10 4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ. Use the spirit level to level the wall mount. Lubricate the screws for easy screwing in. 5. Place the covers Ⓚ. TVM 1420/1440/1620/1640 Series English...
- Page 11 Other wall type/I don’t know my wall type If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact.
- Page 12 2. Attach the TV with the interface bar Ⓑ and strips Ⓒ to the wall mount Ⓐ. 3. Fasten the thumbnut Ⓟ. Make sure the TV is levelled, using the spirit level. Lifting your TV is a two-person job. Don’t be bold! Job done now! Enjoy watching your TV! Handy features Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV...
- Page 13 Tilt to avoid reflections 1. Loosen the two bolts on both sides with a 4 mm allen key; do not remove them completely. 2. Adjust the tilt angle. 3. Tighten the two bolts on both sides again. Be careful. This is a two-person job! Guide your cables 1.
- Page 14 Removing your TV 1. Remove the thumbnut Ⓟ. 2. Remove the TV, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. TVM 1420/1440/1620/1640 Series English...
- Page 15 Tell us how you feel! Your opinion matters more than you might think. It helps us make better products, and helps other customers make informed choices. Share your feedback, and sign up to win Vogel’s products! Simply visit vogels.com/review for sharing or the Terms and Conditions. Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com...
-
Page 16: Simple Troubleshooting
– it can be service kit, and we’ll send everything you need. hard to keep up sometimes. So, Click here to contact Vogel's Consumer Care. it might be the case that the correct bolt size is not included… you’re just too advanced! ‘I have a lot of leftover... - Page 17 TV and wall. Do you miss the correct bolts for your TV? Please contact your local Vogel's dealer. Click here to contact Vogel's Consumer Care. ‘Why do you use Fischer© plugs?’...
- Page 18 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! Guarantee Thanks again for choosing Vogel’s! Just like every product we make, your new purchase is made of durable materials and is based on a meticulous design.
