TVM 3460 Series
TVM 3660 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all
about safe, efficient installation, and how to use your new mount.
TVM 3460/3660 Series - English
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for vogel's TVM 3460 Series
Summary of Contents for vogel's TVM 3460 Series
- Page 1 TVM 3460 Series TVM 3660 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new mount.
- Page 2 Stay safe Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. Don’t dare risk it… Read all ...
-
Page 3: What's In Your Box

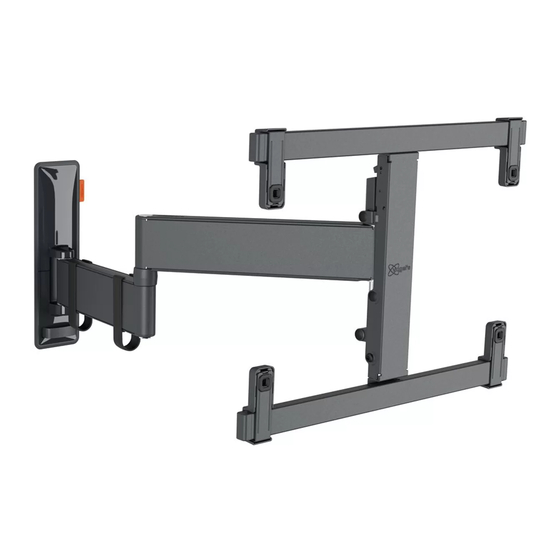

What’s in your box? Something missing? Make sure your packaging has everything in place: A. Wall mount B. Horizontal bars C. Interface clips D. Safety instructions E. Bolts for fastening clips on TV (see contents below) ... - Page 4 Contents of the TV fasteners kit: 4x M6*12mm bolts 4x M6*25mm bolts 4x M6*35mm bolts 4x M8*12mm bolts 4x M8*25mm bolts 4x M8*45mm bolts 4x M6 washer 4x spacer 10mm 4x spacer 5mm You just need four bolts to mount your TV.
- Page 5 Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection Safety shoes TVM 3460/3660 Series - English...
- Page 6 Ready… set… get installing! Step 1: Attach the clips to the TV 1. Carefully place the TV face down, on a soft clean surface without any obstacles. 2. Stick the protective TV patches Ⓛ onto the interface clips Ⓒ . Point the interface clips upwards or downwards, depending on the distance between the holes in the back of the TV (the VESA pattern).
- Page 7 4. For models where the thumbnuts are pre-attached: remove both thumbnuts Ⓟ from the horizontal bars Ⓑ . 5. Slide the lower horizontal bar Ⓑ through the designated spacing of the interface clips Ⓒ . Make sure the horizontal bar Ⓑ is placed in a centered position. Notice the holes on the side of this horizontal bar Ⓑ...
- Page 8 Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete / Brick wall Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.
- Page 9 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ , washers Ⓙ and plugs Ⓘ . Use the spirit level Ⓞ to level the wall mount. Lubricate the screws for easy screwing in. 4. Place the covers Ⓚ . TVM 3460/3660 Series - English...
- Page 10 Walls with wooden studs Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1. Don’t just guess! Always use a stud finder to determine the position of studs. ...
- Page 11 4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ . Use the spirit level Ⓞ to level the wall mount. Lubricate the screws for easy screwing in. 5. Place the covers Ⓚ . TVM 3460/3660 Series - English...
- Page 12 Other wall type / I don’t know my wall type If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact.
- Page 13 2. Position the bottom thumbnut Ⓟ through the hole in the wall mount Ⓐ and in the bottom bar Ⓑ . 3. Fasten both thumbnuts Ⓟ , optionally with an allen key. Make sure the TV is leveled, using the spirit level.
- Page 14 Vertical correction 1. Vertical correction: If the tilt option is not used and the screen still tilts downwards / upwards: tighten / loosen screw Ⓢ with an allen key until the screen is vertically leveled. 2. Horizontal correction: If one side of the TV is lower than the other, slightly loosen the bottom thumbnut Ⓟ...
- Page 15 Tilt to avoid reflections 1. Click the TiltAnchor™ button to release the TV from home position. 2. Adjust the tilt angle. Gently pull the top of the screen forward. Do not force the screen in the other direction. TVM 3460/3660 Series - English...
- Page 16 Guide your cables 1. Guide the cables. 2. Place the cable clip Ⓜ over the cables on the lower arm. 3. Place the wall cable clip Ⓝ over the cables on the wall plate. TVM 3460/3660 Series - English...
- Page 17 Removing your TV 1. Remove the lower thumbnut Ⓟ and loosen the upper thumbnut Ⓟ . 2. Remove the TV, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. Tell us how you feel! Your opinion matters more than you might think.
-
Page 18: Simple Troubleshooting
Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com www.vogels.com/contact facebook.com/ VogelsForSure/ instagram.com/ vogels_official/ www.youtube.com/ c/VogelsForSure Simple troubleshooting Found a problem you can’t fix? Don’t panic… try these! Problem Cause Solution ‘There are stains on the The stains are caused by the paper The stains are easy to arms of the wall mount’... - Page 19 FAQs ‘Where can I request the correct Whatever you need, simply contact your local Vogel's bolts for my TV (a service kit)?’ dealer or Vogel's. Click here to contact Vogel's Consumer Care. ‘Where can I find installation Click or tap the button on the front page of this manual.
- Page 20 Use all wall screws and four bolts for securing your TV. use?’ Vogel's offers a complete assembly kit with all mounting materials included in the box, for both your TV and wall. Do you miss the correct bolts for your TV? Please contact your local Vogel's dealer.
- Page 21 If applicable, if the holes in the wall have not been properly drilled in accordance with the Vogel's installation instructions for the applicable wall type; If the product has been altered or repaired by someone other than Vogel’s;...
