TVM 3220 Series
TVM 3240 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about
safe, efficient installation, and how to use your new mount.
TVM 3220/3240 Series - English
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVM 3220 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for vogel's TVM 3220 Series

Summary of Contents for vogel's TVM 3220 Series

  • Page 1 TVM 3220 Series TVM 3240 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new mount.
  • Page 2 Stay safe Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. Don’t dare risk it… Read all Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert.

  • Page 3: What's In Your Box

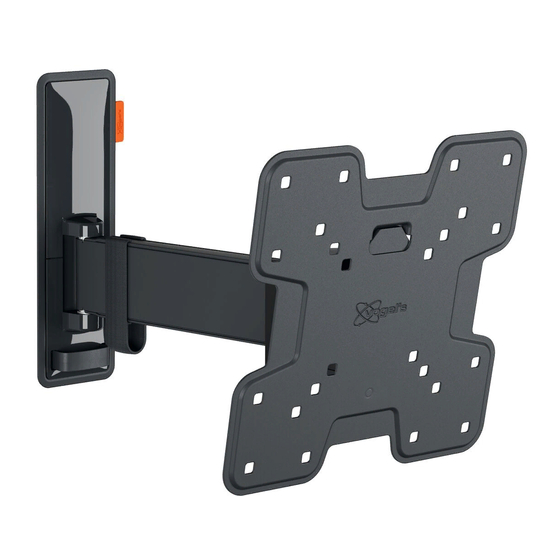

    What’s in your box? Something missing? Make sure your packaging has everything in place: A. Wall mount B. Adapter D. Safety instructions E. Bolts for fastening adapter on TV (see contents below) F. Spacers G. Washers Ø 18 mm H. Screws I.
  • Page 4 Contents of the TV fasteners kit: 4x M4*12mm bolts 4x M4*25mm bolts 4x M6*12mm bolts 4x M6*25mm bolts 4x M8*12mm bolts 4x M8*25mm bolts 4x M8*45mm bolts 4x M6 washer 4x spacer 10mm You don't need all fasteners to mount your TV. Store the rest for later or other use! Got your tools ready? Don’t start without all the necessary tools: Crosshead screwdriver...
  • Page 5 Stud finder (optional) Socket wrench no. 10 Pencil M4 (4mm) Allen key Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection Safety shoes TVM 3220/3240 Series - English...
  • Page 6 Ready… set… get installing! Step 1: Attach the adapter to the TV 1. Put the TV carefully on a clean surface without any obstacles. 2. Screw the adapter Ⓑ on to the TV with the bolts Ⓔ and washers Ⓖ. Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help: vogels.com/contact Make sure bolts and spacers are positioned correctly.
  • Page 7 Refer to the user manual of your TV for the correct mounting material. TVM 3220/3240 Series - English...
  • Page 8 Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete/Brick wall Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.
  • Page 9 How deep do you drill? Check the length of the screw (not the plug!) to find the right depth – this stops things from breaking. 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level to level the wall mount.
  • Page 10 4. Place the covers Ⓚ. TVM 3220/3240 Series - English...
  • Page 11 Wooden wall with studs Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1. Don’t just guess! Always use a stud finder to determine the position of studs. 2.
  • Page 12 4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ. Use the spirit level to level the wall mount. Lubricate the screws for easy screwing in. TVM 3220/3240 Series - English...
  • Page 13 5. Place the covers Ⓚ. Other wall type/I don’t know my wall type If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact .
  • Page 14 Step 3: Attach the TV to the wall mount 1. Carefully lift and attach the TV to the wall mount Ⓐ. 2. Attach the adapter Ⓑ to the wall mount Ⓐ with the thumbnut Ⓟ. Make sure the TV is levelled, using the spirit level.
  • Page 15 Lifting your TV is a two-person job. Don’t be bold! Job done now! Enjoy watching your TV! Handy features Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV accessories? Take a look at our website vogels.com ! Tilt to avoid reflections 1.
  • Page 16 Guide your cables 1. Guide the cables. 2. Place the cable clip Ⓜ on the arm, where needed. 3. Place the cable clip Ⓝ on the wall plate. TVM 3220/3240 Series - English...
  • Page 17 Removing your TV 1. Remove the thumbnut Ⓟ. 2. Remove the TV, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. TVM 3220/3240 Series - English...
  • Page 18 Tell us how you feel! Your opinion matters more than you might think. It helps us make better products, and helps other customers make informed choices. Share your feedback, and sign up to win Vogel’s products! Simply visit vogels.com/review for sharing or the Terms and Conditions. Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com...

  • Page 19: Simple Troubleshooting

    Click here to contact sometimes. So, it might be Vogel's Consumer Care. the case that the correct bolt size is not included… you’re just too advanced! ‘I have a lot of leftover...
  • Page 20 ‘Where can I request the correct bolts for my Whatever you need, simply contact your local TV (a service kit)?’ Vogel's dealer or Vogel's. Click here to contact Vogel's Consumer Care. ‘Where can I find installation videos?’ The installation video can be found at the product page of your product on our website.
  • Page 21 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! TVM 3220/3240 Series - English...
  • Page 22 Guarantee Thanks again for choosing Vogel’s! Just like every product we make, your new purchase is made of durable materials and is based on a meticulous design. That is why Vogel’s gives you a 10-year guarantee for defects in materials and manufacturing. 1.
