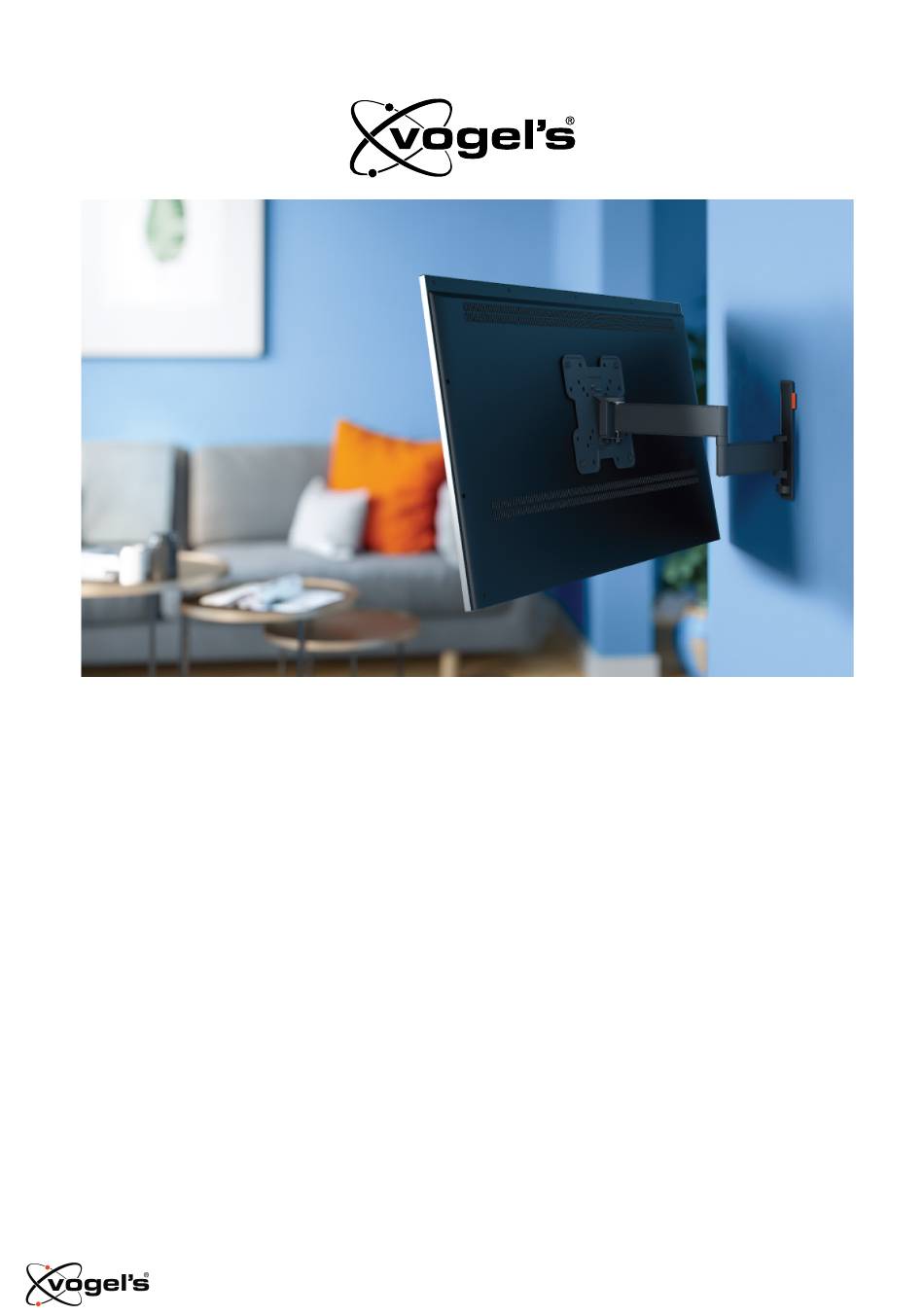

TVM 3220 Series
TVM 3240 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all
about safe, efficient installation, and how to use your new mount.
TVM 3220/3240 Series - English
1
Advertisement
Related Manuals for vogel's TVM 3240 Series
Summary of Contents for vogel's TVM 3240 Series
- Page 1 TVM 3220 Series TVM 3240 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new mount.
- Page 2 Stay safe Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. Don’t dare risk it… Read all ...
-
Page 3: What's In Your Box
What’s in your box? Something missing? Make sure your packaging has everything in place: A. Wall mount C. Center plate D. Safety instructions E. Bolts for fastening plate on TV (see contents below) F. Spacers ... - Page 4 Contents of the TV fasteners kit: 4x M4*12mm bolts 4x M8*25mm bolts 4x M4*25mm bolts 4x M8*45mm bolts 4x M6*12mm bolts 4x M6 washer 4x M6*25mm bolts 4x spacer 10mm 4x M8*12mm bolts You just need four bolts to mount your TV.
- Page 5 Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection Safety shoes TVM 3220/3240 Series - English...
- Page 6 Ready… set… get installing! Step 1: Attach the center plate to the TV 1. Put the TV carefully on a soft clean surface without any obstacles. 2. For models where the thumbnuts are pre-attached: remove both thumbnuts Ⓟ from the center plate Ⓒ...
- Page 7 TVM 3220/3240 Series - English...
- Page 8 Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete / Brick wall Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.
- Page 9 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ , washers Ⓙ and plugs Ⓘ . Use the spirit level Ⓞ to level the wall mount. Lubricate the screws for easy screwing in. 4. Place the covers Ⓚ . TVM 3220/3240 Series - English...
- Page 10 Walls with wooden studs Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1. Don’t just guess! Always use a stud finder to determine the position of studs. ...
- Page 11 4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ . Use the spirit level Ⓞ to level the wall mount. Lubricate the screws for easy screwing in. 5. Place the covers Ⓚ . TVM 3220/3240 Series - English...
- Page 12 Other wall type / I don’t know my wall type If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact.
- Page 13 2. Attach the center plate Ⓒ to the wall mount Ⓐ with the thumbnut Ⓟ and tighten with an allen key. Make sure the TV is levelled, using the spirit level. Lifting your TV is a two-person job. Don’t be bold! ...
- Page 14 Tilt to avoid reflections 1. Adjust the tilt angle by pulling the TV forwards or backwards. 2. Optional: If the screen tilts downwards. Tighten the bolt with key. Guide your cables 1. Guide the cables. 2. Place the cable clip Ⓜ on the lower arm, where needed. ...
- Page 15 Removing your TV 1. Remove the thumbnut Ⓟ . 2. Pull the bottom of the TV forward. 3. Remove the TV, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. Tell us how you feel! Your opinion matters more than you might think.
- Page 16 Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com www.vogels.com/contact facebook.com/ VogelsForSure/ instagram.com/ vogels_official/ www.youtube.com/ c/VogelsForSure TVM 3220/3240 Series - English...
-
Page 17: Simple Troubleshooting
Click here to contact advanced! Vogel's Consumer Care. ‘I have a lot of leftover No, you did it very well! You only Don’t waste the other bolts, is something... - Page 18 Use all wall screws and four bolts for securing your TV. use?’ Vogel's offers a complete assembly kit with all mounting materials included in the box, for both your TV and wall. Do you miss the correct bolts for your TV? Please contact your local Vogel's dealer.
- Page 19 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! TVM 3220/3240 Series - English...
- Page 20 If applicable, if the holes in the wall have not been properly drilled in accordance with the Vogel's installation instructions for the applicable wall type; If the product has been altered or repaired by someone other than Vogel’s;...
