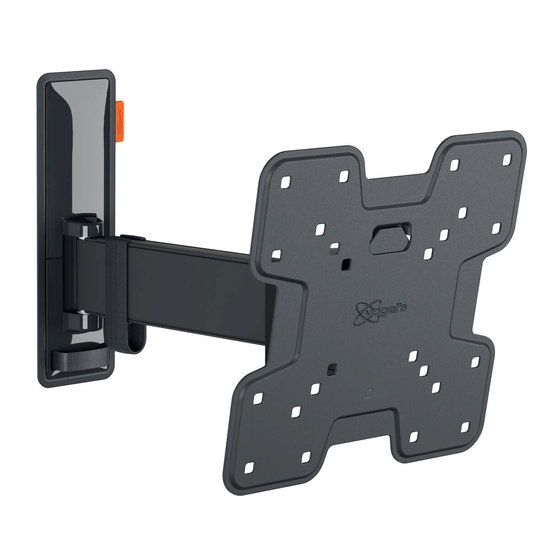

TVM 3220 Series
TVM 3240 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep
reading to learn all about safe, efficient installation, and how to use your new
mount.
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at
substantial risk.
Don't dare risk it... Read all
https://manuals.vogels.com/en-us/tvm3220_3240.html
TVM 3220 Series
Additional tools
Click to download the app
(https://www.vogels.com/en-us/c/tvmountguide)
Click to watch
(https://youtu.be/jIPrSQFvgYw)
1/17
Advertisement
Related Manuals for vogel's TVM 3220 Series
Summary of Contents for vogel's TVM 3220 Series
- Page 1 2023-08-18 14:57 TVM 3220 Series TVM 3220 Series TVM 3240 Series Additional tools Full Installation Guide Everything you need to get your TV safely on the wall, in no time Click to download the app (https://www.vogels.com/en-us/c/tvmountguide) Before you start Click to watch …we just wanted to say thanks for choosing Vogel’s.
- Page 2 2023-08-18 14:57 TVM 3220 Series Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert. Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation. Please consult the manual for your TV and ensure that the weight and size of the TV is within the maximum weight and size limits specified for this product, and that the TV mounting bolts used are of a suitable length and diameter.
- Page 3 2023-08-18 14:57 TVM 3220 Series F. Spacers G. Washers Ø 18 mm H. Screws I. Plugs (fischer© DuoPower) J. Washers Ø 22 mm K. Covers L. Protective TV patches M. Cable clip or clips (depending on model) N. Cable clip for wall plate O.
- Page 4 2023-08-18 14:57 TVM 3220 Series 4mm or 5/32” wood drill (for walls with wooden studs only) Stud finder (for walls with wooden studs only) Socket wrench no. 10 Pencil M4 (4mm) Allen key Take care of your safety Who cares about looking cool? Always wear personal protective equipment:...
- Page 5 2023-08-18 14:57 TVM 3220 Series Ready… set… get installing! Step 1: Attach the center plate to the TV 1. Put the TV carefully on a soft clean surface without any obstacles. 2. For models where the thumbnuts are pre-attached: remove both thumbnuts Ⓟ from the center plate Ⓒ.
- Page 6 2023-08-18 14:57 TVM 3220 Series Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete / Brick wall Don’t drill yet! Try our free DrillRight™ AR app (https://www.vogels.com/DrillRight) to find just the right height and mark the first hole, easily.
- Page 7 2023-08-18 14:57 TVM 3220 Series 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level Ⓞ to level the wall mount. Lubricate the screws for easy screwing in.
- Page 8 2023-08-18 14:57 TVM 3220 Series Don’t drill yet! Try our free DrillRight™ AR app (https://www.vogels.com/DrillRight) to find just the right height and mark the first hole, easily. 1. Don’t just guess! Always use a stud finder to determine the position of studs.
- Page 9 2023-08-18 14:57 TVM 3220 Series 4. Attach the wall mount Ⓐ to the wooden studs with the screws Ⓗ and washers Ⓙ. Use the spirit level Ⓞ to level the wall mount. Lubricate the screws for easy screwing in. 5. Place the covers Ⓚ.
- Page 10 2023-08-18 14:57 TVM 3220 Series If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact (http://www.vogels.com/contact).
- Page 11 2023-08-18 14:57 TVM 3220 Series 2. Attach the center plate Ⓒ to the wall mount Ⓐ with the thumbnut Ⓟ and tighten with an allen key. Make sure the TV is levelled, using the spirit level. Lifting your TV is a two-person job. Don’t be bold!
- Page 12 2023-08-18 14:57 TVM 3220 Series 1. Adjust the tilt angle by pulling the TV forwards or backwards. 2. Optional: If the screen tilts downwards. Tighten the bolt with key. Guide your cables 1. Guide the cables. 2. Place the cable clip Ⓜ on the lower arm, where needed.
- Page 13 2023-08-18 14:57 TVM 3220 Series Removing your TV 1. Remove the thumbnut Ⓟ. 2. Pull the bottom of the TV forward. 3. Remove the TV, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help.
-
Page 14: Simple Troubleshooting
Solution Just ask Vogel’s Consumer Care to request a service kit, and we’ll send everything you need. Click here (http://www.vogels.com/contact) to contact Vogel's Consumer Care. Problem ‘I have a lot of leftover bolts, is something wrong?’... - Page 15 Use all wall screws and four bolts for securing your TV. Vogel's offers a complete assembly kit with all mounting materials included in the box, for both your TV and wall. Do you miss the correct bolts for your TV? Please contact your local Vogel's dealer. Click here (http://www.vogels.com/contact) to contact Vogel's Consumer Care.
- Page 16 Vogel’s guarantee shall lapse in the following cases: If the product has not been installed or used in accordance with the instructions; If applicable, if the holes in the wall have not been properly drilled in accordance with the Vogel's installation instructions for the applicable wall type;...
- Page 17 2023-08-18 14:57 TVM 3220 Series Do you have any other questions? Please make use of our contact form. Vogel’s Products BV - Hondsruglaan 93 - 5628 DB Eindhoven - The Netherlands Vogel’s Products BV 2023 © All rights reserved. https://manuals.vogels.com/en-us/tvm3220_3240.html...
