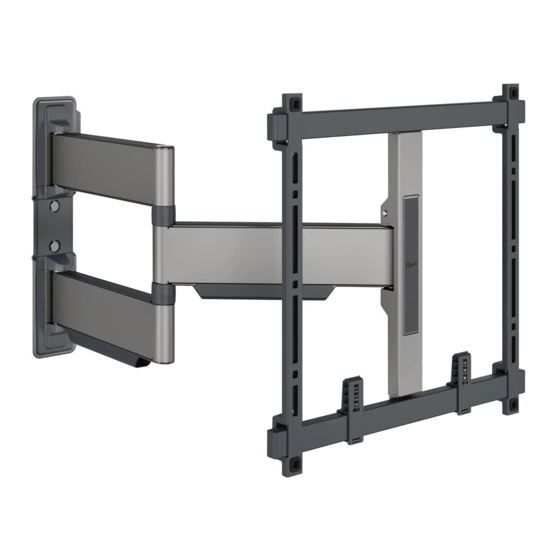

TVM 5445 Series
TVM 5645 Series
TVM 5845 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about
safe, efficient installation, and how to use your new mount.
TVM 5445/5645/5845 Series - English
1
Advertisement
Related Manuals for vogel's Elite 5445 Series
Summary of Contents for vogel's Elite 5445 Series
- Page 1 TVM 5445 Series TVM 5645 Series TVM 5845 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice –...
- Page 2 Stay safe Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. Don’t dare risk it… Read all Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert.
-
Page 3: What's In Your Box
What’s in your box? Something missing? Make sure your packaging has everything in place: A. Wall mount B. Interface bars C. Interface strips D. Safety instructions E. Bolts for fastening strips on TV (see contents below) F. Spacers G. Washers Ø 18 mm H. - Page 4 Contents of the TV fasteners kit: 4x M6*12mm bolts 4x M6*25mm bolts 4x M6*35mm bolts 4x M8*12mm bolts 4x M8*25mm bolts 4x M8*45mm bolts 4x M6 washer 4x spacer 10mm 4x spacer 5mm You don't need all fasteners to mount your TV. Store the rest for later or other use! Got your tools ready? Don’t start without all the necessary tools: Crosshead screwdriver...
- Page 5 5 mm or 13/64” wood drill (for wooden walls only) Stud finder Socket wrench Pencil M4 (4mm) Allen key Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection Safety shoes TVM 5445/5645/5845 Series - English...
- Page 6 Ready… set… get installing! Step 1: Attach the strips to the TV 1. Put the protective TV patches Ⓛ on the interface strips Ⓒ. 2. Carefully place the TV face down, on a clean surface without any obstacles. 3. Screw the interface strips Ⓒ on to the TV with the bolts Ⓔ. Make sure the interface strips Ⓒ are at the same height and do not stick out.
- Page 7 Refer to the user manual of your TV for the correct mounting material. 5. Slide the interface bars Ⓑ through the interface strips Ⓒ. 6. Tighten the bars Ⓑ. 7. Attach the strip covers Ⓡ. 8. Put the interface bolt Ⓠ in the upper interface bar. Make sure you don't screw it in completely, yet.
- Page 8 Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete / Brick wall Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily.
- Page 9 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level to level the wall mount. Make sure that you insert the centre screw into the wall first. Lubricate the screws for easy screwing in. 4.
- Page 10 Wooden wall with studs Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1. Don’t just guess! Always use a stud finder to determine the position of studs. 2.
- Page 11 4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ. Use the spirit level to level the wall mount . Make sure that you insert the centre screw into the wall first. Lubricate the screws for easy screwing in. 5.
- Page 12 Other wall type / I don’t know my wall type If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact .
- Page 13 Step 3: Attach the TV to the wall mount 1. Carefully lift and attach the TV onto the interface bracket on the wall mount Ⓐ. 2. Tighten the upper interface bolt and place the bottom interface bolt. 3. Guide the cables through the cable arm covers, put them into the arms, and slide into a locked position.
- Page 14 5. Make sure the TV is levelled by using the spirit level. 6. When you have the correct position, tighten the bolts. Job done now! Enjoy watching your TV! Handy features Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV accessories? Take a look at our website vogels.com ! TVM 5445/5645/5845 Series - English...
- Page 15 Removing your TV 1. Remove the bottom interface bolt and loosen the upper interface bolt. 2. Unplug the cables from your TV. 3. Lift your TV off of the interface bracket, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. TVM 5445/5645/5845 Series - English...
- Page 16 Tell us how you feel! Your opinion matters more than you might think. It helps us make better products, and helps other customers make informed choices. Share your feedback, and sign up to win Vogel’s products! Simply visit vogels.com/review for sharing or the Terms and Conditions. Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com...
-
Page 17: Simple Troubleshooting
Simple troubleshooting Found a problem you can’t fix? Don’t panic… try these! Problem Cause Solution ‘I have a lot of leftover No, you did it very well! You Don’t waste the other bolts, save them! bolts, is something only need 4 bolts to install You can use them for another TV when wrong?’... - Page 18 ‘Where can I request the correct bolts for my Whatever you need, simply contact your local TV (a service kit)?’ Vogel's dealer or Vogel's. Click here to contact Vogel's Consumer Care. ‘Where can I find installation videos?’ Click or tap the button on the front page of this manual.
- Page 19 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! TVM 5445/5645/5845 Series - English...
- Page 20 Guarantee Thanks again for choosing Vogel’s! Just like every product we make, your new purchase is made of durable materials and is based on a meticulous design. That is why Vogel’s gives you a 10-year guarantee for defects in materials and manufacturing. 1.
