Summary of Contents for Digitus DN-650102

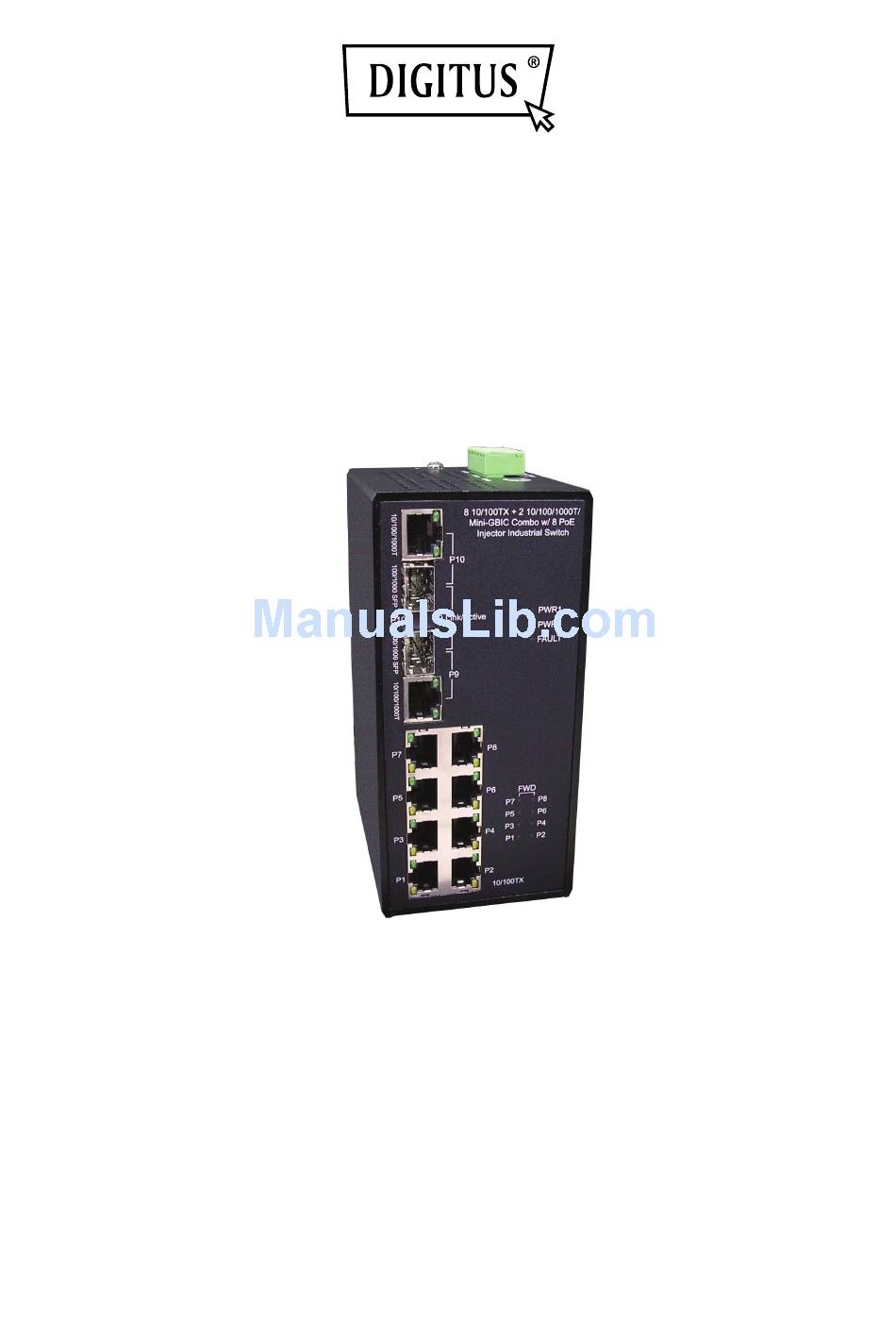

  • Page 1 8 10/100TX + 2 10/100/1000T/100/1000 SFP Combo with 8 PoE Injectors Industrial Switch User Manual DN-650102...
  • Page 2: Fcc Warning

    FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
  • Page 3: Table Of Contents

    Content Introduction ..............1 Features ..............1 Package Contents ............ 2 Hardware Description ..........3 Physical Dimension ..........3 Front Panel .............. 3 Top View ..............4 LED Indicators ............5 Ports ................. 6 Cabling ..............8 Wiring the Power Inputs ......... 11 Wiring the Fault Alarm Contact ......
  • Page 4: Introduction

    Introduction The 8 10/100TX + 2 10/100/1000T/100/1000 SFP Combo with 8 PoE Injectors Industrial Switch is a cost-effective solution and meets the high reliability requirements demanded by industrial applications. Using fiber port can extend the connection distance that increases the network elasticity and performance. Features ...
  • Page 5: Package Contents

    Package Contents Please refer to the package contents list below to verify them against the checklist.  8 10/100TX + 2 10/100/1000T/100/1000 SFP Combo with 8 PoE Injectors Industrial Switch User manual   Pluggable Terminal Block  2 wall mount plates and 6 screws ...
  • Page 6: Hardware Description

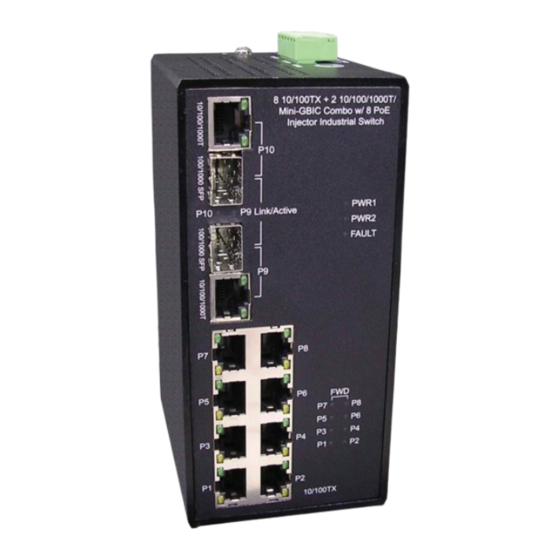

    Hardware Description In this paragraph, the Industrial switch’s hardware spec, port, cabling information, and wiring installation will be described. Physical Dimension 8 10/100TX + 2 10/100/1000T/100/1000 SFP Combo with 8 PoE Injectors Industrial Switch dimension (W x D x H) is 72mm x 105mm x 152mm Front Panel The Front Panel of the 8 10/100TX + 2 10/100/1000T/100/1000 SFP Combo with 8 PoE Injectors Industrial Switch is shown as below:...
  • Page 7: Top View

    Top View The top view of the 8 10/100TX + 2 10/100/1000T/100/1000 SFP Combo with 8 PoE Injectors Industrial Switch has one terminal block connector of two DC power inputs. Top View of the PoE Injectors Industrial Switch...
  • Page 8: Led Indicators

    LED Indicators The diagnostic LEDs located on the front panel of the industrial switch provide real-time information of system and optional status. The following table provides the description of the LED status and their meanings for the switch. Status Meaning Green Power 1 is active PWR1...
  • Page 9: Ports

    Not connected to network Yellow Ethernet port full duplex P1 ~ P8 Blinking Collision of packet occurs (Yellow) Ethernet port half duplex or not connected to network A powered device is connected utilizing Power Green over Ethernet on the port FWD (P1 ~ P8) No device is connected or power forwarding fails Ports...
  • Page 10 Pin MDI-X Signal Name MDI Signal Name Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Transmit Data plus (TD+) Receive Data plus (RD+) Transmit Data minus (TD-) Receive Data minus (RD-) Straight Through Cable Schematic Cross Over Cable Schematic ...
  • Page 11: Cabling

    Cabling  Use four twisted-pair, Category 5e or above cabling for RJ-45 port connection. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Use the mini-GBIC ports to uplink to another switch by inserting the mini-GBIC (SFP) ...
  • Page 12 Figure 2.9: Transceiver Inserted Second, insert the fiber cable of LC connector into the transceiver. Figure 2.10: LC connector to the transceiver...
  • Page 13 To remove the LC connector from the transceiver, please follow the steps shown below: First, press the upper side of the LC connector to release from the transceiver and pull it out. Figure 2.11: Remove LC connector Second, push down the metal loop and pull the transceiver out by the plastic handle. Figure 2.12: Pull out from the transceiver...
  • Page 14: Wiring The Power Inputs

    Wiring the Power Inputs Please follow the steps below to insert the power wire. Insert the positive and negative wires into the V+ and V- contacts on the terminal block connector. Tighten the wire-clamp screws for preventing the wires from loosing. Wiring the Fault Alarm Contact The fault alarm contact is in the middle of terminal block connector as the picture shows below.
  • Page 15 Note The wire gauge for the terminal block should be in the range between 12~ 24 AWG.
  • Page 16: Mounting Installation

    Mounting Installation DIN-Rail Mounting The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is not screwed on the industrial switch, please see the following pictures to screw the DIN- Rail on the switch. Follow the steps below to hang the industrial switch. Rear Panel of the switch DIN-Rail 1.
  • Page 17 First, insert the top of DIN-Rail into the track. Then, lightly push the DIN-Rail into the track. Check if the DIN-Rail is tightened on the track or not. To remove the industrial switch from the track, reverse steps above.
  • Page 18: Wall Mount Plate Mounting

    Wall Mount Plate Mounting Follow the steps below to mount the industrial switch with wall mount plate. 1. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN- Rail. 2. Place the wall mount plate on the rear panel of the industrial switch. 3.
  • Page 19: Hardware Installation

    Hardware Installation In this paragraph, we are going to mention how to install the 8 10/100TX + 2 10/100/1000T/100/1000 SFP Combo with 8 PoE Injectors Industrial Switch and the installation points to be attended to it. Installation Steps 1. Unpack the Industrial switch packing. 2.
  • Page 20: Network Application

    Network Application This segment provides the samples to help user have more actual idea of industrial switch application. For a sample application of the industrial switch, see the figures below.
  • Page 22: Troubles Shooting

    Troubles shooting  Verify that is using the right power cord/adapter (DC 48V), please don’t use the power adapter with DC output voltage higher than 48V, or it will burn this converter down.  Select the proper UTP cable to construct user network. Please check that is using the right cable.
  • Page 23: Technical Specification

    Technical Specification 8 10/100TX + 2 10/100/1000T/100/1000 SFP Combo with 8 PoE Injectors Industrial Switch technical specifications is shown as below. IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T Standard IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3af Power over Ethernet Protocol CSMA/CD...
  • Page 24 Distance: Multi mode: 0 to 5 km, 1300 nm (50/125 μm, 800 MHz*km) 0 to 4 km, 1300 nm (62.5/125 μm, 500 MHz*km) Single mode: 0 to 40 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km)) 0 to 80 km, 1550 nm (9/125 μm, 19 PS/(nm*km)) Min.
  • Page 25 Operating 5% to 95% (Non-condensing) Humidity Storage C to 85 Temperature Case Dimension IP-30, 72 mm (W) x 105 mm (D) x 152mm (H) FCC Class A CE EN61000-4-2/3/4/5/6/8/11/12 CE EN61000-6-2 CE EN61000-6-4 Safety CE/EN60950-1 IEC60068-2-32 (Free fall) Stability testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) www.assmann.com...
