Summary of Contents for CDN DW2

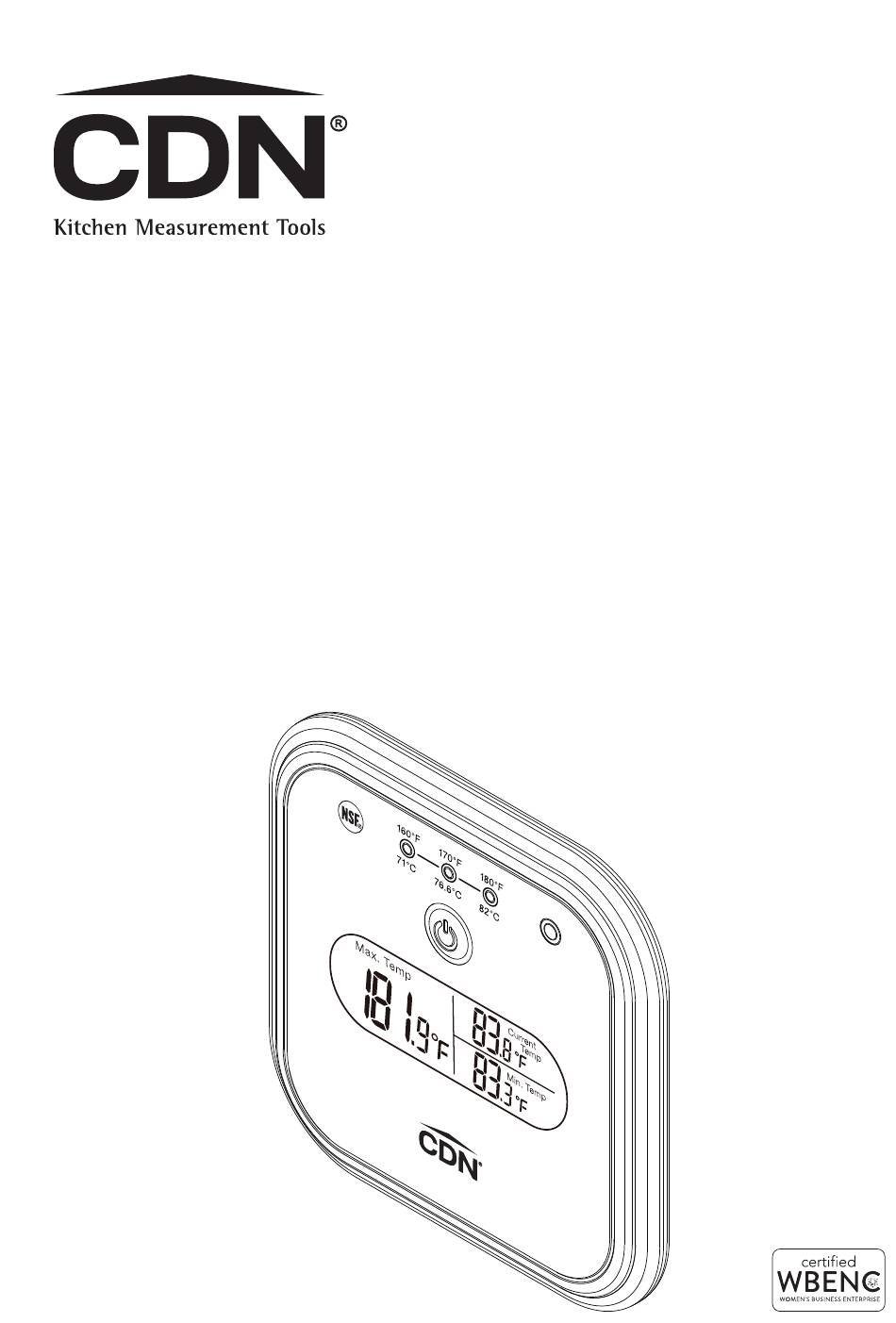

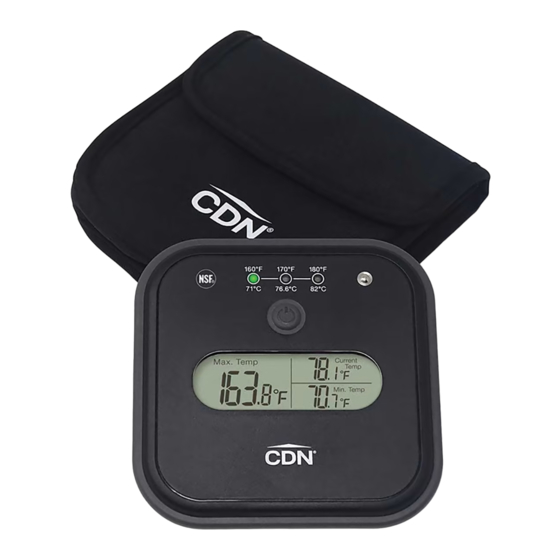

- Page 1 Model DW2 DISHWASHER THERMOMETER 32 to 194°F/0 to 90°C...
-
Page 2: Battery Installation
) for 7-8 seconds to turn off. The Max and Min values will be cleared. Note: There is no auto-off. The DW2 must be manually powered off. B. Temperature Scale 1. Remove battery cover on the back with a small Phillips screwdriver. - Page 3 5. To clear the max and min values, repeat step 1. or press and hold the POWER button ( ) for 7-8 seconds to turn the DW2 off. The Max and Min values will be cleared. D. Battery Status The Battery Status Icon ( ) appears on the display when the batteries need to be replaced.
- Page 4 PRECAUTIONS • Keep the batteries and thermometer away from children. • Do not clean the unit with abrasive or corrosive compound, which may scratch the plastic and corrode the electronic circuits. • Do not subject the unit to excessive force shock, dust, temperature or humidity, which may result in malfunction, shorter electronic life span, damaged battery and distorted parts.
-
Page 5: Specifications
SPECIFICATIONS Measurement Range 32 to 194°F/0 to 90°C Unit of Measure °F/°C Resolution 0.1°F/0.1°C Operating Range 32 to 203°F/0 to 95°C/≤90% RH Water Resilience IP66 – dust protected & powerful water jets Accuracy ±0.9°F/±0.5°C within 65.5-90°C Alerts Green: ≥ 160°F/71ºC but < 170°F/76.6ºC Yellow: ≥... - Page 6 FDA FOOD CODE 2017 4-501.112 Mechanical Warewashing Equipment, Hot Water Sanitization Temperatures. (A) Except as specified in ¶ (B) of this section, in a mechanical operation, the temperature of the fresh hot water SANITIZING rinse as it enters the manifold may not be more than 90°C (194°F), or less than: (1) For a stationary rack, single temperature machine, 74°C (165°F);...
- Page 7 NOTES...
- Page 8 Any instrument that proves to be defective in material or workmanship (excluding batteries) within one year of original purchase will be repaired or replaced without charge upon receipt of the unit prepaid at: CDN, PO Box 10947, Portland, OR 97296-0947. This warranty does not cover...
