CDN DT450X Quick Start Manual

FOR THIN CUTS OF MEAT AND
GENERAL PURPOSE COOKING
• NSF Certified
®
• 6 second response
• 2.5 mm reduced tip
• 2.75"/7.0 cm stem
• Shatterproof
• High heat
• Hold mode
• Food-safe ABS plastic with BioCote
• Stainless steel stem
• On/off button
• Auto-off after 10 minutes
• Temperature guide on thermometer
• Sheath can be used as handle extension
• 2-way mounting: pocket clip/hook
• One LR44 alkaline button battery included
Note: Remove label from display before initial use.
®
Tel 800 338-5594 Fax 800 879-2364 Web CDNmeasurement.com

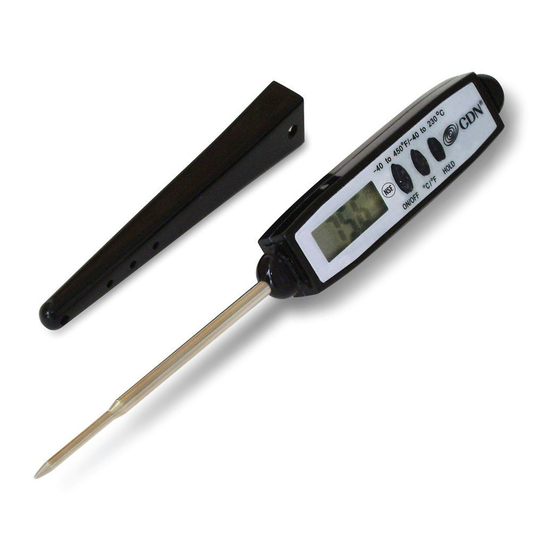

DIGITAL POCKET THERMOMETER
Note:
In the following instructions, names of the control
buttons are shown in CAPS. Function information that
appears on the display is shown in BOLD CAPS.
BATTERY INSTALLATION
The battery is installed. Replace battery when LCD
becomes dim.
1. To replace battery, open circular door on rear with
a coin.
2. Replace battery with a new LR44, or equivalent.
3. Replace door cover.
OPERATING INSTRUCTIONS
A. Temperature Measurement
1. Remove protective sheath from stem by pulling
sheath straight off.
2. Press ON/OFF to turn the DT450X on.
3. Select °F or °C temperature display by pressing
the °F/°C button.
4. The temperature sensor is in the bottom 0.25" of
the stem. Therefore, insert the stem at least 0.5"
into the food to assure an accurate reading.
B. Hold Mode
1. Before withdrawing the DT450X from the food,
press the HOLD button. This will "hold" the
reading until the HOLD button is pressed again
or until the unit automatically shuts off. An
appears to the right of the reading when the
hold feature is engaged. When the HOLD button
is pressed again, the display shows the present
temperature.
2. After use, press the ON/OFF button to turn the
DT450X off and conserve battery life.
Note: Clean the thermometer stem before each use.
Important: DO NOT LEAVE IN HOT OVEN OR
MICROWAVE. HAND WASH AND DRY. DO NOT
IMMERSE HOUSING IN LIQUID.
Model: DT450X
-40 to +450°F/-40 to +230°C
H
