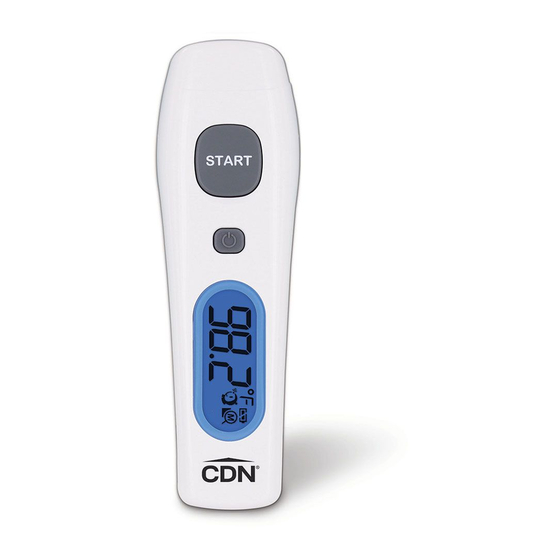

Model THD2FE
NON-CONTACT FOREHEAD
THERMOMETER
Forehead mode: 93.2 to 108°F/34 to 42.2°C
Surface mode: -7.6 to +176°F/-22 to +80°C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THD2FE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CDN THD2FE

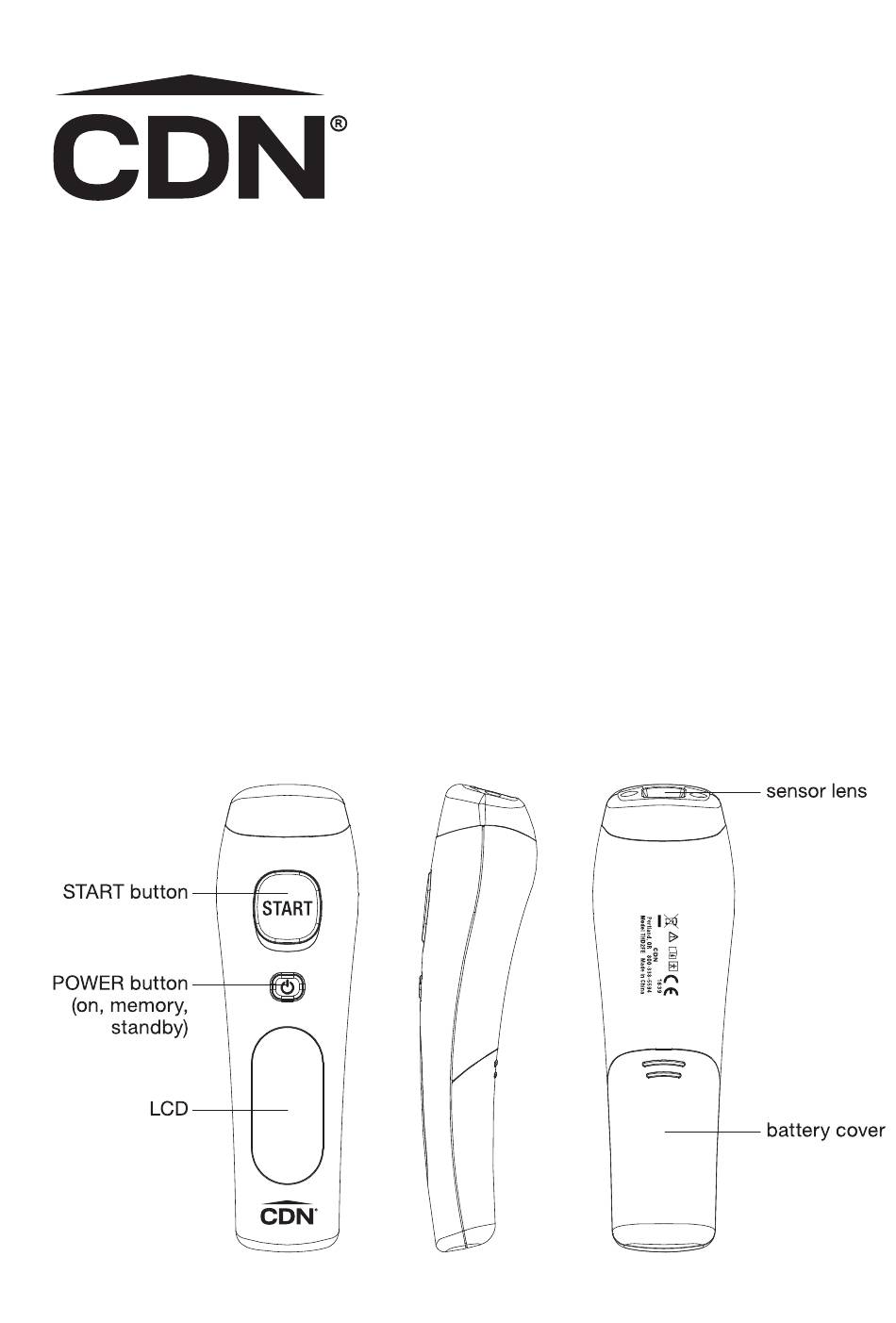

  • Page 1 Model THD2FE NON-CONTACT FOREHEAD THERMOMETER Forehead mode: 93.2 to 108°F/34 to 42.2°C Surface mode: -7.6 to +176°F/-22 to +80°C...
  • Page 2 Note: In the following instructions, names of the control buttons are shown in CAPS. Function information that appears on the display is shown in BOLD CAPS. USAGE Indications for Use The Non-Contact Forehead Thermometer is an infrared thermometer intended for the intermittent measurement of human body temperature in people of all ages.
  • Page 3: Before We Begin

    BEFORE WE BEGIN This thermometer has been designed for home use. It is not meant to replace a visit to the doctor. Compare the measurement result to your regular body temperature. Consult with doctor if you have health concerns. BATTERY INSTALLATION Replace battery when the Low Battery icon ( indicates the battery is low.
  • Page 4 3. Press the POWER button ( ) for 5 seconds to turn the thermometer off. 4. The THD2FE will automatically turn off after 1 minute of inactivity. B. Temperature Scale Note: When the temperature scale is changed, the memory is cleared.
  • Page 5 If the thermometer detects a temperature ≥99.5°F (37.5°C), three short beeps sound followed by one long beep. b. Silent i. When the THD2FE is on, press and hold the POWER button for 3 seconds. ii. The silent icon ( ) flashes on the display.
  • Page 6 display. iii. Press the Power button again to cycle through all of the previous readings starting with the most recent. E. Surface Mode Note: The surface mode shows the actual and unadjusted surface temperature which is different from the body temperature. It can help you monitor if the object temperature is suitable for the baby or patient, for example the baby’s milk.
  • Page 7: Troubleshooting

    (+42.2°C) Surface mode: Temperature taken is higher than 176°F Select the target within (+80°C) specifications. If a malfunction still exists, contact CDN for Forehead mode: Temperature further assistance. taken is lower than 93.2°F (+34°C) Surface mode: Temperature taken is lower than -7.6°F (-22°C)
  • Page 8: Care Of Your Product

    E. Battery Status The thermometer incorporates visual battery status indication: Battery OK: measurements are possible Battery Low: replace battery with two 1.5V AAA alkaline cells; measurements are possible Battery Exhausted: replace battery; measurements are not possible CARE OF YOUR PRODUCT •...
  • Page 9 PRECAUTIONS • Dispose of used batteries promptly and keep away from children. • Keep the thermometer and batteries away from children. • Do not clean the case with abrasive or corrosive compound, which may scratch the plastic and corrode the electronic circuits. •...
  • Page 10: Specifications

    SPECIFICATIONS Measurement Range Forehead mode: 93.2 to 108°F/34 to 42.2°C; Surface mode: -7.6 to +176°F/-22 to +80°C Unit of Measure °F/°C Resolution 0.1°F/0.1°C Water Resilience IP22: protected from solids bigger than 12.5 mm (e.g. fingers); dripping water when enclosure tilted up to 15° Accuracy Forehead mode: 95 to 107.6°F/35 to 42°C: ±0.4°F/0.2°C, otherwise ±0.5°F/0.3°C;...
  • Page 11: Symbol Descriptions

    SYMBOL DESCRIPTIONS The CE mark and Notified Body Registration Numbers, the requirement of Annex II from Medical Device Directive 93/42/EEC are met Caution BF type applied part IP22 Classification for water ingress and particulate matter Indicates this device is subject to the Waste Electrical and Electronic Equipment Directive in the European Union.
  • Page 12 MANUFACTURER’S DECLARATION ELECTROMAGNETIC EMISSIONS The THD2FE is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the THD2FE should assure that it is used in such an environment. Electromagnetic Environment – Guidance...
  • Page 13 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the THD2FE is used exceeds the applicable RF compliance level above, the THD2FE should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the THD2FE.
  • Page 14: Recommended Separation Distances

    The THD2FE is intended for use in an electromagnetic environment (for home healthcare) in which radiated RF disturbances are controlled. The customer or the user of the THD2FE can help prevent electromagnetic interference by maintaining a minimum distance between portable and...
  • Page 16 Any instrument that proves to be defective in material or workmanship (excluding batteries) within one year of original purchase will be repaired or replaced without charge upon receipt of the unit prepaid at: CDN, PO Box 10947, Portland, OR 97296-0947. This warranty does not cover...
