CDN DTTW572 Quick User Manual

FOR THIN CUTS OF MEAT AND
GENERAL PURPOSE COOKING
• NSF Certified
®
• 4 second response
• 1.5 mm thin tip
• 3.5"/8.9 cm stem
• Waterproof (IPX7: protected from water up to
3 feet/1 meter for 30 minutes)
• Field calibration
• High heat
• Max/min
• Data-hold
• Big digit
• 180° rotating display
• On/off button
• Auto-off after 10 minutes
• Food-safe ABS plastic with BioCote
• 304 stainless steel stem
• Temperature guide on thermometer
• 2-way mounting: pocket clip/hook
• Two 1.5V IEC LR44 button alkaline batteries (included)
Note: Remove label from display before initial use.
Clean the thermometer stem before each use.
®
Tel 800 338-5594 Fax 800 879-2364 Web CDNmeasurement.com

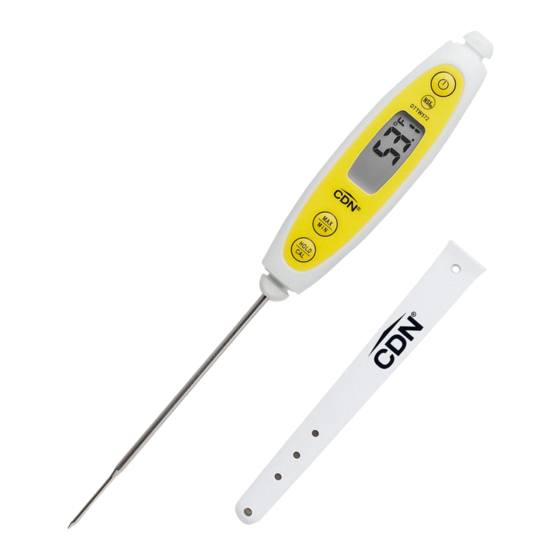

WATERPROOF THIN TIP THERMOMETER
Note:
In the following instructions, names of the control
buttons are shown in CAPS. Function information that
appears on the display is shown in BOLD CAPS.
BATTERY INSTALLATION
Replace batteries when LCD becomes dim.
"---" flashes on the display when the batteries need
to be replaced.
1. Power off the unit before installing the batteries.
A malfunction may occur if the power is on when
the batteries are installed. If a malfunction occurs,
restart the device.
2. Using a small Phillips screwdriver, remove the
screw on the back by the pocket clip by turning it
counter clockwise.
Note: Be careful to use a properly-sized screwdriver as a
screwdriver too large will strip the screwtops.
3. Remove the cover completely.
4. Install two LR44 batteries with positive (+) sides up.
5. Replace the battery cover.
Important: THE WATER RESISTANT FEATURE REQUIRES
MAINTAINING THE RUBBER GASKET EVENLY WITHIN THE
GROOVE.
6. Fasten the screw on the back by turning it
clockwise, being careful not to over-turn.
OPERATING INSTRUCTIONS
A. On/Off
1. Press the POWER button ( ) to turn the
thermometer on.
2. The DTTW572 will automatically turn off after
10 minutes of inactivity.
3. Press the POWER button ( ) again to turn
the thermometer off and conserve battery life.
B. Temperature Scale
To select temperature reading in Fahrenheit
or Celsius:
1. Using a paperclip, press the °F/°C button
on the back to change the scale.
2. The °F or °C symbol changes on the display.
C. Display Rotation
While the DTTW572 is on, press and hold the
MAX/MIN button to rotate the display orientation
180 degrees.
Pressing and holding the MAX/MIN
Note:
button in the Max or Min mode will clear
the values.
Model: DTTW572
-40 to +572°F/-40 to +300°C
