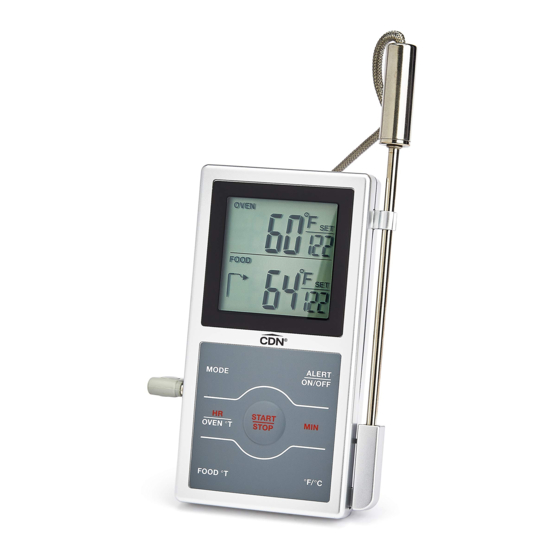

CDN DSP1 Quick Manual

FOR ROASTS AND OTHER MEATS
IN OVEN OR BARBECUE
• 6.75"/17,0 cm probe
• 39"/1 m sensor cable (heat resistant up to
600°F/315°C for 3 hours)
• High heat probe
• Programmable settings for both probe
and oven temperatures
• Dual function
• Dual progress display – instant readout of internal
food temperature and ambient oven temperature
during cooking
• Distinct alert sounds when food is done,
and for oven temperature and timer functions
• Overtime alert
• Counts up/down
• Big digit
• Alarm
• Stop & restart
• Counts up after zero
• Food-safe ABS case
• 304 stainless steel probe
• On/off button
• Temperature guide on case
• 2-way mounting: magnet/stand
• 1.5V AAA IEC LR03 alkaline battery, included
GET PROFESSIONAL RESULTS
EVERY TIME!
Food Mode
Perfect for roasting or grilling. Simply insert the probe
into the food. Place the food in the oven or barbecue
and close the oven door (or grill cover) directly over
the sensor cable. Set the temperature alert for USDA
safe cooking temperatures — listed on the back of
the case! Both the set and actual temperatures are
displayed during cooking.
Oven Mode
For oven testing, the DSP1 measures the ambient
temperature of the oven simultaneously and offers
distinct alert sound when the set oven temperature
is reached.
Tel 800 338-5594 Fax 800 879-2364 Web CDNmeasurement.com
PROBE THERMOMETER/TIMER
32 to 572°F/0 to 300°C; Counts 10 hours by hours, minutes & seconds
Timer Mode
Count up or down with this big digit timer. Keep track
of overtime and avoid confusion with the distinct
sound of the timer alarm.
Note:
Remove label from display before initial use.
Clean the thermometer probe before each use.
Note:
In the following instructions, names of the control
buttons are shown in CAPS. Function information that
appears on the display is shown in BOLD CAPS.
BATTERY INSTALLATION
Replace battery when LCD becomes dim and weak
or alarm level declines.
1. Remove battery cover on the back.
2. Install one 1.5V AAA battery observing polarity
shown in compartment. A brief alarm sounds.
3. Replace the battery cover until it clicks shut.
4. Lo flashes on the display when the probe/sensor
cable is disconnected or malfunctions.
OPERATING INSTRUCTIONS
A. On/Off
1. Press and hold the ON/OFF button for
2 seconds to turn on.
2. Press and hold the ON/OFF button for
2 seconds to turn off.
Model: DSP1
DUAL-SENSING
