CDN DTC450 Manual

FOR CANDY AND HIGH TEMPERATURE
COOKING
• 7 preprogrammed candy stages
• 1 programmable all-purpose temperature stage
• Dual progress display
• Audio/visual pre-alert, target alert and over-alert
• 8.25"/20.96 cm stem
• Shatterproof
• ABS plastic case
• 304 stainless steel stem
• On button
• Auto-off after 1 hour
• Heat shield
• Exclusive adjustable stainless steel clip
• Temperature guide on sheath
• Mounting: pocket clip
• Two 1.5V IEC LR44 alkaline button batteries,
included
Note: Remove label from display before initial use.
Clean the thermometer stem before each use.
PO Box 10947 Portland, OR 97296-0947 Tel 800 338-5594 Fax 800 879-2364 Web CDNkitchen.com

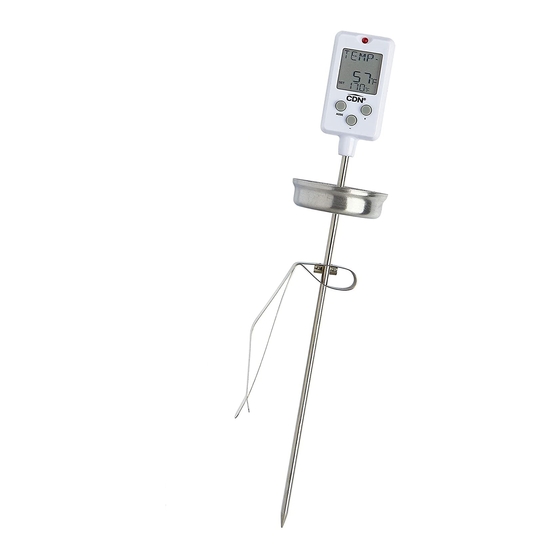

DIGITAL CANDY THERMOMETER
Note:
In the following instructions, names of the control
buttons are shown in CAPS. Function information that
appears on the display is shown in BOLD CAPS.
BATTERY INSTALLATION
Batteries are installed. Replace batteries when LCD
becomes dim or alarm level declines.
WARNING: Batteries may leak or explode in extreme
temperatures or fire. To avoid accident or injury,
open battery compartment during cooking.
the thermometer unit over fire or immerse the display
portion into liquid.
1. Turn off before installing the battery, as a
malfunction may occur if the power is on when the
battery is installed. If a malfunction occurs, restart.
2. Remove battery cover on the back by sliding it in
the direction of the arrow.
3. Install two LR44 batteries with positive (+) side up
by slipping battery under metal tab and pressing
down.
4. Replace the battery cover until it clicks shut.
OPERATING INSTRUCTIONS
A. On/Off
1. Press the MODE button to turn the DTC450 on.
2. The DTC450 will turn off automatically when the
temperature is less than 104°F/40°C for 1 hour.
B. Temperature Scale
Press and hold the MODE button for 3 seconds to
change from Fahrenheit to Celsius or vice versa.
C. Heat Shield
Insert the stem through the hole in the heat shield
(open side up), and slide it up to the bottom
of the display.
CAUTION: Initial positioning of the heat shield may require
more force. Be careful of the pointed tip.
D. Temperature Alert
1. As a matter of safety, always position the
DTC450 on the pot before filling it and/or
applying heat.
CAUTION: Always wear a heat resistant glove to touch
the stainless steel stem during or just after use. DO NOT
TOUCH with bare hands.
Model: DTC450
14 to 450°F/-10 to +232°C
DO NOT
DO NOT put
