SMB/EO1, SMB/E02 Series

Specifications and Features

Operating frequencies:
Block 470 470.100 - 495.600
Block 19 486.400 - 511.900
Block 20 512.000 - 537.500
Block 21 537.600 - 563.100
Block 22 563.200 - 588.700
Block 23 588.800 - 614.300
Block 24 614.400 - 639.900
Block 25 640.000 - 665.500
Block 26 665.600 - 691.100
Frequency range:
Channel Spacing:
Type of Modulation:
Frequency selection:
RF Power output:
Compatibility Modes:
Pilot tone:
Frequency stability:
Deviation:
Spurious radiation:
Equivalent input noise:
Input level:
If set for dynamic mic:
If set for electret lavaliere mic:
Line level input:
Input impedance:
Dynamic mic:
Electret lavaliere:
Line level:
Input limiter:
Bias voltages:
Gain control range:
Modulation indicators:
Controls:
20
E02 Additional Frequencies:
Block 27 691.200 - 716.700
Block 28 716.800 - 742.300
Block 29 742.400 - 767.900
Block 30 768.000 - 793.500
Block 31 793.600 - 819.100
Block 32 819.200 - 844.700
Block 33 844.800 - 861.900
NOTE: It's the user's
responsibility to select
the approved frequencies
for the region where the
transmitter
is operating.
256 frequencies in 100 kHz steps for one
25.5 MHz wide block
100 kHz
FM
Control panel mounted membrane switches
E01: 50 mW (nominal)
E02: 10 mW
E01: Digital Hybrid Wireless® and IFB
E02: Digital Hybrid Wireless®, Mode 3, and IFB
25 to 32 kHz; 3 kHz deviation in hybrid mode
± 0.002%
± 50 kHz max. in hybrid mode
Compliant ETSI EN 300 422-1
–125 dBV, A-weighted
0.5 mV to 50 mV before limiting.
Greater than 1 V with limiting.
1.7 uA to 170 uA before limiting.
Greater than 5000 uA (5 mA) with limiting.
17 mV to 1.7 V before limiting.
Greater than 50 V with limiting.
300 Ohms
Input is virtual ground with servo adjusted
constant current bias
2.7 k Ohms
Soft limiter, 30 dB range
Fixed 5 V at up to 5 mA
Selectable 2 V or 4 V servo bias for any
electret lavaliere.
40 dB; panel mounted membrane switches
Dual bicolor LEDs indicate modulation of
-20, -10, 0, +10 dB referenced to
full modulation.
Control panel with LCD and four membrane
switches.

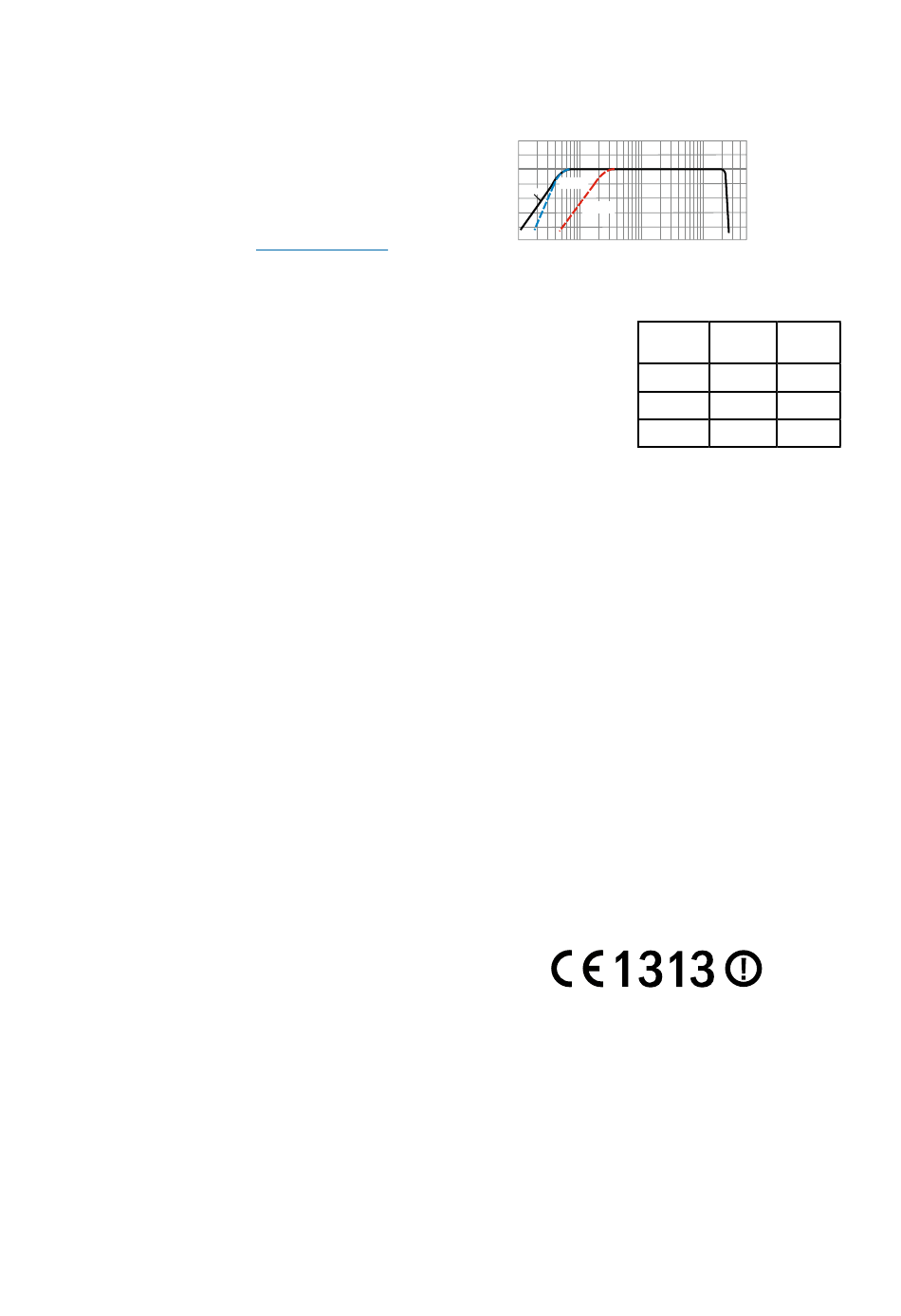

Low frequency roll-off:
+6
+3
0dB
Mic in 35 Hz
-3
Roll-off
Line in
-6
Mic in 150 Hz
Roll-off
-9
-12
30 100
Audio Frequency Response:
Signal to Noise Ratio (dB):
(overall system, 400 Series mode)
(Note: the dual envelope "soft"
limiter provides exceptionally
good handling of transients
using variable attack and release
time constants. The gradual onset of limiting in the design begins below full
modulation, which reduces the measured figure for SNR without limiting by
4.5 dB)
Total Harmonic Distortion:
Audio Input Jack:
Antenna:
Batteries:
Battery Life:
Weight:
batteries
Overall Dimensions:
Specifications subject to change without notice.
Adjustable from 35 to 150 Hz.
1kHz 10k 20k
35 Hz to 20 kHz, +/-1 dB (The low frequency
roll-off is adjustable - see graph above)
SmartNR No w/
Limiting Limiting
OFF 103.5 108.0
NORMAL 107.0 111.5
FULL 108.5 113.0
0.2% typical (400 Series mode)
Switchcraft 5-pin locking (TA5F)
Flexible, unbreakable steel cable.
1.5 Volt AA lithium or rechargeable
NiMH recommended
SMB: 2 hours (alkaline); 7.25 hours (lithium),
5 hours with 2500mAh NiMH
SMDB: 6 hours (alkaline); 14.5 hours
(lithium), 8.5 hours with 2500mAh NiMH
SMB: 2.7 oz.. (75.9 grams) with lithium battery
SMDB: 3.7 oz.. (105 grams) with lithium
SMB: 2.3 x 1.8 x 0.64 inches
(not including microphone)
58 x 46 x 16 mm
(not including microphone)
SMDB: 2.3 x 2.4 x 0.64 inches
(not including microphone)
58 x 60 x 16 mm
(not including microphone)
