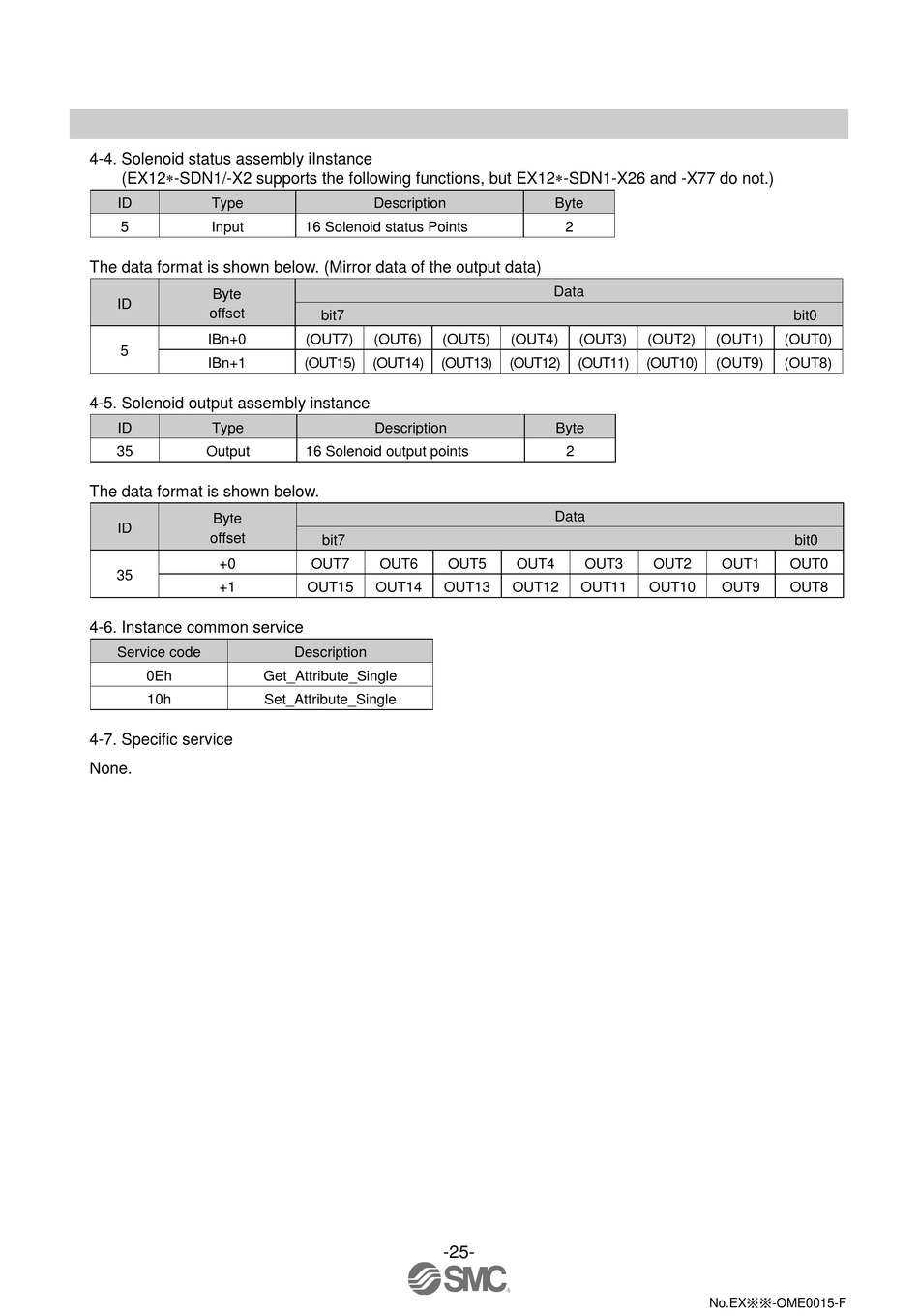

4-4. Solenoid status assembly iInstance
(EX12-SDN1/-X2 supports the following functions, but EX12-SDN1-X26 and -X77 do not.)
ID Type
5 Input
The data format is shown below. (Mirror data of the output data)
Byte
ID
offset
IBn+0
5
IBn+1
4-5. Solenoid output assembly instance
ID Type
35 Output
The data format is shown below.
Byte
ID
offset
+0
35
+1
4-6. Instance common service
Service code
0Eh
10h
4-7. Specific service
None.
Description
16 Solenoid status Points
bit7
(OUT7) (OUT6)
(OUT15) (OUT14)
Description
16 Solenoid output points
bit7
OUT7 OUT6
OUT15 OUT14
Description
Get_Attribute_Single
Set_Attribute_Single
Byte
2
Data
(OUT5) (OUT4) (OUT3)
(OUT13) (OUT12) (OUT11)
Byte
2
Data
OUT5 OUT4 OUT3
OUT13 OUT12 OUT11
-25-
bit0
(OUT2) (OUT1) (OUT0)
(OUT10) (OUT9) (OUT8)
bit0
OUT2 OUT1 OUT0
OUT10 OUT9 OUT8
