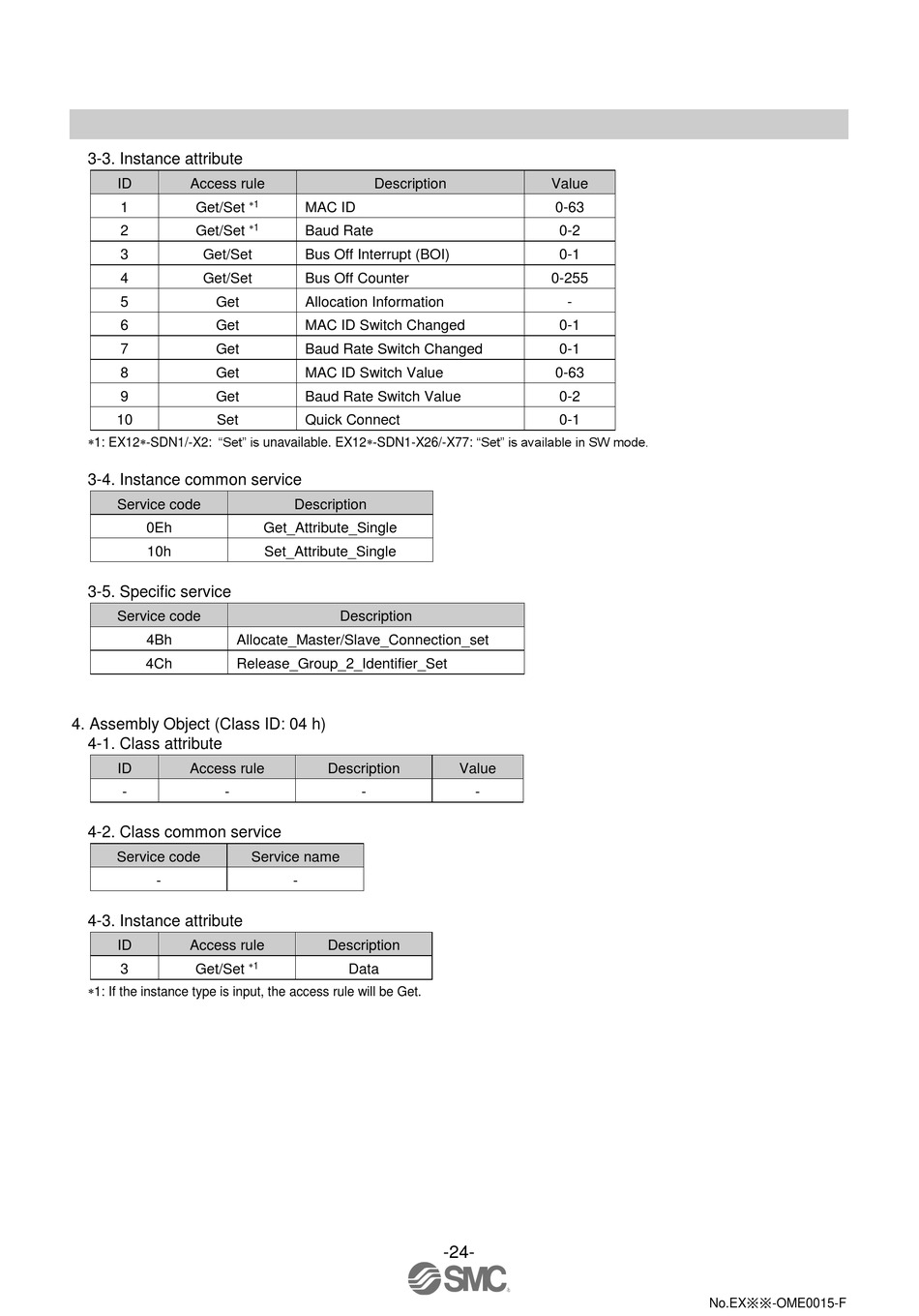

3-3. Instance attribute
ID Access rule
1 Get/Set
2 Get/Set
3 Get/Set
4 Get/Set
5 Get
6 Get
7 Get
8 Get
9 Get
10 Set
1: EX12-SDN1/-X2: "Set" is unavailable. EX12-SDN1-X26/-X77: "Set" is available in SW mode.
3-4. Instance common service
Service code
0Eh
10h
3-5. Specific service
Service code
4Bh Allocate_Master/Slave_Connection_set
4Ch Release_Group_2_Identifier_Set
4. Assembly Object (Class ID: 04 h)
4-1. Class attribute
ID Access rule
- -
4-2. Class common service
Service code
-
4-3. Instance attribute
ID Access rule
3 Get/Set
1: If the instance type is input, the access rule will be Get.
Description
1
MAC ID
1
Baud Rate
Bus Off Interrupt (BOI)
Bus Off Counter
Allocation Information
MAC ID Switch Changed
Baud Rate Switch Changed
MAC ID Switch Value
Baud Rate Switch Value
Quick Connect
Description
Get_Attribute_Single
Set_Attribute_Single
Description
Description
-
Service name
-
Description
1
Data
Value
0-63
0-2
0-1
0-255
-
0-1
0-1
0-63
0-2
0-1
Value
-
-24-
