Pan Assembly Procedure - Chore-Time G Plus Installation And Operator's Manual

Pan Breeder Feeder
3. Remove the grill.
Use a 7/8" (22 mm) spade bit to drill a hole at each strut location, as shown in Figure 26.
4. Use a sabre saw to cut along the inside circle, between the 7/8" holes, see figure 26.
5. Use (4) 14-1/2" (370 mm) 2 x 10's (50 x 250 mm) to construct the box sides, see figure 26.
It is important to use at least 10" (250 mm) sides for the box. Smaller lumber will not allow sufficient depth
for the grill to be placed in the box face down.
6. Nail the 3/4" plywood fixture to the box, see figure 26.
Figure 26 shows how the grill should fit down in assembly box. NOTE: Board is cut away for clarity only.

Pan Assembly Procedure

1. Place a Grill in the pan assembly box fixture. Make sure the hinge lip on the grill is located in the cut out
section of the box.
2. Two-Piece Model C2 Plus Feeders: Install the Cone Adjustment and Support Cone in the grill, as shown in
Figure 27.
One-Piece Model C2 Plus Feeders: Install the One-Piece Support Cone in the grill, as shown in Figure 27.
3. Interlock the hinge hook on the pan with the hinge lip on the grill. The pan should be face up, as shown in
Figure 28.
Flip the pan into the groove of the grill.
4. With the feeder still in the fixture, rotate the pan clockwise in the grill until pan locks engage.
The tabs (on the bottom of the pan) may be used to grip the pan when rotating.
5. Remove the pan assembly from the fixture.
6. Build all the required Feeder Assemblies for the house.
MF513J

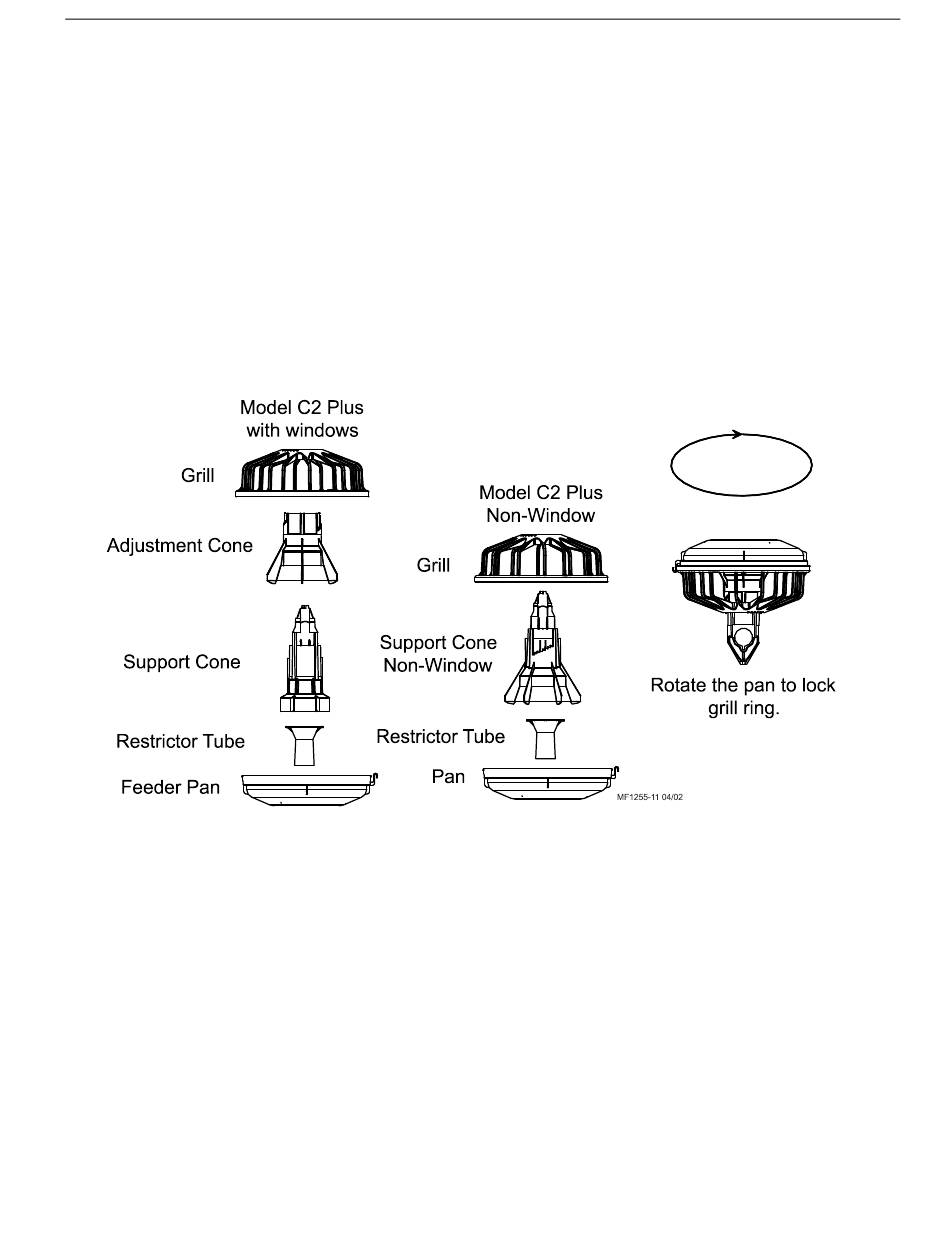

Figure 27. Model C2 Plus Feeder Assembly
Feeder Assembly Procedure
