Summary of Contents for Gemu 0322

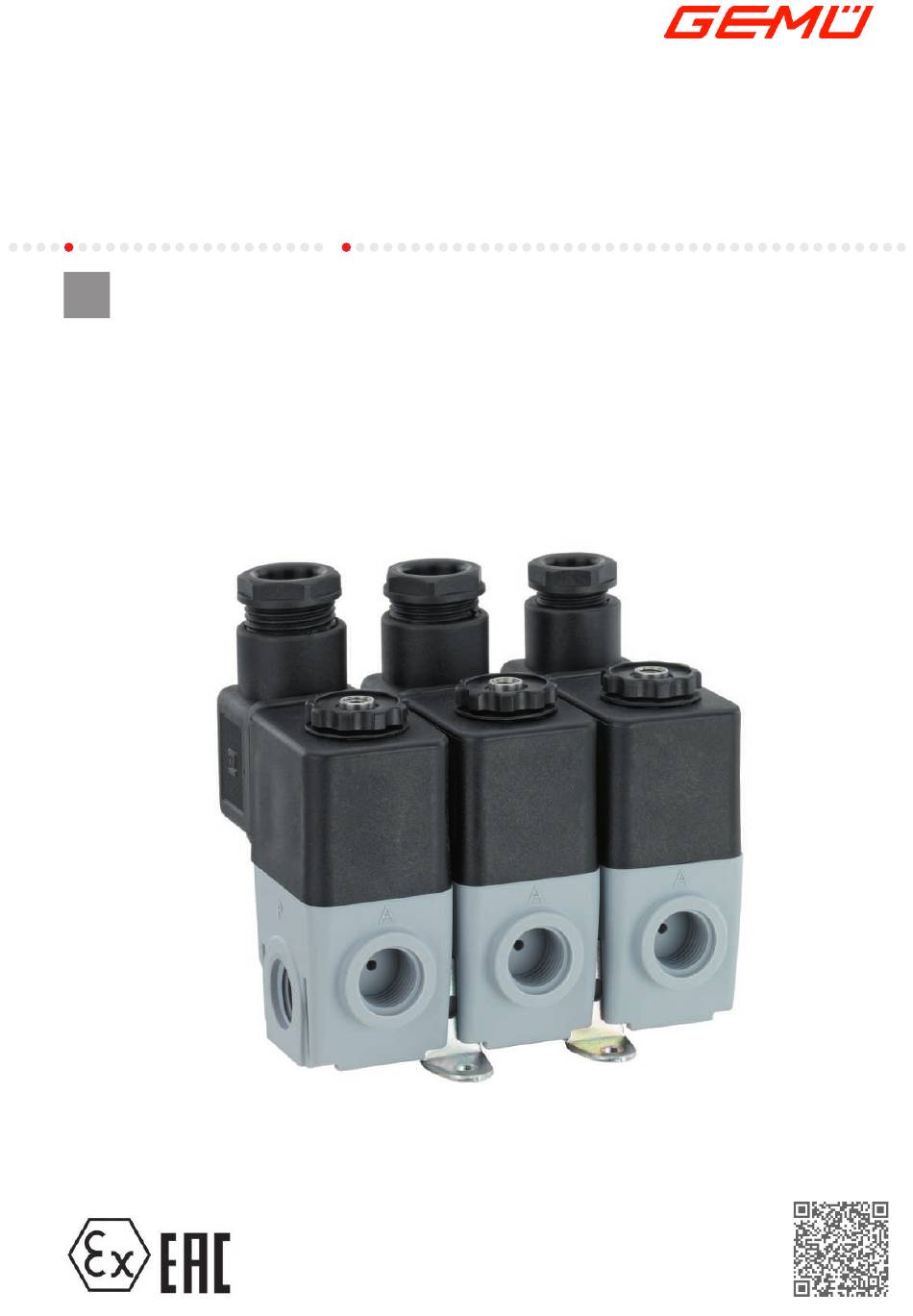

- Page 1 GEMÜ 0322 Electrically operated pilot solenoid valve Operating instructions further information webcode: GW-0322...
- Page 2 All rights including copyrights or industrial property rights are expressly reserved. Keep the document for future reference. © GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG 07.03.2023 GEMÜ 0322 2 / 20 www.gemu-group.com...
-
Page 3: Table Of Contents
16 Disposal .............. 17 Returns ..............18 Declaration of conformity in accordance with 2014/35/EU (Low Voltage Directive) and 2014/30/ EU (EMC Directive) ..........19 EU Declaration of conformity in accordance with 2014/34/EU (ATEX) ..........www.gemu-group.com 3 / 20 GEMÜ 0322... -
Page 4: General Information
The following signal words and danger levels are used: DANGER Imminent danger! ▶ Non-observance can cause death or severe injury. WARNING Potentially dangerous situation! ▶ Non-observance can cause death or severe injury. GEMÜ 0322 4 / 20 www.gemu-group.com... -
Page 5: Safety Information
3.3 Functional description 6. Define the areas of responsibility. GEMÜ 0322 is a 3/2-way pilot solenoid valve. GEMÜ 0322 is 7. Observe the safety data sheets. designed for single mounting (straight through design) or for 8. Observe the safety regulations for the media used. -
Page 6: Correct Use
1. Use the product in accordance with the technical data. The GEMÜ 0322 directly controlled 3/2-way pilot solenoid valve is designed for direct mounting or for modular battery mounting by using clips. The body is made of plastic. The coil is plastic encapsulated. -
Page 7: Order Data
Integrated RFID chip for electronic identification and (only for 24V DC version) traceability Order example Ordering option Code Description 1 Type 0322 Pilot solenoid valve, directly controlled, single mounting/battery mounting 2 DN DN 2 3 Body configuration Multi-port design www.gemu-group.com 7 / 20 GEMÜ 0322... - Page 8 Normally closed (NC) 8 Voltage/Frequency 24 V DC 9 Electrical connection Plug design A, with cable socket, without cable 10 Option Without 11 Maximum operating pressure 10 bar 12 Type of design Without 13 CONEXO Without GEMÜ 0322 8 / 20 www.gemu-group.com...
-
Page 9: Technical Data
II 2D Ex tD A21 IP65 T130°C Type examination certificate: PTB 03 ATEX 2018 X SIL: Product description: 3/2-way pilot solenoid valve GEMÜ 0322 Device type: Safety function: Due to the safety function, the valve is placed in the closed position. For this, the solenoid valve is closed when de-energized (switch position a1). - Page 10 DC coils are used for the AC version of normally open (NO) solenoid valves. For these AC applications with normally open (NO) valves a plug with an integrated bridge rectifier must be used (e.g. GEMÜ 1221 000 Z 0012 230 50/60). GEMÜ 0322 10 / 20 www.gemu-group.com...
-
Page 11: Dimensions
8 Dimensions 8 Dimensions 8.1 Single valve for direct mounting 81.0 G1/4 G1/4 30.0 38.0 Dimensions in mm 8.2 Battery mounting PG11 Ø4.3 30.0 30.0 30.0 Dimensions in mm www.gemu-group.com 11 / 20 GEMÜ 0322... -
Page 12: Manufacturer's Information
1. Check the suitability of the pilot solenoid valve prior to the installation! See chapter "Technical data". 10.1 Installation WARNING The equipment is subject to pressure! ▶ Risk of severe injury or death Depressurize the plant. ● Completely drain the plant. ● GEMÜ 0322 12 / 20 www.gemu-group.com... - Page 13 10 Installation 10.1.1 Single mounting - GEMÜ 0322 10.1.2 Battery mounting - GEMÜ 0322 Fig. 1: Single mounting - GEMÜ 0322 Fig. 2: Battery mounting - GEMÜ 0322 1. Fasten the pilot solenoid valve with two machine screws 1 1. Insert O-ring 7 into base recess.
-
Page 14: Electrical Connection
(usually 1500 A). Fig. 4: Rear of terminal block Item Name Supply voltage Supply voltage Not connected Earth GEMÜ 0322 14 / 20 www.gemu-group.com... -
Page 15: Plug Design A
Only actuate the manual override in case of malfunction! To activate / lock the manual override: Brown 1. Turn red button 90° clockwise with a screw driver. 2. To unlock turn it 90° anti-clockwise with a screwdriver. Blue Green/yellow www.gemu-group.com 15 / 20 GEMÜ 0322... -
Page 16: Commissioning
Returned ▶ Risk of severe injury or death goods can be processed only when this note is completed. If Depressurize the plant. ● Completely drain the plant. ● GEMÜ 0322 16 / 20 www.gemu-group.com... - Page 17 1. Clean the product. 2. Request a return delivery note from GEMÜ. 3. Complete the return delivery note. 4. Send the product with a completed return delivery note to GEMÜ. www.gemu-group.com 17 / 20 GEMÜ 0322...
-
Page 18: Declaration Of Conformity In Accordance With 2014/35/Eu (Low Voltage Directive) And 2014/30/Eu (Emc Directive)
GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8 74653 Ingelfingen-Criesbach, Germany declare that the product listed below complies with the directives named above. Description of the product: GEMÜ 0322 2023-03-01 Joachim Brien Head of Technical Department GEMÜ 0322 18 / 20 www.gemu-group.com... -
Page 19: Eu Declaration Of Conformity In Accordance With 2014/34/Eu (Atex)
2014/34/EU for intended use in potentially ex- plosive areas. Description of the product: Pilot solenoid valve GEMÜ 0322 Explosion protection designation: Gas: II 2G Ex mb II T4 Dust: II 2D Ex tD A21 IP65 T130°C... - Page 20 GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8, 74653 Ingelfingen-Criesbach, Germany Subject to alteration Phone +49 (0) 7940 1230 · info@gemue.de www.gemu-group.com 03.2023 | 88660002...
