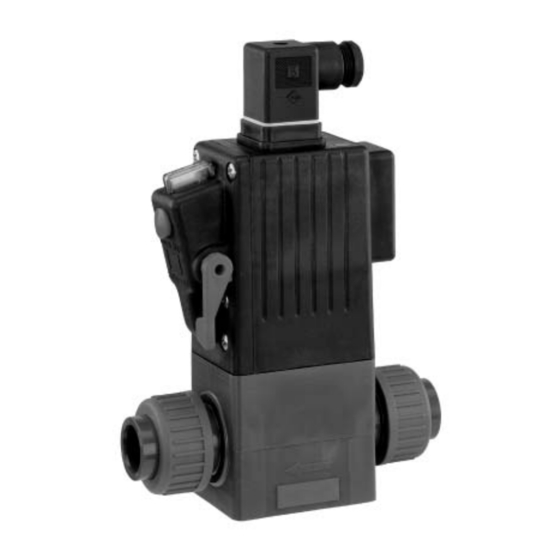

- Page 1 GEMÜ 205 Electrically operated solenoid valve Operating instructions further information webcode: GW-205...
- Page 2 All rights including copyrights or industrial property rights are expressly reserved. Keep the document for future reference. © GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG 01.07.2019 GEMÜ 205 2 / 24 www.gemu-group.com...
-
Page 3: Table Of Contents
15 Removal from piping ..........18 16 Disposal ..............18 17 Returns ..............18 18 Declaration of Incorporation according to 2006/42/ EC (Machinery Directive) ........... 19 19 Declaration of conformity according to 2014/68/EU (Pressure Equipment Directive) ......... 20 3 / 24 www.gemu-group.com GEMÜ 205... -
Page 4: General Information
The following signal words and danger levels are used: DANGER Imminent danger! ▶ Non-observance can cause death or severe injury. WARNING Potentially dangerous situation! ▶ Non-observance can cause death or severe injury. GEMÜ 205 4 / 24 www.gemu-group.com... -
Page 5: Safety Information
7. Observe the safety data sheets. 3.3 Function 8. Observe the safety regulations for the media used. The GEMÜ 205 directly controlled 2/2-way solenoid valve is designed for controlling media. During operation: When the valve is closed the medium flows into the valve 9. -
Page 6: Correct Use
The product is designed for installation in piping systems and for controlling a working medium. 1. Use the product in accordance with the technical data. 2. Protect the product from direct weathering. GEMÜ 205 6 / 24 www.gemu-group.com... -
Page 7: Order Data
2/2-way body 4 Connection type Spigot DIN 5 Valve body material PVC-U, grey 6 Seal material PTFE 7 Control function Normally closed (NC) 8 Voltage 230 V 9 Frequency 50/60 50 - 60 Hz 7 / 24 www.gemu-group.com GEMÜ 205... -
Page 8: Technical Data
DN 10 - 20 12 VA DN 25 - 50 30 VA DC operation Pull in DN 10 - 20 35 W DN 25 - 50 70 W Hold in DN 10 - 20 8 / 24 GEMÜ 205 www.gemu-group.com... -
Page 9: Dimensions
DN 40 DN 50 Dimensions in mm 7.2 Body dimensions 7.2.1 Solvent cement spigot (code 0, 30) Connection DN 15 DN 20 DN 25 DN 32 DN 40 DN 50 Code ød 21.3 26.7 33.4 9 / 24 www.gemu-group.com GEMÜ 205... - Page 10 7.2.4 Union end with insert (code 7) Material DN 10 DN 15 DN 20 Code ø d ø d G 3/4 G 1 1/4 øD øD Dimensions in mm 1) Valve body material Code 1: PVC-U, grey Code 20: PVDF 10 / 24 GEMÜ 205 www.gemu-group.com...
- Page 11 Code 0: Spigot DIN Code 1: Threaded socket DIN ISO 228 Code 2: Solvent cement socket DIN Code 7: Union end with DIN insert (socket) Code 30: Spigot - inch Code 31: Threaded socket NPT 11 / 24 www.gemu-group.com GEMÜ 205...
-
Page 12: Manufacturer's Information
Only install the solenoid valve in aligned pipes in order to ● avoid stresses in the valve body. Do not exceed the permissible operating pressure. ● Do not exceed the permissible temperature of the work- ● ing medium. GEMÜ 205 12 / 24 www.gemu-group.com... -
Page 13: Electrical Connection
3. Push the terminal block into the housing of the plug (acc. to DIN EN 175301-803, previously DIN 43650) until it aud- ibly clicks in position. 4. Ensure that the cable is not caught. 5. Tighten the locking screw on the plug. www.gemu-group.com 13 / 24 GEMÜ 205... -
Page 14: Commissioning
4. Check the tightness of the media connections and the solenoid valve itself. NOTICE 11.1 Optical position indicator ▶ If the torque is too high the thread may be stripped. Valve open Valve closed GEMÜ 205 14 / 24 www.gemu-group.com... -
Page 15: Operation
3. Shut off plant or plant component. 4. Secure plant or plant component against recommission- ing. 5. Depressurize the plant or plant component. 6. Actuate GEMÜ products which are always in the same position four times a year. www.gemu-group.com 15 / 24 GEMÜ 205... - Page 16 – Clean the product with a damp cloth. – Do not clean the product with a high pressure clean- ing device. Item Name Screw Plug Terminal block Pressure ring Gasket Cable entry GEMÜ 205 16 / 24 www.gemu-group.com...
-
Page 17: Error Clearance
Replace solenoid valve Armature blocked Replace solenoid valve Solenoid valve leaking Valve seat leaking Replace solenoid valve Solenoid valve does not close Manual override engaged/actuated Check the position of the manual override and close if necessary 17 / 24 www.gemu-group.com GEMÜ 205... -
Page 18: Removal From Piping
4. Remove the product from the piping with appropriate measures 16 Disposal 1. Pay attention to adhered residual material and gas diffu- sion from penetrated media. 2. Dispose of all parts in accordance with the disposal regu- lations/environmental protection laws. GEMÜ 205 18 / 24 www.gemu-group.com... -
Page 19: Declaration Of Incorporation According To 2006/42/Ec (Machinery Directive)
GEMÜ Serial number: from 29.12.2009 Project number: Type 205 Commercial name: GEMÜ 205 meets the following essential requirements of the Machinery Directive 2006/42/EC: 1.1.5.; 1.2.1.; 1.3.; 1.3.2.; 1.3.9.; 1.5.1.; 1.5.16.; 1.5.2.; 1.5.5.; 1.5.6.; 1.5.7.; 1.6.3.; 4.1.2.1.; 4.1.2.3.; 4.1.2.4.; 4.1.2.5.; 4.1.2.6. a);... -
Page 20: Declaration Of Conformity According To 2014/68/Eu (Pressure Equipment Directive)
ISO 9001 and ISO 14001. According to Article 4, Paragraph 3 of the Pressure Equipment Directive 2014/68/EU these products must not be identified by a CE-label. Ingelfingen-Criesbach 29-05-2018 Joachim Brien Head of Technical Department 20 / 24 GEMÜ 205 www.gemu-group.com... - Page 21 21 / 24 GEMÜ 205...
- Page 22 GEMÜ 205 22 / 24 www.gemu-group.com...
- Page 23 23 / 24 GEMÜ 205...
- Page 24 GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Subject to alteration Fritz-Müller-Straße 6-8, 74653 Ingelfingen-Criesbach, *88593456* Germany 07.2019 | 88593456 Tel. +49 (0)7940 123-0 · info@gemue.de www.gemu-group.com...
