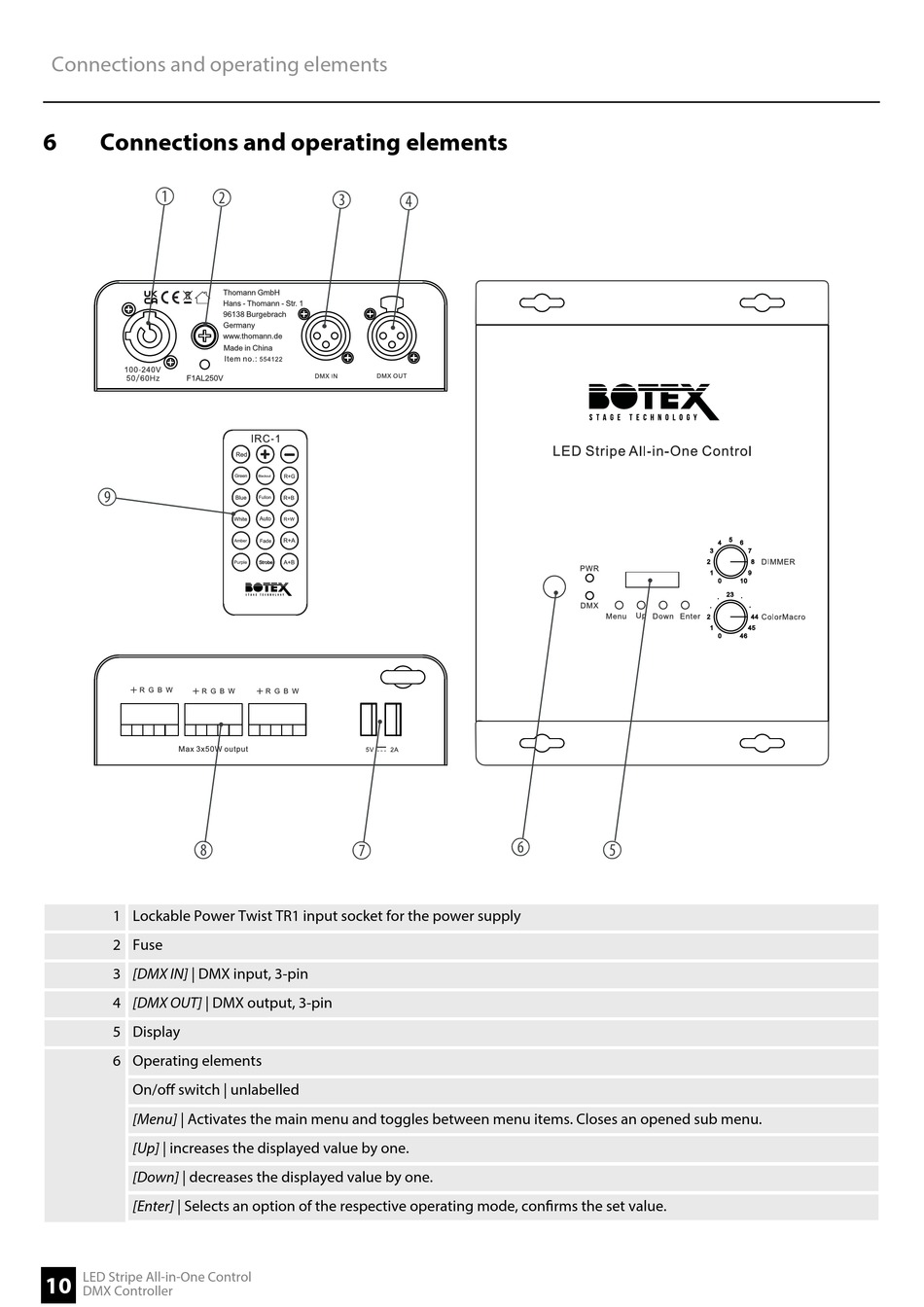

Connections and operating elements

6 Connections and operating elements
ö
#
*
)
1 Lockable Power Twist TR1 input socket for the power supply
2 Fuse
3 [DMX IN] | DMX input, 3-pin
4 [DMX OUT] | DMX output, 3-pin
5 Display
6 Operating elements
On/off switch | unlabelled
[Menu] | Activates the main menu and toggles between menu items. Closes an opened sub menu.
[Up] | increases the displayed value by one.
[Down] | decreases the displayed value by one.
[Enter] | Selects an option of the respective operating mode, confirms the set value.
