INSTALLATION, CONTINUED: PACKAGE LEDGE ADJOINING / HEADER ADJOINMENT / MIRROR

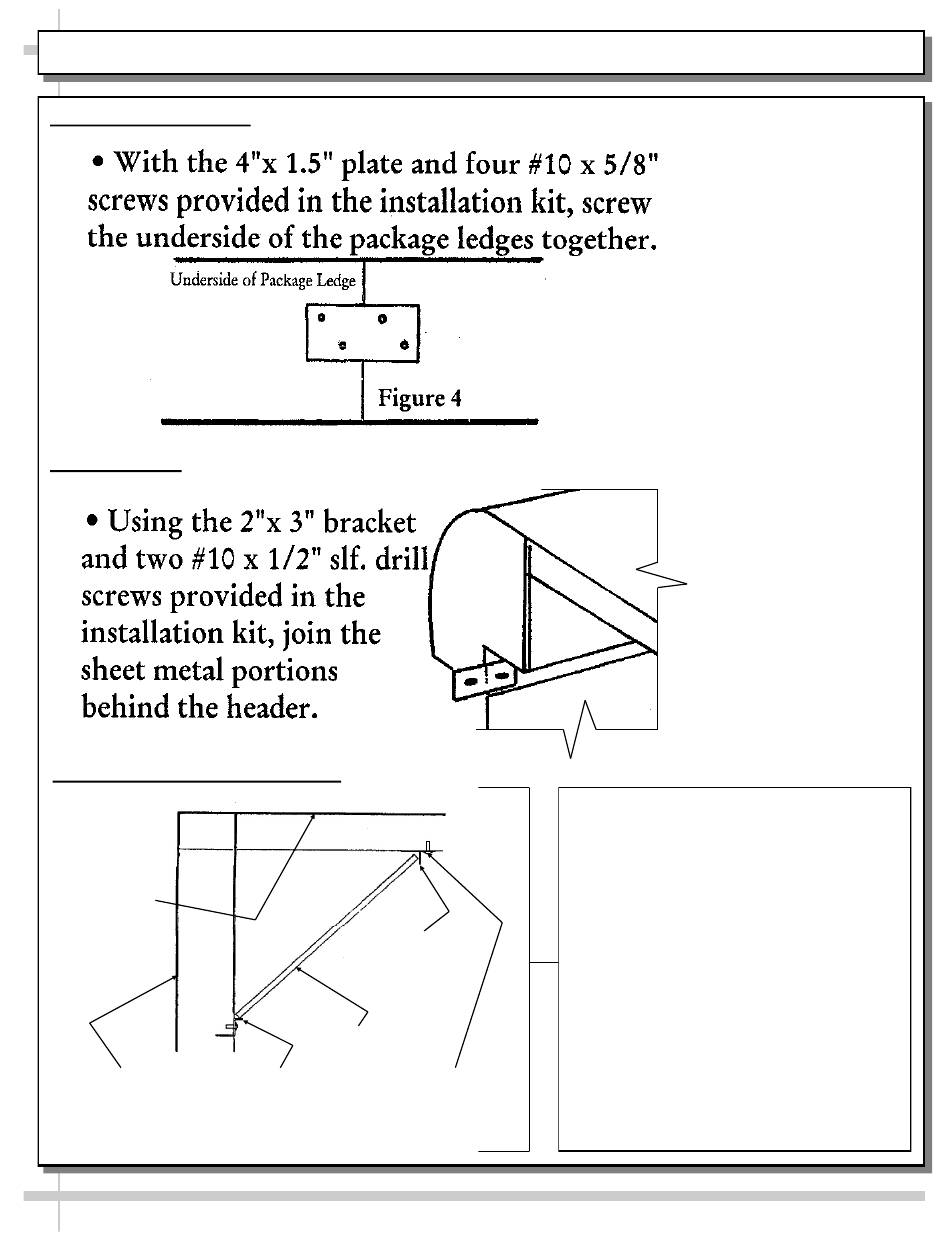

5. Join Package Ledges
6. Join Headers
7. Mirror Installation & Retrofitting
TOP OF
CASE
REAR OF
CASE
UPPER
MIRROR
MIRROR
LOWER UPPER MIRROR
MIRROR RETAINING
CHANNEL SCREWS
CAREFULLY FOLLOW THESE MIRROR
INSTALLATION INSTRUCTIONS:
1. TO MAINTAIN SAFETY, TWO PEOPLE
SHOULD PERFORM THIS STEP- BY-
STEP PROCEDURE.
2. LOOSEN UPPER MIRROR RETAINING
SCREWS.
3. PLACE LOWER END OF MIRROR
AGAINST LOWER MIRROR CHANNEL.
4. ROTATE UPPER MIRROR CHANNEL
INTO PLACE [BEHIND UPPER MIRROR
CHANNEL].
5. AFTER CHECKING THAT MIRROR IS
SECURE, TIGHTEN UPPER MIRROR
RETAINING SCREWS.
6. RE-CHECK THAT MIRROR IS
6
SECURELY HELD IN PLACE AND
WILL NOT COME LOOSE.
