Structural Concepts Addenda 20-53882 Installation And Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION AND
SCC P/N
OPERATING MANUAL
20-53882

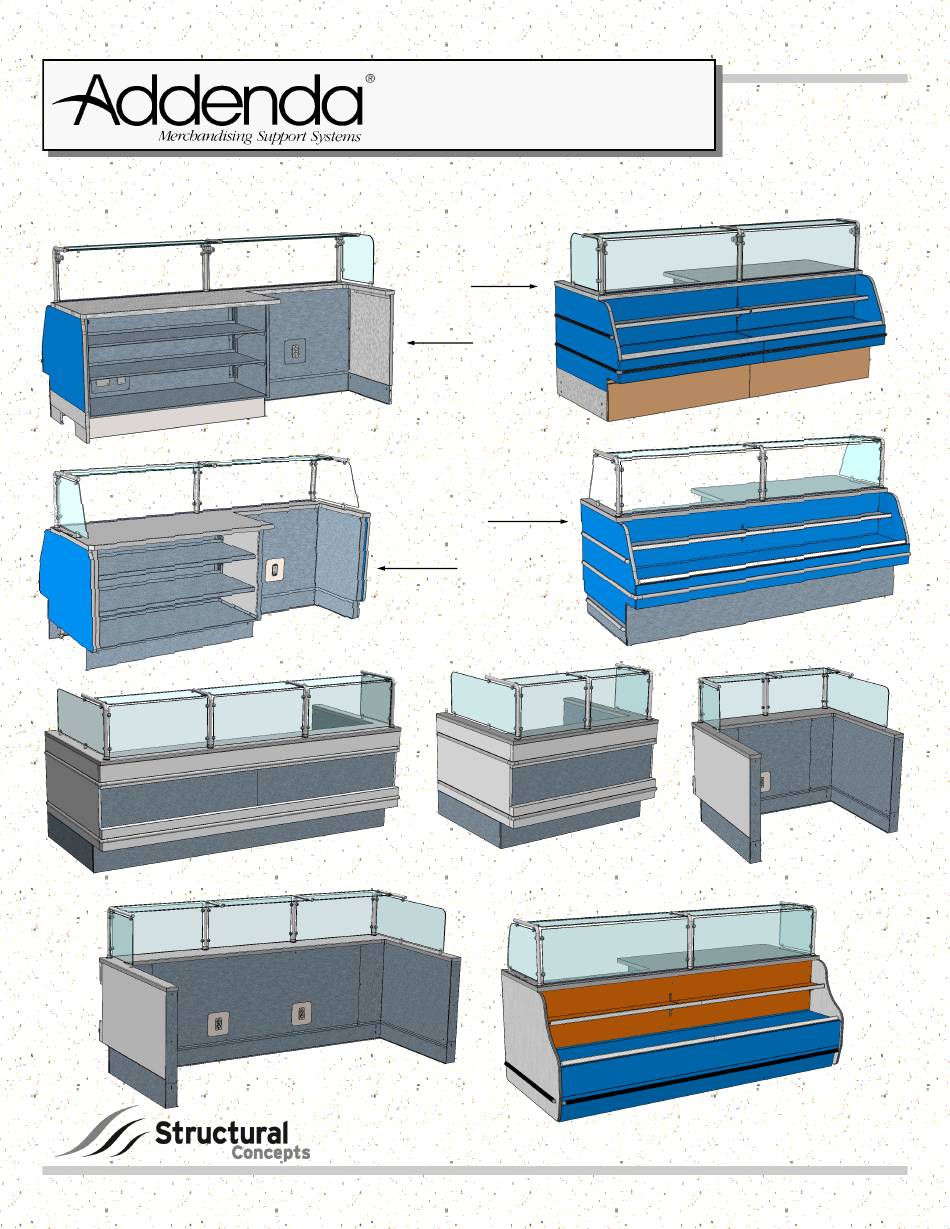

ADDENDA® SERIES AMBIENT HOUSING FOR STORE-PROVIDED REFRIGERATED OR AMBIENT
CASTER-BASED UNITS / GLASS SNEEZE GUARD / ELECTRICAL OUTLETS & BOXES
CDR7073
Front
CDR7073
Rear
CDR7073A
Front
CDR7073A
Rear
CDR6895 Front
CDR6895 Rear
CDR7489 Front
CDR7489 Rear
WSP100BSLH.7683 Front
888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts
Operating Manuals\Addenda\Ambient Housing For Store-Provided Units_Glass Sneeze Guard_Outlets_20-53882.pub
Rev F Date: 8.12.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Addenda 20-53882 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Structural Concepts Addenda 20-53882

Summary of Contents for Structural Concepts Addenda 20-53882

  • Page 1 READ AND SAVE THESE INSTRUCTIONS INSTALLATION AND SCC P/N OPERATING MANUAL 20-53882 ADDENDA® SERIES AMBIENT HOUSING FOR STORE-PROVIDED REFRIGERATED OR AMBIENT CASTER-BASED UNITS / GLASS SNEEZE GUARD / ELECTRICAL OUTLETS & BOXES CDR7073 Front CDR7073 Rear CDR7073A Front CDR7073A Rear CDR6895 Front CDR6895 Rear CDR7489 Front...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS / LIST OF MODELS REPRESENTED BY OPERATING MANUAL TABLE OF CONTENTS / LIST OF MODELS REPRESENTED BY OPERATING MANUAL ………… OVERVIEW / TYPE I ENVIRONMENTAL CONDITIONS / COMPLIANCE ……………………...…..INSTALLATION: REAR TOE-KICKS (OUTER/INNER/INNER END PANEL) / ELECTRICAL BOX ... INSTALLATION, CONT’D: SHIPPING BRACKET REMOVAL / CASE REMOVAL / ALIGNMENT ..

  • Page 3: Overview / Type I Environmental Conditions / Compliance

    OVERVIEW / TYPE I ENVIRONMENTAL CONDITIONS / COMPLIANCE  OVERVIEW This merchandiser is designed to display non- hazardous, packaged/unpackaged bakery products.  These Structural Concepts merchandisers are designed to merchandise packaged products at COMPLIANCE ambient temperatures.   Performance issues when in violation of applicable...
  • Page 4 OVERVIEW / TYPE I ENVIRONMENTAL CONDITIONS / COMPLIANCE COMPLIANCE  Performance issues when in violation of applicable NEC, federal, state and local electrical codes are not covered by warranty.  See below compliance guideline. CAUTION! GFCI BREAKER REQUIREMENT If N.E.C. (National Electric Code) or your local code requires GFCI (Ground Fault Circuit Interrupter) protection, you MUST use a GFCI breaker in lieu of a GFCI receptacle.

  • Page 5: Installation: Rear Toe-Kicks (Outer/Inner/Inner End Panel) / Electrical Box

    INSTALLATION: REAR TOE-KICKS (OUTER/INNER/INNER END PANEL) / ELECTRICAL BOX 1. Rear Toe-Kick Removal 2. Side Sneeze Guards  Rear toe-kicks may be removed to allow access  Side sneeze guards MAY NOT be on case during to levelers as well as greater cleanability of unit. shipment.

  • Page 6: Installation, Cont'd: Shipping Bracket Removal / Case Removal / Alignment

    INSTALLATION, CONT’D: SHIPPING BRACKET REMOVAL / CASE REMOVAL / ALIGNMENT 4. Remove Shipping Brackets From Skid  Shipping brackets hold case to skid during shipment. Note: Illustrations Shown May Not  After case has been safely shipped to facility, Exactly Reflect Every Feature or Option of Your Particular Merchandiser.

  • Page 7: Floor

    INSTALLATION, CONT’D: ADJUST LEVELERS / INSERT AND SEAL INNER CLOSE-OFF TO FLOOR 9. Inner Adjustable Close-Off / Outer End 8. Adjust Levelers Panel Base / Seal Close-Off To Floor  Adjust levelers so the case is level and plumb.  Use adjustable wrench to adjust levelers.

  • Page 8: Installation, Cont'd: Wiring Route For Model Cdr6895

    INSTALLATION, CONT’D: WIRING ROUTE FOR MODEL CDR6895 12. Electrical Box / Plate 11. Wiring Route For Model CDR6895   Wiring from adjoining case can be connected to This unit is specifically designed to accompany case-to-case wiring. rear, sides or underside of 2 x 4 electrical box. ...

  • Page 9: Installation, Cont'd: Wiring Route For Model Cdr7073

    INSTALLATION, CONT’D: WIRING ROUTE FOR MODEL CDR7073 (SIMILAR TO 7073A, 7279 & 7279A) 14. Electrical Boxes / Plates 13. Wiring Route For Model CDR7073 (Similar To CDR7073A, CDR7279 and CDR7279A)  Openings are provided at rear-left for wiring to be routed in and around to the 4 x 4 and 2 x 4 ...

  • Page 10: Installation, Cont'd: Wiring Route For Model Cdr7489

    INSTALLATION, CONT’D: WIRING ROUTE FOR MODEL CDR7489 16. Removable Electrical Outlet Plates 15. Wiring Route For Model CDR7489   Openings are provided at rear for wiring to be This unit is capable of accompanying case-to- case wiring. routed in and around to the 2 x 4 electrical box. ...

  • Page 11: Serial Label & Location / Information Listed / Additional Tech Info & Service

    For additional technical information and service, see the TECHNICAL SERVICE page in this  manual for instructions on contacting Structural Concepts’ Technical Service Department. See images below for samples of both refrigerated and non-refrigerated serial labels. ...

  • Page 12: Cleaning Schedule (General): To Be Performed By Store Personnel

    CLEANING SCHEDULE (GENERAL): TO BE PERFORMED BY STORE PERSONNEL FREQUENCY INSTRUCTIONS Daily Glass Sneeze Guards (At Side and Front): Clean with household or commercial glass cleaner and paper towel (or soft cloth) Daily Front Panel / Lower Front Panel / Toe-Kick, Etc.: Wipe off surfaces with warm water, mild soap solution and non-abrasive cloth.

  • Page 13: Cleaning Schedule (Stainless Steel): To Be Performed By Store Personnel

    CLEANING SCHEDULE (STAINLESS STEEL): TO BE PERFORMED BY STORE PERSONNEL Stainless Steel Cleaning General Stainless Steel Surface Cleaning (To Be Performed As Often As Needed):  Certain grades of stainless steel are more prone to corrosion than others.  Stainless steel can be exposed to many contaminants, which if left untreated can cause stains and rust. ...

  • Page 14: Technical Service Contact Information & Warranty Information

    DAMAGE, STORE’S AMBIENT CONDITIONS, ETC.) LIMITED WARRANTY Overview: All sales by Structural Concepts Corporation (hereafter referred to as “SCC”) are subject to the following limited warranty. “Goods” refers to the product or products being sold by SCC. Warranty Scope: Warranty is for equipment sold in the United States, Canada, Mexico and Puerto Rico. Equipment sold elsewhere may carry modified warranties.
