ADDENDA
MODEL PC "WALL SERIES" CASES*
> AMBIENT PASTRY UNITS > TISSUE/BAG DISPENSERS > GLASS HINGED FRONT DOORS
* This Manual Pertains To Models PC3982, PC5682, PC5682.5584A, PC5682.6744, PC5682.6769, PC7482 And Other CDRs.
USER MANUALS\86772_ADDENDA_USER MANUAL_PC(L)82_AMB_WALL SERIES_GLS FRT DRS_PASTRY CASE
READ AND SAVE THESE INSTRUCTIONS
®
MANUAL

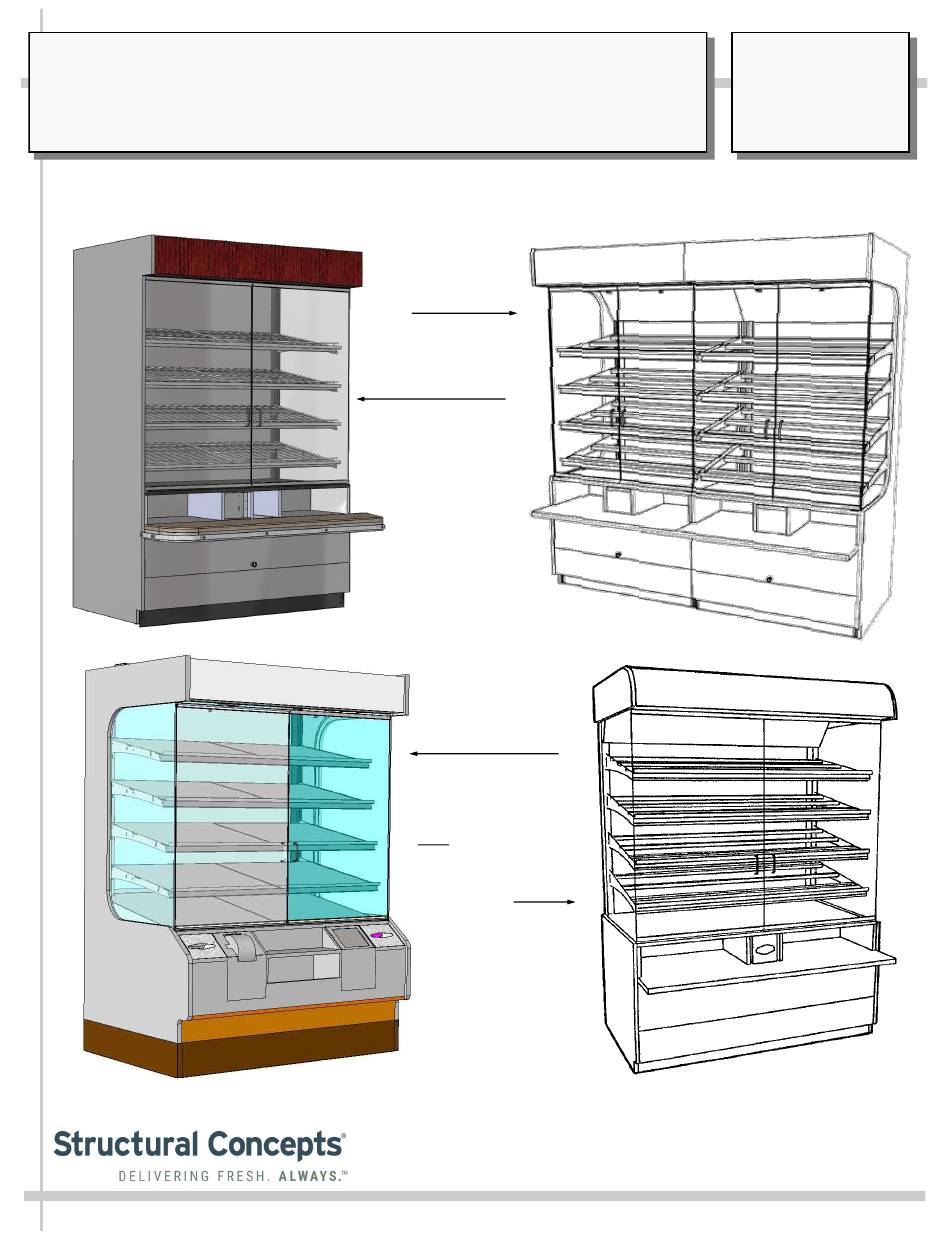

PC3982.6025
Lineup
PC5682.6744 / Wire
Shelving Racks /
Waste Bin / Solid
Surface Front Shelf
PC5682.5584 / Solid
Shelving / Waste Bin /
Tissue Box Holders /
Front Shelf
Note: Unit is Similar
to PC5682.6769.
Structural
Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
USER
PC5682
SCC P/N
86772
REV L DATE: 07/25/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADDENDA 86772 and is the answer not in the manual?

Questions and answers

Summary of Contents for Structural Concepts ADDENDA 86772

  • Page 1 READ AND SAVE THESE INSTRUCTIONS ADDENDA ® USER SCC P/N 86772 MANUAL MODEL PC “WALL SERIES” CASES* > AMBIENT PASTRY UNITS > TISSUE/BAG DISPENSERS > GLASS HINGED FRONT DOORS PC3982.6025 Lineup PC5682.6744 / Wire Shelving Racks / Waste Bin / Solid Surface Front Shelf PC5682.5584 / Solid Shelving / Waste Bin /...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS ..………... INSTALLATION / POSITIONING AND ALIGNING / ADJUSTING LEVELERS .…………...………….. INSTALLATION, CONTINUED: BOLTING ADJOINED UNITS ………………………………………….. INSTALLATION, CONTINUED: PACKAGE LEDGE ADJOINING / HEADER ADJOINMENT / MIRROR ………………………………………………………………………………………………...
  • Page 3: Overview / Type / Compliance / Warnings / Precautions / Wiring / Plugs

    OVERVIEW / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING DIAGRAM / CORDS & PLUGS PRECAUTIONS OVERVIEW • • These Structural Concepts cases should be installed and Following are important precautions to prevent damage to unit or merchandise. Read carefully! operated according to these instructions to ensure proper performance. Improper use will void warranty.
  • Page 4: Installation / Positioning And Aligning / Adjusting Levelers

    INSTALLATION / POSITIONING AND ALIGNING / ADJUSTING LEVELERS 1. Remove Unit From Skid 2. Position & Align Case Alongside Others Caution! case must always remain supported or • Before adjusting levelers, make certain that the center of gravity will allow case to fall. Slide unit to case is in proper position and, if required, aligned rear of skid and tip backward off skid.
  • Page 5: Installation, Continued: Bolting Adjoined Units

    INSTALLATION, CONTINUED: BOLTING ADJOINED UNITS 4. Bolting Adjoined Units • View shown is after removal of end panel. • Units are bolted together at locations shown. • Eight 1/4-20 x 2 1/2” bolts & nuts provided.
  • Page 6: Installation, Continued: Package Ledge Adjoining / Header Adjoinment / Mirror

    INSTALLATION, CONTINUED: PACKAGE LEDGE ADJOINING / HEADER ADJOINMENT / MIRROR 5. Join Package Ledges 6. Join Headers 7. Mirror Installation & Retrofitting CAREFULLY FOLLOW THESE MIRROR INSTALLATION INSTRUCTIONS: 1. TO MAINTAIN SAFETY, TWO PEOPLE SHOULD PERFORM THIS STEP- BY- STEP PROCEDURE. TOP OF 2.
  • Page 7: Electrical Fundamentals: Field Wired Models

    ELECTRICAL FUNDAMENTALS: FIELD WIRED MODELS 1. Electrical Fundamentals (Field Wired Models) Electrical access is at lower-right side of case (when facing rear of case). • 120V single phase leads provided. • Model PC7485.4175A is shown below. Field Wiring...
  • Page 8: Electrical Fundamentals, Continued: Plug/Cord Units

    ELECTRICAL FUNDAMENTALS, CONTINUED: PLUG/CORD UNITS 2. Electrical Fundamentals (Plug/Cord Units) Warning: Disconnect power before providing maintenance/service to unit. On units with plug/cord setup, electrical access is at lower-right side of case (when facing rear of case). • J-Box and 120V single phase cord and plug is provided. •...
  • Page 9: Electrical Fundamentals, Continued: T-8 / Fluorescent Bulbs

    ELECTRICAL FUNDAMENTALS, CONTINUED: T-8 / FLUORESCENT BULBS 3. T-8 / Fluorescent Light Fixtures Electrical Box, Header Header Warning: Disconnect power before providing maintenance/service to unit. Ballast Access/Removal Assembly or disassembly and servicing to be accomplished by licensed electrical contractor. • The light ballast is located inside the header.
  • Page 10: Electrical Fundamentals, Continued: Led Lamps

    ELECTRICAL FUNDAMENTALS, CONTINUED: LED LAMPS 4. LED Style Light Fixtures Removal of Faulty LED Lights: • Contact Structural Concepts’ Technical Service Department for replacement LED lights. • Turn off LED light switch. Plug • To remove faulty LED light, follow these steps: A.
  • Page 11: Electrical Fundamentals, Continued: Light Switch, Receptacle And Plugs

    ELECTRICAL FUNDAMENTALS, CONTINUED: LIGHT SWITCH, RECEPTACLE AND PLUGS • Lighting is in series so all lights must be 5. Light Switch, Receptacles and Plugs plugged in or receptacles capped for the • Depending upon model, light switch may be located case to light.
  • Page 12: Maintenance: Shelf Assembly Removal

    MAINTENANCE: SHELF ASSEMBLY REMOVAL 1. Shelf Assembly Removal • For lighted shelving, unplug the light cord. • Light shelf cord harnesses plug into the back side of the header electrical box. • Detach cord from the rear frame support. • Slide light assembly back to unlock, then rotate up to separate from brackets.
  • Page 13: (Certain Models Only)

    MAINTENANCE, CONT.: FRONT FLIP-UP DOOR / WASTE BIN ACCESS (CERTAIN MODELS ONLY) 2. Front Flip-Up Door / Waste Bin Access Model PC5682.6744 Shown May • Front flip-up door allows access to waste bin Not Exactly Reflect Every Feature or (and entire waste bin area). Option of Your Particular Case.
  • Page 14: Bin Access

    MAINTENANCE, CONT.: AXIAL EXHAUST FANS / FLIP-DOWN WASTE BIN & TISSUE BIN ACCESS 4. Front Flip-Down Waste Bin/Tissue Box Access 3. Axial Exhaust Fans (Optional) • Note: These features are not on all cases. • Axial exhaust fans help to keep inside air •...
  • Page 15: General Cleaning

    GENERAL CLEANING FREQUENCY INSTRUCTIONS Daily End Panels, Front Panel, Toe-Kicks, Etc.: Wipe off all surfaces with warm water and mild soap solution and non-abrasive cloth. Daily Wood, Laminate and Painted Surfaces (Including Shelves): Clean with mild soap and water solution and a soft cloth. Daily ENGINEERED (SYNTHETIC) QUARTZ: See next page.
  • Page 16: Engineered (Synthetic) Quartz Care And Maintenance

    ENGINEERED (SYNTHETIC) QUARTZ CARE AND MAINTENANCE Engineered Engineered (Synthetic) Quartz Overview: Quartz • Engineered (synthetic) quartz is a ‘man-made’ product. It is sometimes called “engineered stone.” It is made from Overview crushed quartz particles bonded with polyester, styrene, resin, pigments and tert-butyl peroxybenzoate. •...
  • Page 17: Troubleshooting

    TROUBLESHOOTING Product is Drying Out Check the relative humidity in the store. Check that axial fans are properly functioning (optional). System is not Operating Verify that the utility power is on. Verify that the MAIN power/light switch is on. Check the circuit breaker box for tripped circuits. If used, verify that the unit is properly plugged in.
  • Page 18: Serial Label & Location / Information Listed / Add'l Tech Info & Service

    For additional technical information and service, see (on the header, at case rear, behind panels or the TECHNICAL SERVICE page in this manual for toe-kicks, on electrical boxes, etc.). instructions on contacting Structural Concepts’ • Serial labels contain electrical information as well Technical Service Department.
  • Page 19: Technical Service Contact Information / Warranty Information

    STRUCTURAL CONCEPTS TECHNICAL SERVICE CONTACT INFORMATION & LIMITED WARRANTY YOU MUST HAVE THE FOLLOWING INFO AVAILABLE TECH SERVICE/WARRANTY CONTACT INFO: BEFORE CONTACTING STRUCTURAL CONCEPTS: 1 (800) 433-9490 / EXTENSION 1 SERIAL NO. / MODEL NO. / STORE NO. / STORE...
