ELECTRICAL FUNDAMENTALS, CONTINUED: LIGHT SWITCH, RECEPTACLE AND PLUGS
5. Light Switch, Receptacles and Plugs
•
Depending upon model, light switch may be located
on electrical box (top center forward of bulbs). All of
the lights should come on at the same time. First
time lighting may require a short warm-up period.
•
Initial dim or flickering bulbs is normal. If lights do
not turn on, check all of the raceway plugs.
ON
OFF
Rocker Switch
•
Lighting is in series so all lights must be
plugged in or receptacles capped for the
case to light.
•

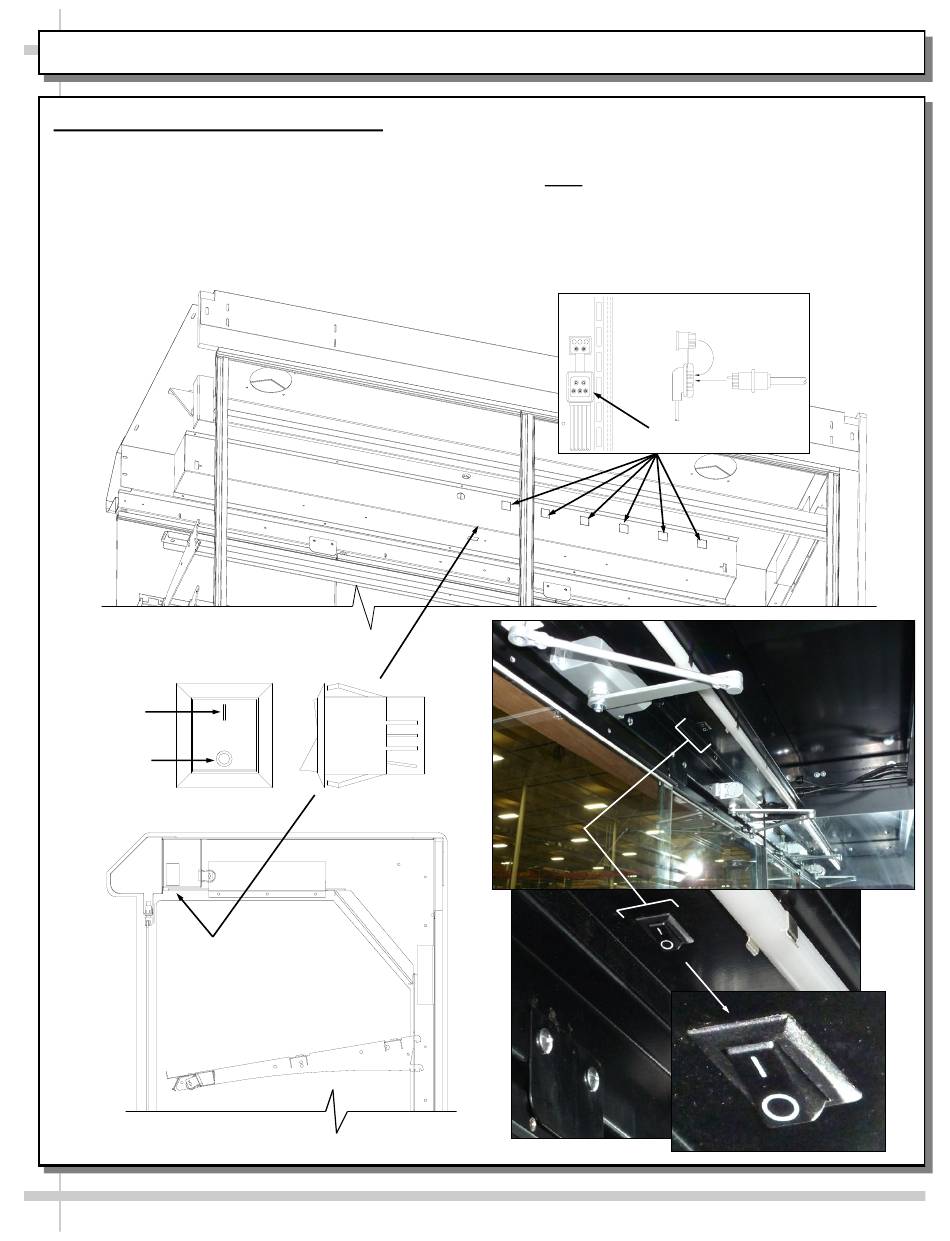

Note: Illustration below may not reflect every
feature or option of your particular case.
11
Cap
Plug
Receptacle
