Summary of Contents for Omcan VP-CN-0971

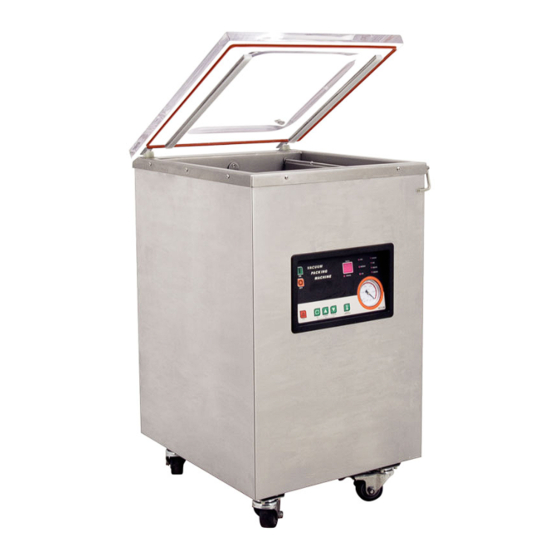

- Page 1 Vacuum Packaging Machines Models VP-CN-0971, 1220, 1060, 1273 Items 24081, 24082, 24083, 31824 Instruction Manual Revised - 10/04/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model VP-CN-0971 / Model VP-CN-1220 Model VP-CN-1060 / Model VP-CN-1273 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation -------------------------------------------------------------------------------------------- 6 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ----------------------------------------------------------------------------------- 8 - 11... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 6: Technical Specifications
Technical Specifications Model VP-CN-0971 VP-CN-1220 VP-CN-1060 VP-CN-1273 Type Double Seal Bar Single Seal Bar Double Seal Bar Seal Bar 16.5” x 0.3” 15.7” x 0.3” 20.5” x 0.3” Dimensions 420 x 8mm 400 x 8mm 520 x 8mm Cycle Time... -
Page 7: Operation
Operation NEW TYPE INSTRUCTIONS Turn on the power supply, long press the “SET” to enter the memory function, there will “P0” to “P9” showed on the screen which means enter the memory setting mode, each time the “SET” is pressed which means to switch the preset parameter template, select P0 parameter template long press the “SET”... -
Page 8: Maintenance
See the below examples of locations for the oil tank. NOTE: FILL WITH NEW FOOD GRADE OIL. Note: hydraulic oil to be used is Omcan item 15713. - Page 9 Maintenance REPLACING THE SEALING TAPE AND HEATING WIRE 1. Disconnect the cable from the pin, then pick the complete sealing bar up from the vacuum chamber. 2. Remove the pressing stick from the complete sealing bar by cross screwdriver, then remove the stainless steel base.
- Page 10 Maintenance 5. Put one side of a new heating wire into the fastener groove and tighten it with the Allen Key. 6. Put the other side of the heating wire into the other side fastener groove, then screw it with the Allen Key. 7.
-
Page 11: Troubleshooting
Maintenance 10. Put plastic clamps on the sides of the sealing bar. 11. Install the stainless steel base and pressing stick. 12. Connect the cable of the complete sealing bar to the pin, then put the sealing bar back in the vacuum chamber to complete the installation. - Page 12 Pressing stick presses the bag Replace the pressing stick. open. Abnormal sound or tripping when Abnormal sound of fan of pump Call Omcan. running, black smoke or oil drop. motor. Blockage in air intake and/or pip. Unblock. Insufficient oil, or non standard oil Add more oil, or replace with food used.
-
Page 13: Parts Breakdown
Parts Breakdown Model VP-CN-0971 24081 Model VP-CN-1220 24082 Model VP-CN-1060 24083 Model VP-CN-1273 31824... - Page 14 Parts Breakdown Model VP-CN-0971 24081 Item No. Description Position Item No. Description Position Item No. Description Position AE448 Lid for 24081 AE454 Vacuum Meter for 24081 AE466 Gas Flushing Valve for 24081 AE449 Lid Gasket for 24081 AE462 Fan for 24081...
- Page 15 Parts Breakdown Model VP-CN-1060 24083 Item No. Description Position Item No. Description Position Item No. Description Position AE497 Lid for 24083 AE504 Vacuum Meter for 24083 AE516 Gas Flushing Valve for 24083 AE498 Lid Gasket for 24083 AE512 Fan for 24083 AE520 Sealing Transformer for 24083 AE499...
-
Page 16: Electrical Schematics
Electrical Schematics Model VP-CN-0971 24081... - Page 17 Electrical Schematics Model VP-CN-1220 24082 Model VP-CN-1060 24083...
- Page 18 Electrical Schematics Model VP-CN-1273 31824...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
