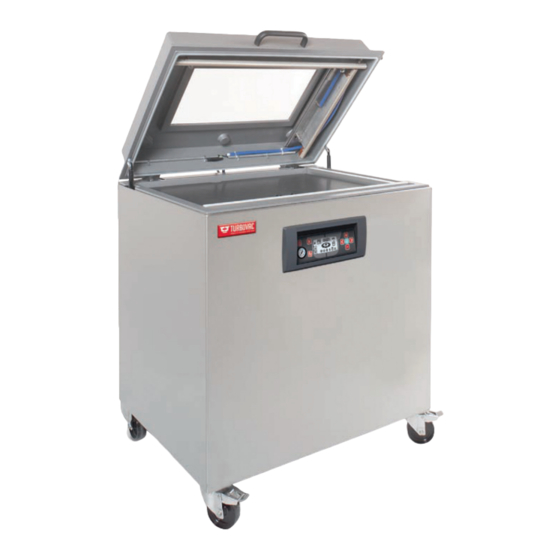

Mobile Vacuum Packaging
Models VP-NL-0040-M, 0040-MS, 0063-M
Items 50003, 50004, 50005
Instruction Manual
Revised - 02/24/2022
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-NL-0040-M and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan VP-NL-0040-M

Summary of Contents for Omcan VP-NL-0040-M

  • Page 1 Mobile Vacuum Packaging Models VP-NL-0040-M, 0040-MS, 0063-M Items 50003, 50004, 50005 Instruction Manual Revised - 02/24/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model VP-NL-0040-M / Model VP-NL-0040-MS / Model VP-NL-0063-M Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation --------------------------------------------------------------------------------------- 7 - 14...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 1 YEAR PARTS AND LABOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 6: Technical Specifications

    Technical Specifications Model VP-NL-0040-M VP-NL-0040-MS VP-NL-0063-M 31.5” x 19.7” Seal Length 19.7” / 500mm 800 x 500mm Vacuum Pump 40 m 63 m 10 Programmable Control Maximum Product 6.9” / 175mm 8.5” / 215mm Height 19.7” x 31.5” x 8.5”...

  • Page 7: Installation

    Installation • Assure a good connection and use high-quality materials. COMPRESSED AIR CONNECTION FOR ADDITIONAL SEALING PRESSURE • Additional sealing pressure is usually recommended for MAP applications only. • The M40-M80 and the L10-L60 models with the option Gas/MAP are standard equipped with a compressed air inlet.

  • Page 8: Operation

    Operation OPERATING THE MACHINE WITH ONE-PROGRAM CONTROL SYSTEM On: Turns the machine on: • The machine will start up in the most-recently used program. • The pump of a machine with a transparent cover will start when the cover is closed. Off: Turns the machine off: •...
  • Page 9 Operation Service Symbol: • After a number of operating hours or packing cycles, the service symbol will briefly appear on the display when the machine is turned on. In addition, the display indicates how many hours or cycles remain before an oil change is required. •...
  • Page 10 Operation OPERATING THE MACHINE WITH TEN-PROGRAM CONTROL SYSTEM On: Turns the machine on: • The machine will start up in the most-recently used program. • The pump of a machine with a transparent cover will start when the cover is closed. Off: Turns the machine off: •...
  • Page 11 Operation Multi-Functional button: Performs various functions, depending on the active menu: Home menu • No effect while in the PA program. • For programs P1-9, displays the entered values. Settings menu • For specific functions, like soft-air, clean cut seal etc., the button is used to turn the function ON/OFF.
  • Page 12 Operation THE ONE-PROGRAM CONTROL SYSTEM PROVIDES ONLY ONE PROGRAM (P1) • There is no memory to store additional values. • The machine starts with the values that were most-recently used. • The pump starts upon closing of the cover and stops when it is reopened. PROGRAMMABLE FUNCTIONS The following function values may be customized for P1: •...
  • Page 13 Operation while the cover stays closed and the machine will turn off automatically after about 15 minutes. - These cycles are necessary to cool down the machine and to allow any moisture in the oil of the pump to evaporate. TEN-PROGRAM CONTROL SYSTEM •...

  • Page 14: Maintenance

    Operation 8. Press the menu button to save the entered values and to return to the Home menu. TURNING PROGRAM FUNCTIONS ON/OFF The following functions can be turned ON/OFF for each program P1-P9: Vacuum Plus: on/off, in seconds. Gassing: on/off, in seconds or in mbar (only with sensor). Clean Cut Controlled (CCC) Seal: on/off, in seconds.
  • Page 15 Maintenance • After passing the service limit, the display will indicate the negative number of excess operating hours or cycles. VACUUM PUMP To protect the vacuum pump, proper maintenance is important. Carry out the following tasks carefully: • Check the vents and clean as necessary before turning on the machine to assure proper cooling of the pump.
  • Page 16 Maintenance SEAL BEAMS AND COUNTER BEAMS To achieve a quality seal, it is necessary that the seal beam and counter beam are in good condition. 1. Clean the seal and counter beams daily with a dry cloth. 2. Replace the Teflon tape on the seal beam if damaged and replace the sealing wire if kinked. 3.
  • Page 17 Maintenance NOTES • After removal of the wires, check the strips of fiber glass for damage; replace if necessary. • Check the condition of the tensioning springs at both ends of the seal beam; replace if necessary. • Using the seal beam without the springs may cause the sealing wires to break. •...
  • Page 18 Maintenance APPLYING TEFLON TAPE TO SEAL BEAM 1. Position the new Teflon tape on the seal beam and cut out the corners. 2. Remove the protective backing from the Teflon tape. 3. Apply the new tape to the seal beam; the tape has an adhesive strip on both sides. 4.

  • Page 19: Troubleshooting

    Troubleshooting Fault/Symptom Possible Cause Remedy Machine does not work. The machine is not plugged in. Plug the machine into the electrical outlet. The ground fault safety in the Check the electrical panel. electrical panel has tripped. A fuse in the electrical panel is Check the electrical panel.
  • Page 20 Troubleshooting The machine does not seal. The bag is not correctly positioned Adjust the bag position. over the sealing beam. The sealing wire is broken. Replace the sealing wire. The thermal safety of the power Wait until the safety resets, which supply was tripped.

  • Page 21: Parts Breakdown

    Parts Breakdown Model VP-NL-0040-M 50003 Model VP-NL-0040-MS 50004...
  • Page 22 Parts Breakdown Model VP-NL-0040-M 50003 Model VP-NL-0040-MS 50004 Item No. Description Position Item No. Description Position Item No. Description Position Vacuum Chamber Complete for 50003, Air Pressure Hose Blue 10x8 for 50003, T-Screw-In Hose Coupling 1/8x6 Ext. for 35230 0010...
  • Page 23 Parts Breakdown Model VP-NL-0040-M 50003 Model VP-NL-0040-MS 50004 Item No. Description Position Item No. Description Position Item No. Description Position WM05 Looping Transformer Primary for 15818 Fuse 5x20 4A Slow for 50003, 50004 2075 35334 2330 27824 Castle Washer M6 for 50003, 50004...
  • Page 24 Parts Breakdown Model VP-NL-0040-M 50003 Model VP-NL-0040-MS 50004 Item No. Description Position Item No. Description Position Item No. Description Position Hexagon Screw M6x16 DIN933 A2 for Adj.Screw/Soc.Head M8x25 DIN916 A2 Slott.Rais.Counter.Head Screw M4x10 27787 4320 35391 5070 27789 9040 50003, 50004...
  • Page 25 Parts Breakdown Model VP-NL-0063-M 50005...
  • Page 26 Parts Breakdown Model VP-NL-0063-M 50005 Item No. Description Position Item No. Description Position Item No. Description Position 35590 Vacuum Chamber Complete for 50005 35258 Blind Plug 3/8" MS/VN for 50005 35225 Silencer ID-CL 1/8 for 50005 Protection Suction Hole SB-820-LL for 35231 Branch Pipe HFE-1 Ready for 50005 15716...
  • Page 27 Parts Breakdown Model VP-NL-0063-M 50005 Item No. Description Position Item No. Description Position Item No. Description Position Seal Mechanism SB-820-KL Top for 35304 Earth Terminal PE 4-2/3 for 50005 2030 35702 Cable Looping Sealbeam for 50005 2270 35730 3070 50005 Seal Mechanism SB-820-KL Bottom 35305 End Fent for 50005...
  • Page 28 Parts Breakdown Model VP-NL-0063-M 50005 Item No. Description Position Item No. Description Position Item No. Description Position Hexagon Screw M8x60 Din933 A2 for Slott.Rais.Counter.Head Screw M4x12 35758 3600 30026 4180 35403 Plastic Check Nut PG 16 for 50005 9090 50005 Din7985 A2 for 50005 Hexagon Screw M6x16 DIN933 A2 for 27787...

  • Page 29: Electrical Schematics

    Electrical Schematics Model VP-NL-0040-M 50003 Model VP-NL-0040-MS 50004 Model VP-NL-0063-M 50005...

  • Page 30: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 31: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 32 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
