Wine Coolers
Models WC-CN-0181-DB, 0181-D, 0192-SB, 0192-S, 0040-DB, 0040-D,
0051-SB, 0051-S
Items 48258, 45258, 48259, 45259, 48260, 45260, 48261, 45261
Instruction Manual
Revised - 02/17/2023
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WC-CN-0181-DB and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan WC-CN-0181-DB

Summary of Contents for Omcan WC-CN-0181-DB

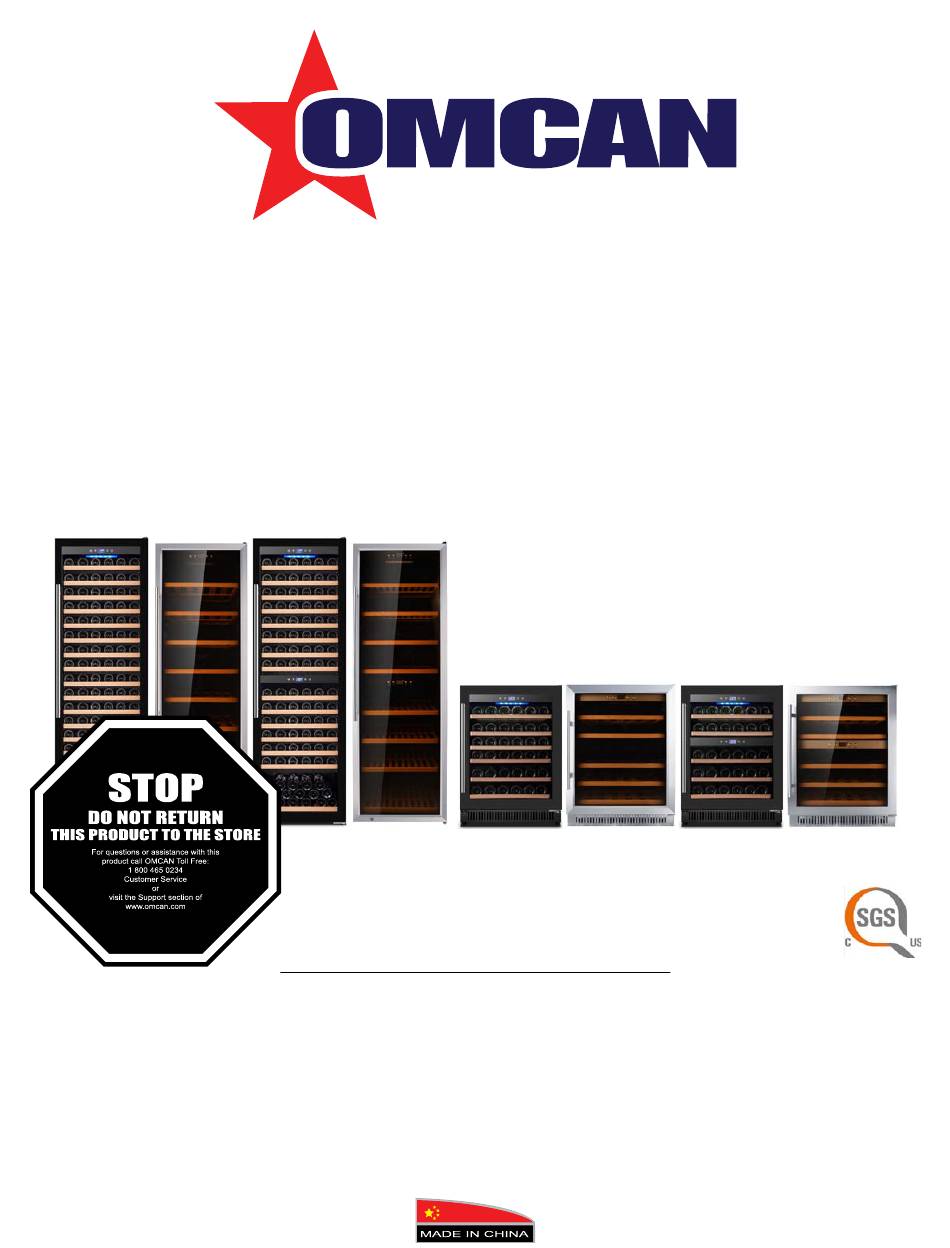

  • Page 1 Wine Coolers Models WC-CN-0181-DB, 0181-D, 0192-SB, 0192-S, 0040-DB, 0040-D, 0051-SB, 0051-S Items 48258, 45258, 48259, 45259, 48260, 45260, 48261, 45261 Instruction Manual Revised - 02/17/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model WC-CN-0181-DB / Model WC-CN-0181-D / Model WC-CN-0192-SB Model WC-CN-0192-S / Model WC-CN-0040-DB / Model WC-CN-0040-D Model WC-CN-0051-SB / Model WC-CN-0051-S Section Page Disclaimer ---------------------------------------------------------------------------------------------------------- 3 General Information ----------------------------------------------------------------------------------------- 4 - 5 Safety and Warranty ---------------------------------------------------------------------------------------- 5 - 6...

  • Page 3: Disclaimer

    Disclaimer OMCan Is nOT respOnsIble fOr any DaMages Due TO WaTer leaks. WarranTy fOr WaTer leaks Is vOID If The aMbIenT rOOM TeMperaTure exCeeDs 75°f anD 55% relaTIve huMIDITy, anD The applIanCe DraIn Is nOT COnneCTeD DIreCTly TO a flOOr DraIn.

  • Page 4: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 5: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 6 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 7: Technical Specifications

    Technical Specifications Model WC-CN-0181-DB WC-CN-0181-D WC-CN-0192-SB WC-CN-0192-S Type Full Glass Stainless Full Glass Stainless Temperature Range 3 - 22°C / 37.4 - 71.6°F Max Ambient Temp Rating 24°C / 75°F Inner Humidity 40% - 60% Power 160 W / 0.16 kW...

  • Page 8: Installation

    Installation WINE CABINET INSTALLATION 1. When you receive the cabinet, make sure when you unpack it there is no flaws in its external appearance (from shocks, deformation, etc.) 2. Open the door and check all interior fittings and supplied items if they are all complete (shelves, instruction, control panel, etc.) Please install it according to the following points if the shelves or shelf brackets fall off during transit.
  • Page 9 Installation INSTALLING OR REMOVING THE DOOR Before beginning, please remove the power plug from the socket, follow the below images (Pictures A-H) to remove the door. In order to reassemble the door, follow the below images in reverse order.

  • Page 10: Operation

    Operation TEMPERATURE SETTING • The item will be used under the room temperature ranging from 16°C to 38°C (61°F to 100°F). • Temperature setting range of cabinet is 5°C to 20°C (41°F to 68°F). Customers can reset the temperature according to their actual demands. Both the wine cabinet and the indicator will turn on until the desired temperature is achieved.

  • Page 11: Maintenance

    Operation Ensure bottle and shelf safety • Spread your bottles out as evenly as possible over the shelves, so weight is not concentrated in one point; and make sure your bottles will not touch the back of the cabinet. • Make sure bottles are not grouped together at the top or bottom of the cabinet.
  • Page 12 Troubleshooting ERROR CODES Error Code Check & Solution Problem with cooling. Check for proper the air circulation inside the unit. Ensure the air outlet inside the cabinet is not obstructed. The back plate inside the cabinet has frost buildup. Make sure the unit is at least 5cm away from the wall. Keep the unit out of direct sunlight and away from other heat sources.
  • Page 13 Troubleshooting Indicator Light: When temperature inside cabinet is out of range of setting temperature, both up and down indicator lights will be on. Once temperature reaches setting temperature, the light will automatically turn off.

  • Page 14: Parts Breakdown

    Model WC-Cn-0181-Db 48258 Model WC-Cn-0181-D 45258...
  • Page 15 Model WC-Cn-0181-Db 48258 Item No. Description Position Item No. Description Position Item No. Description Position AM683 Handle Black for 48258 79687 Hinge Cover for 48258 79704 Top Ventilation Board for 48258 AM684 Door Assemble Full Glass Door for 48258...
  • Page 16 parts breakdown Model WC-Cn-0181-D 45258 Item No. Description Position Item No. Description Position Item No. Description Position 79668 Handle Stainless Steel for 45258 79687 Hinge Cover for 45258 79704 Top Ventilation Board for 45258 Door Assemble Stainless Steel Door 79669 79688 Casing for 45258 79705...
  • Page 17 parts breakdown Model WC-Cn-0192-sb 48259 Model WC-Cn-0192-s 45259...
  • Page 18 parts breakdown Model WC-Cn-0192-sb 48259 Item No. Description Position Item No. Description Position Item No. Description Position AM683 Handle-Black for 48259 68732 Fan Cover for 48259 79696 Front Foot for 48259 Door Assemble-Full Glass Door for AM684 79700 Sensor Cap for 48259 79697 Down Hinger+Front Foot for 48259 48259...
  • Page 19 parts breakdown Model WC-Cn-0040-Db 48260 Model WC-Cn-0040-D 45260...
  • Page 20 parts breakdown Model WC-Cn-0040-Db 48260 Item No. Description Position Item No. Description Position Item No. Description Position AM687 Handle-Black for 48260 79730 Up-Sensor for 48260 79711 Watershed Plate for 48260 Door Assemble-Full Glass Door for AM688 79731 Evaporator for 48260 79698 Heating Wire for 48260 48260...
  • Page 21 parts breakdown Model WC-Cn-0040-D 45260 Item No. Description Position Item No. Description Position Item No. Description Position 79714 Handle Stainless Steel for 45260 79730 Up-Sensor for 45260 79711 Watershed Plate for 45260 Door Assemble Stainless Steel Door 79715 79731 Evaporator for 45260 79698 Heating Wire for 45260 for 45260...
  • Page 22 parts breakdown Model WC-Cn-0051-sb 48261 Model WC-Cn-0051-s 45261...
  • Page 23 parts breakdown Model WC-Cn-0051-sb 48261 Item No. Description Position Item No. Description Position Item No. Description Position AM687 Handle-Black for 48261 AM681 LED Light for 48261 79694 Power Supply Cord for 48261 Door Assemble-Full Glass Door for AM688 79703 Sealing (Froming) for 48261 79689 Electric Board for 48261 48261...

  • Page 24: Electrical Schematics

    Model WC-Cn-0181-Db 48258 Model WC-Cn-0181-D 45258 Model WC-Cn-0040-Db 48260 Model WC-Cn-0040-D 45260...
  • Page 25 electrical schematics Model WC-Cn-0192-sb 48259 Model WC-Cn-0192-s 45259 Model WC-Cn-0051-sb 48261 Model WC-Cn-0051-s 45261...

  • Page 26: Notes

    notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
