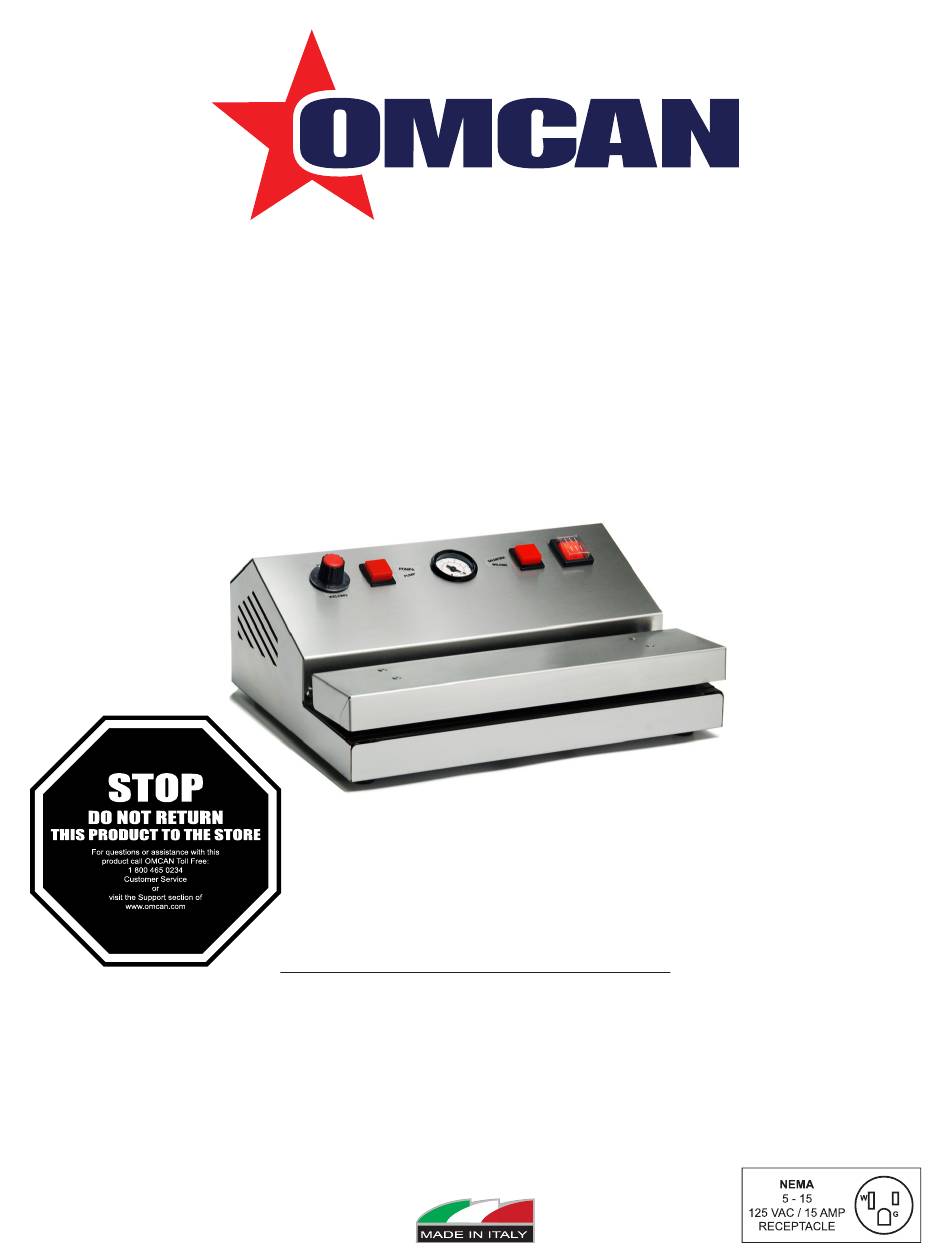

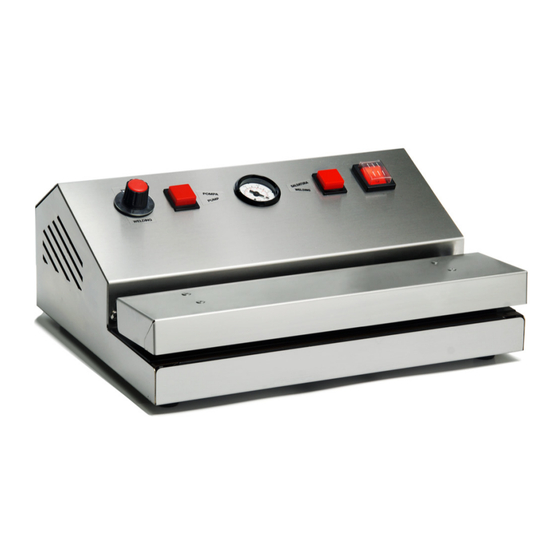

- Page 1 Vacuum Packaging Machine Model VP-IT-0330-S Item 47297 Instruction Manual Revised - 01/20/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model VP-IT-0330-S Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Installation -------------------------------------------------------------------------------------------- 6 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ------------------------------------------------------------------------------------- 7 - 8 Parts Breakdown ------------------------------------------------------------------------------- 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Safety and Warranty Please see https://omcan.com/disclaimer for complete info. WARNING: The packaging components (cardboard, polyethylene, and others) are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. -
Page 7: Operation
Operation Set sealing timer on number four (4). Insert the product into a large bag. Lift the mobile cover. Position the mouth of the bag one (1) centimeter beyond the black seal. Lower the cover and press the pump push-button, putting pressure downwards so that the needle on the vacuum gauge goes past position 0.2. -
Page 8: Parts Breakdown
Eliminate all foreign bodies that prevent free air circulation in the air aspiration tubes. The welding bar cover strip has an average working life of about 2000 welds. Replace this cover strip when necessary. Parts Breakdown Model VP-IT-0330-S 47297 Item No. Description Position Item No. - Page 9 Parts Breakdown Model VP-IT-0330-S 47297...
-
Page 10: Electrical Schematics
Electrical Schematics Model VP-IT-0330-S 47297... -
Page 11: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 12 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
