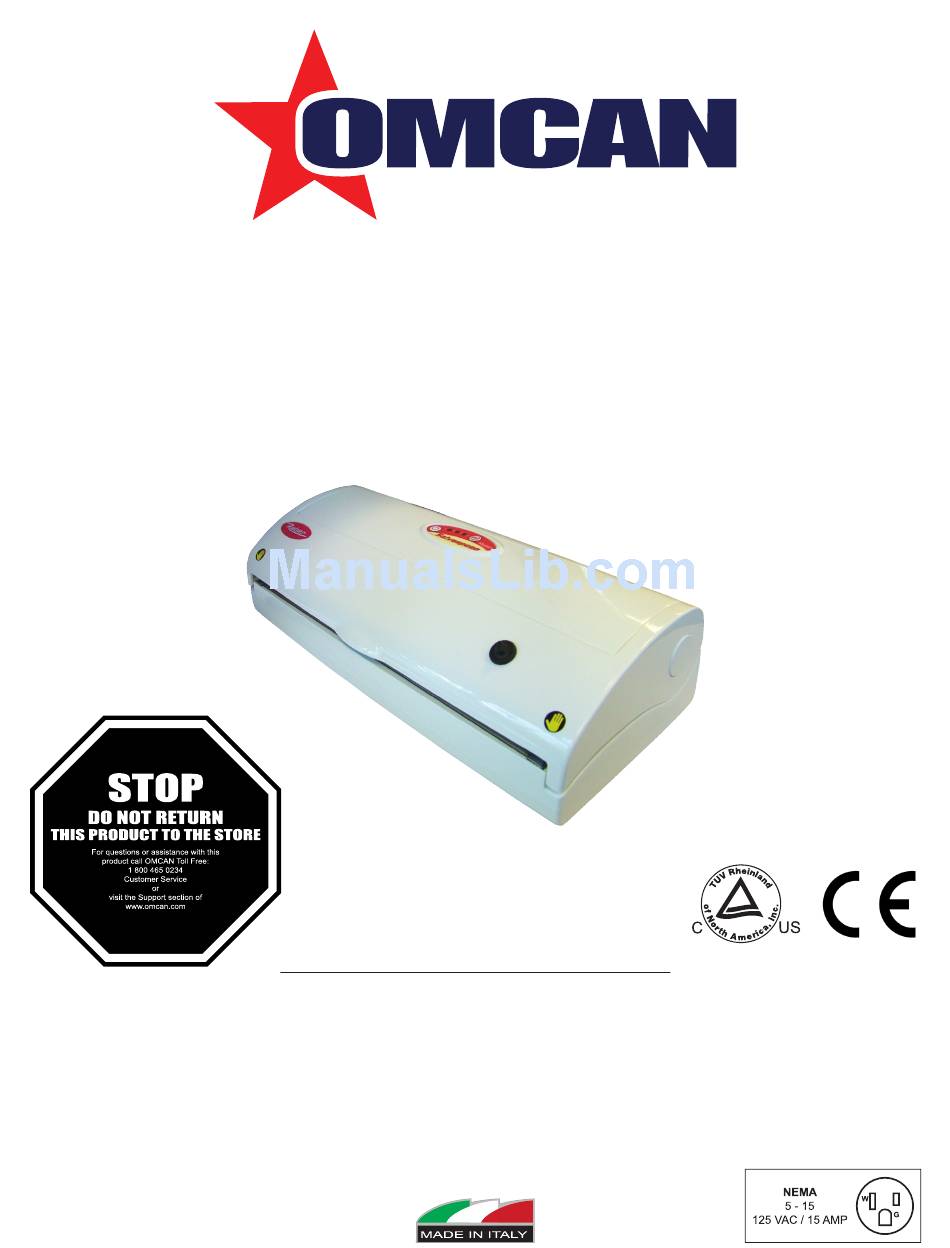

- Page 1 Vacuum Packaging Machine Model VP-IT-0324 Item 21623 Instruction Manual Revised - 03/03/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model VP-IT-0324 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications ---------------------------------------------------------------------- 6 - 7 Operation --------------------------------------------------------------------------------------- 8 - 10 Motor Diagram ------------------------------------------------------------------------------------- 10 Parts Breakdown ---------------------------------------------------------------------------- 11 - 12... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty 2. Do not operate any appliance with a damaged cord, plug, after the appliance malfunctions, is dropped or damaged in any manner. Return the unit to the nearest authorised service facility for examination, repair or electrical or mechanical adjustment. 3.
-
Page 6: Technical Specifications
1 YEAR PART AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. - Page 7 Technical Specifications • LED displaying vacuum level. • Welding bar 32 cm. (for bags of 30 cm.). • Continuous duty. • Power cord storing compartment. Air intake for container coupling. • Max. absorbed power: 250 W. • Max. vacuum level: -830 mbar. •...
-
Page 8: Operation
Operation USE OF THE MACHINE All numbers in brackets (#) refer to those listed in the “Parts Breakdown” section of the manual on page 8. Plug the machine in, making sure the socket has suitable voltage for the unit. The unit is now ready for operation. - Page 9 Other products that are not very compact can be damaged or crushed with an excessive vacuum level. We recommend checking the adherence of the bag and welding before operation. OMCAN BAGS Item Model...
-
Page 10: Motor Diagram
Operation REFERENCE Manufacturer Model Item Number Model Number Description Number Vacuum Packaging Machine 13” / 324mm 21623 VP-IT-0324 9340N Seal Bar 110V/60/1 cTUVus Motor Diagram Model VP-IT-0324 21623 Sold Complete ... -
Page 11: Parts Breakdown
Parts Breakdown Model VP-IT-0324 21623... -
Page 12: Parts Breakdown
Parts Breakdown Model VP-IT-0324 21623 Item No. Description Position Item No. Description Position Item No. Description Position 75271 Housing Salvasresa for 9340N 75275 Cable Plug Salvaspesa for 9340N 75279 Electronic Card for 9340N 75272 Stopper for 9340N 75276 Pump Support for 9340N... -
Page 13: Electrical Schematics
Electrical Schematics Model VP-IT-0324 21623... - Page 14 Electrical Schematics Model VP-IT-0324 21623...
-
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
