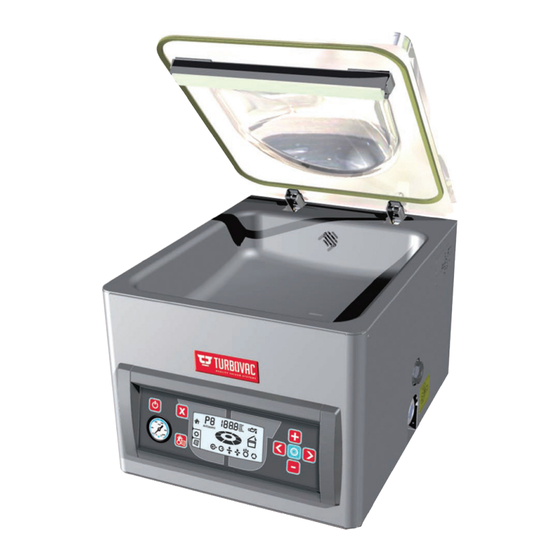

Omcan VP-NL-0004-S Instruction Manual

Tabletop vacuum packaging
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Tabletop Vacuum Packaging
Models VP-NL-0004-S, 0008-S, 0016-S, 0021-S, 0016-LL
Items 50006, 50007, 50008, 50009, 50010
Instruction Manual
Revised - 11/01/2023
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-NL-0004-S and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan VP-NL-0004-S

Summary of Contents for Omcan VP-NL-0004-S

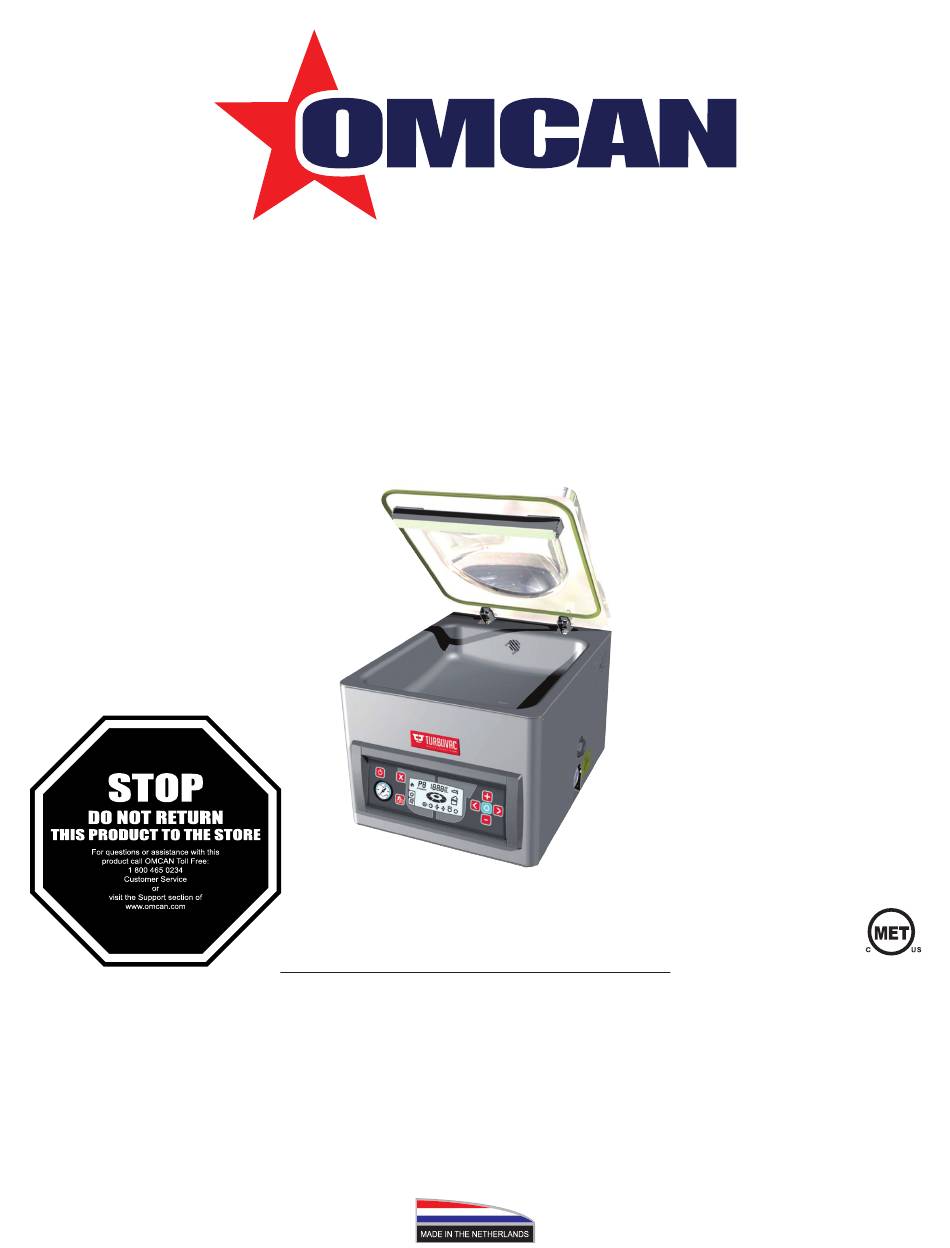

  • Page 1 Tabletop Vacuum Packaging Models VP-NL-0004-S, 0008-S, 0016-S, 0021-S, 0016-LL Items 50006, 50007, 50008, 50009, 50010 Instruction Manual Revised - 11/01/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model VP-NL-0004-S / Model VP-NL-0008-S / Model VP-NL-0016-S Model VP-NL-0021-S / Model VP-NL-0016-LL Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 1 YEAR PARTS AND LABOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 6: Technical Specifications

    Technical Specifications 11” VACUUM PACKAGING MACHINES Model VP-NL-0004-S VP-NL-0008-S Seal Length 11” / 279mm Vacuum Pump 4 m³ 8 m³ 10 Programmable Control Maximum Product 4.3” / 110mm Height Useful Chamber Size 12.2” x 11” x 4.3” / 310 x 279 x 110mm Power Consumption 0.4 - 0.5 kW...

  • Page 7: Installation

    Installation Never operate the machine when the oil level is low. It is recommended to change the oil at least every 2 months. TURNING ON MACHINE • If so equipped, like some mobile and double-chamber models, turn on the main power switch on the back of the machine.

  • Page 8: Operation

    Operation • The actual vacuum pressure is indicated by the analog vacuum gauge. PLUG AND PLAY • When turning on the machine for the first time: - Running time of the vacuum pump is pre-set at 30-40 seconds and the sealing time at 2 seconds. Vacuum is indicated on the analog vacuum gauge.
  • Page 9 Operation When turning off the machine with the button, the symbol will start blinking: • The pump will stop after about 4 seconds. • Press the button a second time and the pump will stop immediately. • Close the lid; the machine initiates the cool-down phase and perform a number of vacuum cycles before turning off automatically.
  • Page 10 Operation PLUG AND PLAY • When turning on a sensor-based machine for the first time, it will start up in the PA program AUTOMATIC. This is a pre-set factory program with 5 mbar of vacuum and 2 seconds of sealing time. •...
  • Page 11 Operation Adjust program values and turn functions ON/OFF: • Forward or back; adjusted values are saved right away. • Increases or decreases function values. • Turns functions ON/OFF; specific functions, like soft-air, clean cut seal, etc., are turned either on or off. •...
  • Page 12 Operation PROGRAMMING THE MACHINE ONE-PROGRAM CONTROL SYSTEM • The one-program control system is standard on the S20, S30, S40, S50, M10, M30 (with 21m pump). • The one-program control system is time-based. • The ten-program control system (time or sensor) is optional for these models, except for S20. THE ONE-PROGRAM CONTROL SYSTEM PROVIDES ONLY ONE PROGRAM (P1) •...
  • Page 13 Operation TURNING OFF MACHINE 1. Turn the machine off by pressing the button. 2. The symbol on the display will start blinking. 3. Push the button a second time and the pump will stop immediately. 4. If no action is taken the pump turns off after 4 seconds. 5.

  • Page 14: Maintenance

    Operation 2. Push the menu button to access the settings menu. 3. All functions for the selected program are indicated at the bottom of the display. 4. Push the button to select the blinking function to be adjusted. 5. Adjust the value of the selected function with the button.
  • Page 15 Maintenance ATTENTION Observe the recommended service intervals. Overdue maintenance may lead to costly repairs and overhauls, and may void the equipment warranty. • After reaching a programmed number of operating hours or packing cycles, the service symbol will briefly appear on the display when the machine is started up. In addition, the display will indicate how many hours or cycles remain before an oil change is required.
  • Page 16 Maintenance 6. To reset the service interval counters after the oil change: start machine and while the display shows the hours or cycles, press and hold the button. NOTE Collect the oil to have it processed and recycled according to the locally applicable regulations. SEAL BEAMS AND COUNTER BEAMS To achieve a quality seal, it is necessary that the seal beam and counter beam are in good condition.
  • Page 17 Maintenance ALUMINUM/STAINLESS STEEL SEAL BEAM REMOVE THE SEALING AND CUTTING WIRES AS FOLLOWS: 1. Remove the old wires by pulling them loose from the seal beam contacts. 2. Loosen the clamp screws and remove the seal beam from the U-profile. 3.
  • Page 18 Maintenance 3. Position the wires across the beam. 4. Fasten mounting plates; tighten screws. 5. Carefully clamp the beam in a bench vice. 6. Pull the wires as tightly as possible with a pair of pliers. 7. Secure the mounting plates with the screws. NOTES •...

  • Page 19: Troubleshooting

    Maintenance VACUUM HOSES AND TUBES • Check the vacuum hoses and tubes for kinks, tears and porosity; replace if necessary. Troubleshooting Fault/Symptom Possible Cause Remedy Machine does not work. The machine is not plugged in. Plug the machine into the electrical outlet.
  • Page 20 Troubleshooting There is not enough gas in the The bag is too small. Select a bigger bag. bag. The programmed gas level is too Increase the gas level value. low. The bag is not correctly positioned Adjust the bag position. over the gas outlets.

  • Page 21: Parts Breakdown

    Parts Breakdown Model VP-NL-0004-S 50006 Model VP-NL-0008-S 50007...
  • Page 22 Parts Breakdown Model VP-NL-0004-S 50006 Model VP-NL-0008-S 50007 Item No. Description Position Item No. Description Position Item No. Description Position Hexagon Flangenut M6 Din6923 A2 for Hexagon Screw M4x8 Din 933 A2 for Decompress Valve 303500 for 50006, 27781 30004...
  • Page 23 Parts Breakdown Model VP-NL-0016-S 50008 Model VP-NL-0021-S 50009 Model VP-NL-0016-LL 50010...
  • Page 24 Parts Breakdown Model VP-NL-0016-S 50008 Model VP-NL-0021-S 50009 Model VP-NL-0016-LL 50010 Item No. Description Position Item No. Description Position Item No. Description Position Elma Afdekknop 040-3020 ZWART for DIN Rail D 1Fase for 50008, 50009, 65851 T4 Vacuumbak for 50008, 50009, 50010 65846 65838 50008, 50009, 50010...

  • Page 25: Electrical Schematics

    Electrical Schematics Model VP-NL-0004-S 50006 Model VP-NL-0008-S 50007 Model VP-NL-0016-S 50008 Model VP-NL-0021-S 50009 Model VP-NL-0016-LL 50010...

  • Page 26: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
