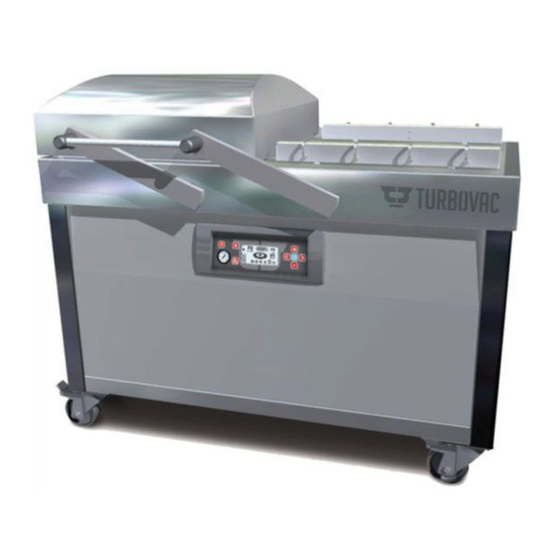

Omcan VP-NL-0100-L Instruction Manual

Double chamber vacuum packaging
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

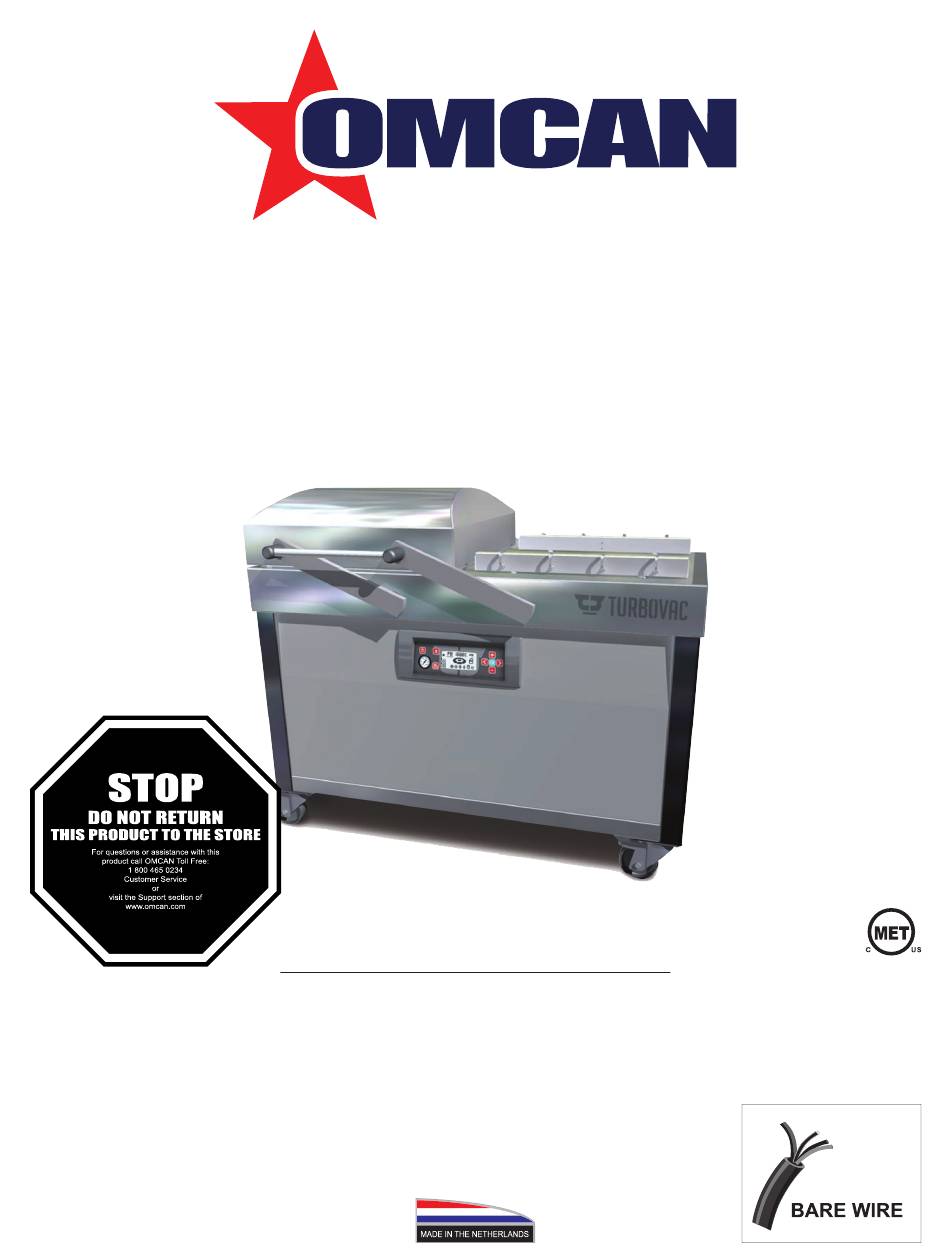

Double Chamber Vacuum Packaging
Models VP-NL-0100-L, 0300-L, 0063-L
Items 50000, 50001, 50002
Instruction Manual
Revised - 02/24/2022
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-NL-0100-L and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan VP-NL-0100-L

Summary of Contents for Omcan VP-NL-0100-L

  • Page 1 Double Chamber Vacuum Packaging Models VP-NL-0100-L, 0300-L, 0063-L Items 50000, 50001, 50002 Instruction Manual Revised - 02/24/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model VP-NL-0100-L / Model VP-NL-0300-L / Model VP-NL-0063-L Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation --------------------------------------------------------------------------------------- 7 - 14...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 1 YEAR PARTS AND LABOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 6: Technical Specifications

    Technical Specifications Model VP-NL-0100-L VP-NL-0300-L VP-NL-0063-L Seal Length 24.4” / 620mm x 4 32.2” / 920mm x 4 23.6” / 600mm x 4 Vacuum Pump 100 m³ 300 m³ 63 m³ 10 Programmable Control Maximum Product 9” / 230mm 10.6” / 270mm 7”...

  • Page 7: Installation

    Installation COMPRESSED AIR CONNECTION FOR ADDITIONAL SEALING PRESSURE • Additional sealing pressure is usually recommended for MAP applications only. • The M40-M80 and the L10-L60 models with the option Gas/MAP are standard equipped with a compressed air inlet. • Extra sealing pressure is not necessary and not available for the Table-Top, M10, M20, M30. •...

  • Page 8: Operation

    Operation OPERATING THE MACHINE WITH ONE-PROGRAM CONTROL SYSTEM On: Turns the machine on: • The machine will start up in the most-recently used program. • The pump of a machine with a transparent cover will start when the cover is closed. Off: Turns the machine off: •...
  • Page 9 Operation Service Symbol: • After a number of operating hours or packing cycles, the service symbol will briefly appear on the display when the machine is turned on. In addition, the display indicates how many hours or cycles remain before an oil change is required. •...
  • Page 10 Operation OPERATING THE MACHINE WITH TEN-PROGRAM CONTROL SYSTEM On: Turns the machine on: • The machine will start up in the most-recently used program. • The pump of a machine with a transparent cover will start when the cover is closed. Off: Turns the machine off: •...
  • Page 11 Operation Multi-Functional button: Performs various functions, depending on the active menu: Home menu • No effect while in the PA program. • For programs P1-9, displays the entered values. Settings menu • For specific functions, like soft-air, clean cut seal etc., the button is used to turn the function ON/OFF.
  • Page 12 Operation THE ONE-PROGRAM CONTROL SYSTEM PROVIDES ONLY ONE PROGRAM (P1) • There is no memory to store additional values. • The machine starts with the values that were most-recently used. • The pump starts upon closing of the cover and stops when it is reopened. PROGRAMMABLE FUNCTIONS The following function values may be customized for P1: •...
  • Page 13 Operation while the cover stays closed and the machine will turn off automatically after about 15 minutes. - These cycles are necessary to cool down the machine and to allow any moisture in the oil of the pump to evaporate. TEN-PROGRAM CONTROL SYSTEM •...

  • Page 14: Maintenance

    Operation 8. Press the menu button to save the entered values and to return to the Home menu. TURNING PROGRAM FUNCTIONS ON/OFF The following functions can be turned ON/OFF for each program P1-P9: Vacuum Plus: on/off, in seconds. Gassing: on/off, in seconds or in mbar (only with sensor). Clean Cut Controlled (CCC) Seal: on/off, in seconds.
  • Page 15 Maintenance • After passing the service limit, the display will indicate the negative number of excess operating hours or cycles. VACUUM PUMP To protect the vacuum pump, proper maintenance is important. Carry out the following tasks carefully: • Check the vents and clean as necessary before turning on the machine to assure proper cooling of the pump.
  • Page 16 Maintenance SEAL BEAMS AND COUNTER BEAMS To achieve a quality seal, it is necessary that the seal beam and counter beam are in good condition. 1. Clean the seal and counter beams daily with a dry cloth. 2. Replace the Teflon tape on the seal beam if damaged and replace the sealing wire if kinked. 3.
  • Page 17 Maintenance NOTES • After removal of the wires, check the strips of fiber glass for damage; replace if necessary. • Check the condition of the tensioning springs at both ends of the seal beam; replace if necessary. • Using the seal beam without the springs may cause the sealing wires to break. •...
  • Page 18 Maintenance APPLYING TEFLON TAPE TO SEAL BEAM 1. Position the new Teflon tape on the seal beam and cut out the corners. 2. Remove the protective backing from the Teflon tape. 3. Apply the new tape to the seal beam; the tape has an adhesive strip on both sides. 4.

  • Page 19: Troubleshooting

    Troubleshooting Fault/Symptom Possible Cause Remedy Machine does not work. The machine is not plugged in. Plug the machine into the electrical outlet. The ground fault safety in the Check the electrical panel. electrical panel has tripped. A fuse in the electrical panel is Check the electrical panel.
  • Page 20 Troubleshooting The machine does not seal. The bag is not correctly positioned Adjust the bag position. over the sealing beam. The sealing wire is broken. Replace the sealing wire. The thermal safety of the power Wait until the safety resets, which supply was tripped.

  • Page 21: Parts Breakdown

    Parts Breakdown Model VP-NL-0100-L 50000...
  • Page 22 Parts Breakdown Model VP-NL-0100-L Workplate 50000...
  • Page 23 Parts Breakdown Model VP-NL-0100-L Standard Assembly 50000...
  • Page 24 Parts Breakdown Model VP-NL-0100-L Switch Box 50000...
  • Page 25 Parts Breakdown Model VP-NL-0100-L Vacuum/Gas Pump 50000...
  • Page 26 Parts Breakdown Model VP-NL-0100-L 50000 Item No. Description Position Item No. Description Position Item No. Description Position Castle Washer Red Copper M10 for 65680 Tap Lid DA for 50000 35948 65683 Sealbalk A1015 Double Seal for 50000 50000 15938 Sealbag 4002 L=550mm for 50000...
  • Page 27 Parts Breakdown Model VP-NL-0100-L Standard Assembly 50000 Item No. Description Position Item No. Description Position Item No. Description Position 65691 Workplate D1 for 50000 35909 Skiffy Ring 21x37x3mm for 50000 35214 Castle Washer M5 for 50000 Control Panel (Holder Wide + PCB/TV/1-...
  • Page 28 Parts Breakdown Model VP-NL-0100-L Vacuum/Gas Pump 50000 Item No. Description Position Item No. Description Position Item No. Description Position 65691 Workplate D1 for 50000 62704 Silicon Bar for 50000 27814 Hexagon Nut M8 DIN934 A2 for 50000 65682 D1 Deksel for 50000...
  • Page 29 Parts Breakdown Model VP-NL-0300-L 50001...
  • Page 30 Parts Breakdown Model VP-NL-0300-L Workplate 50001...
  • Page 31 Parts Breakdown Model VP-NL-0300-L Standard Assembly 50001...
  • Page 32 Parts Breakdown Model VP-NL-0300-L 50001 Item No. Description Position Item No. Description Position Item No. Description Position 62689 Lid for 50001 62746 Seal Mechanism D4 Assembly for 50001 27814 Hexagon Nut M8 DIN934 A2 for 50001 Silicone Profile HD Model III 80 Deg 62742 35447 Castle Washer M10 for 50001...
  • Page 33 Parts Breakdown Model VP-NL-0300-L Standard Assembly 50001 Item No. Description Position Item No. Description Position Item No. Description Position 62688 Workplate for 50001 35534 Spring Axle Double Chamber for 50001 62708 Kabeldoorboer Parallelstang for 50001 Pipe 13x1.5x34mm Stainless Steel 304 62689 Lid for 50001 62700...
  • Page 34 Parts Breakdown Model VP-NL-0063-L 50002...
  • Page 35 Parts Breakdown Model VP-NL-0063-L 50002 Item No. Description Position Item No. Description Position Item No. Description Position Distribution Block 4DVB/VP 3/8"-1/4"-4 Hexagon Screw M6x12 Din933 A2 for 35423 Vacuum Cover Complete for 50002 0010 35255 1130 30005 1580 for 50002 50002 35290 Sight Glass (380x280x20) for 50002...
  • Page 36 Parts Breakdown Model VP-NL-0063-L 50002 Item No. Description Position Item No. Description Position Item No. Description Position 35513 Vacuum Bag Holder for 50002 3210 35539 Elbow 1/2" Ext/Ext Brass Nickle for 50002 4160 35399 Upper Sticker Turbovac 03 for 50002 9051 Sil.Profile Lid Gasket 8mm Packing Cover Control + Glue-Layer...

  • Page 37: Electrical Schematics

    Electrical Schematics Model VP-NL-0100-L 50000 Model VP-NL-0300-L 50001 Model VP-NL-0063-L 50002...

  • Page 38: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 39: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 40 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.

This manual is also suitable for:

Vp-nl-0300-lVp-nl-01063-l500005000150002
