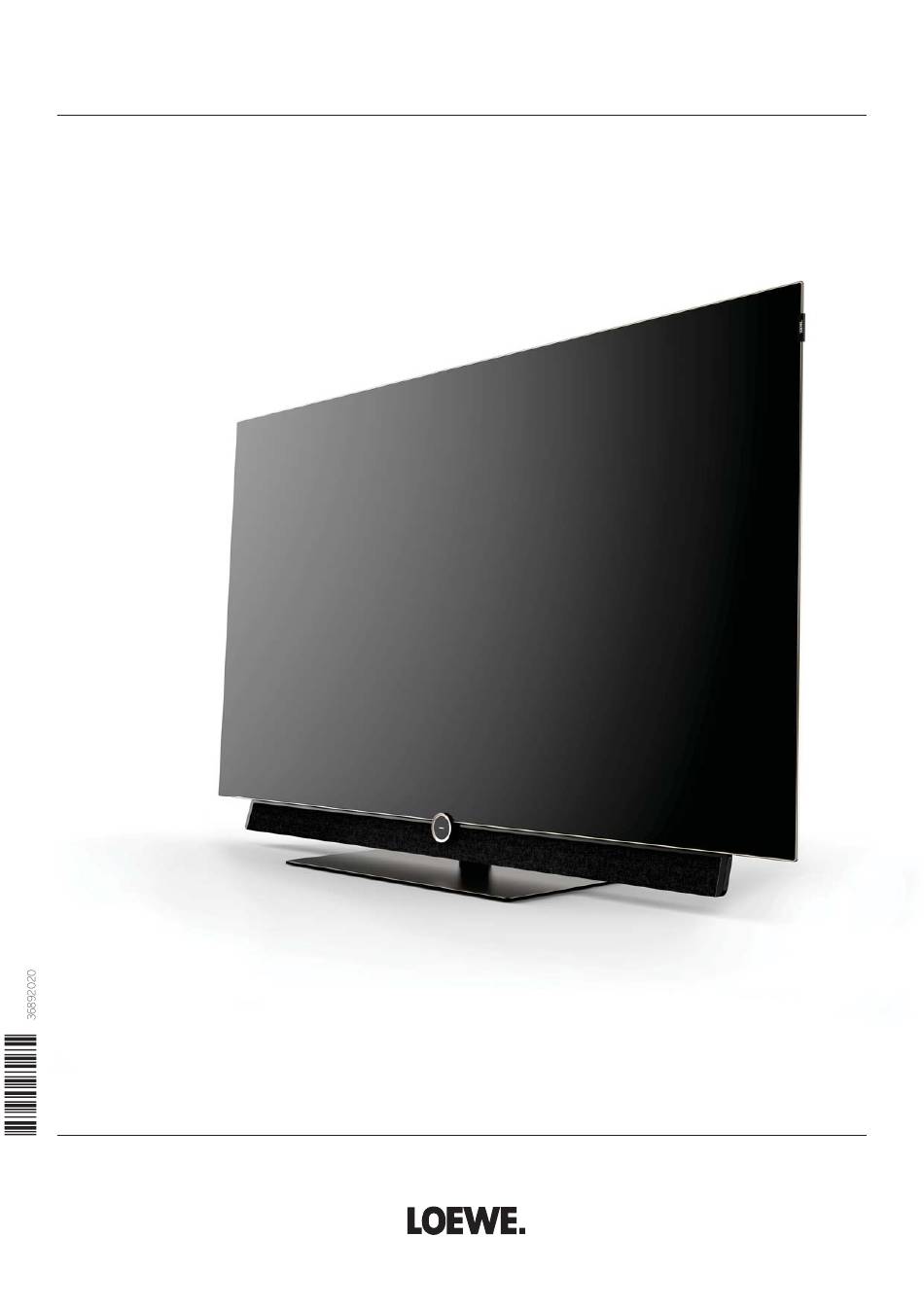

- Page 1 Loewe bild 5 Loewe bild 4 bild 5.65 oled bild 5.65 set bild 5.55 oled bild 5.55 set bild 4.55 oled User handbook...
-
Page 2: Imprint
Loewe bild 5 oled / bild 4 oled User handbook Imprint Imprint Loewe Technologies GmbH Industriestraße 11 Editorial date 06/17-1.0 SB/PS/TB D-96317 Kronach © Loewe Technologies GmbH, Kronach www.loewe.tv ID: 4.2.10.0 The screen graphics used are only exemplary. Depending on the device type, the available hardware/software components may be different. -
Page 3: Table Of Contents
Loewe bild 5 oled / bild 4 oled User handbook Table of contents Imprint ...................2 Sources ..................55 Video ......................56 Welcome ..................5 Video playback ....................56 Additional functions for DR+ archive playback ........59 Delivery specification ..............5 Audio ......................62 About this user handbook ................5 Audio playback ...................62... - Page 4 Loewe bild 5 oled / bild 4 oled User handbook Table of contents System settings (continuation) ..........113 DR+ Streaming ..................113 Integrated features .................114 Reset to factory settings ................114 Conditional Access module (CA module) ...........115 External devices ................117 Devices to the HDMI connections ............117 Digital Link HD ....................118...
-
Page 5: Welcome
Rotation unit (only with bild 5 set variant and bild 4oled) Loewe does not accept any liability for the nature and content of Table stand base plate (only with bild 5 set variant and bild 4 oled) receivable Internet services. This also applies to the Loewe MediaNet Welcome Box: portal. -
Page 6: Safety/Warning
Loewe bild 5 oled / bild 4 oled User handbook Safety/Warning Safety/Warning Transport Improper handling during transportation can lead to damage For your safety, and to avoid unnecessary damage to your unit, please to the display and risks of injury. - Page 7 Otherwise, damage to the TV may result. The Vesa adapter bolts must be attached to the TV set with a torque of circa 4 Nm. You can obtain these from your Loewe dealer (you can find further information in chapter Miscellane-...
-
Page 8: Remote Control Button Mapping
Loewe bild 5 oled / bild 4 oled User handbook Remote control Remote control button mapping Depending on the selected operating mode (TV/Video/Audio/Photo/Apps) and function (e.g. DR+, EPG, PIP, Teletext, HbbTV, etc.), the key assignment may differ from the assignment described here (see the corresponding chapter). -
Page 9: Operating Controls On The Tv Set
Loewe bild 5 oled / bild 4 oled User handbook Operating controls on the TV set Operating controls on the TV set Mains switch: The mains switch is located on the backside of the set. Always return the TV set to Standby mode before switching it off with the main switch. -
Page 10: Connections Rear Side Of The Device
Loewe bild 5 oled / bild 4 oled User handbook Connections rear side of the device Position and function of the connections Mains switch HEADPHONE - Headphone connection Jack 3,5 mm – Headphones 32–200 Ohm Slot for Kensington lock HDMI 3 - HDMI input 3 DIGITAL AUDIO LINK - Surround audio outputs (digital) –... -
Page 11: Preparing The Tv Set
Mounting options / Installation notes When the TV set is mounted on the Table Stand, the connection cables Your Loewe dealer can also assist you in finding other mounting are fixed to the Table Stand (see figure). options. Look for the corresponding directions in the installation When using a wall bracket (Wall Mount is available as an accessory instruction. -
Page 12: Connecting The Tv Set
If you want to use analogue cables/DVB-C connection and a DVB-T antenna together, use an external antenna switch (available from In order to play back data from your home network your Loewe TV your dealer). supports the UPnP AV standard. - Page 13 (in opposite directions). Pay attention to the correct polarity of + and – when inserting the batteries. Help for configuration problems Loewe cannot provide any support for PC hardware and software or network components owing to the diverse configuration options with home networks.
-
Page 14: Switching The Tv Set On/Off
System settings, section Control – Hard disks. This applies also to the use of external USB hard disks with the TV set. Loewe are not liable for the loss of data on the integrated hard disk of your TV set. To avoid data loss, we recommend copying important recordings to an external storage medium. -
Page 15: General Information On Menu Operation
Loewe bild 5 oled / bild 4 oled User handbook General information on menu operation General information on menu operation Structure of the Menu screen Basically, the structure of the different menu screens is similar, The most important keys for navigation will be explained in general. - Page 16 Loewe bild 5 oled / bild 4 oled User handbook General information on menu operation Screen structure: Setup (example: picture) Navigation: Wizards (A) Selected function in the Home overview (here: system settings) If the menu item(s) (marked white) is/are already correctly preset: (B) Home Menu System settings, with selected menu item Picture.
- Page 17 Loewe bild 5 oled / bild 4 oled User handbook General information on menu operation Entering characters with on-screen keyboard Table of characters for entering text by means of the remote control For certain functions, entering letters or characters is required, e.g., for Web addresses (URLs) in the browser or for renaming archive entries.
-
Page 18: On-Screen Displays
Loewe bild 5 oled / bild 4 oled User handbook On-screen displays Explanation of keys An explanation of the main operating keys that can be used at the moment, can be displayed. The availability of the key explanation is dependent on the currently active operating situation. -
Page 19: Initial Installation
Loewe bild 5 oled / bild 4 oled User handbook Initial installation Initial installation wizard Energy Home mode: efficiency The emphasis for home use is on low energy (continued) Initial installation after switching on for the first time consumption. The automatic dimmer is activated. - Page 20 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Connect Setting options for reception via Cable analog: antennas If you have not selected Cable analog in step Connect antenna cable(s) cable(s) in the initial installation, proceed to the next section Setting options for DVB-T reception.
- Page 21 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Setting options for DVB-T reception: Supply Select supply voltage no (0V) / yes (5V). If you have not selected Terrestrial (DVB-T) in step Connect voltage antenna cable(s) in the initial installation, proceed to the next section...
- Page 22 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Setting options for DVB-C reception: Network ID If you select none here, DVB signals of all current If you have not selected Cable (DVB-C) in step Connect antenna...
- Page 23 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Setting options for DVB-S reception: DiSEqC Select setting if the TV set is connected to a DiSEqC If you have not selected Satellite (DVB-S/cable x) in step Connect one cable single-cable system (according to EN 50494).
- Page 24 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Setting options for the satellite system (single satellite): Setting options for the satellite system (2 satellites on 22 kHz switchbox / 2 satellites on toneburst switch): Select single satellite...
- Page 25 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Setting options for the satellite system frequencies (max. 4 satellites on DiSEqC multiswitch): DiSEqC multiple switch Set LNB frequencies. Normally, you do not need to change the values.
- Page 26 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Setting options for the satellite system frequencies (DiSEqC one cable communal system): Number of system channel used Set LNB frequencies. Normally, you do not need to change the...
- Page 27 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Setting options for the satellite system (other communal installation): Select single satellite Select satellite. OK Confirm selection. Proceed to next step. frequencies, Supply voltage Select and adapt settings.
- Page 28 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Setting options for DVB-S reception (continued): Setting options for all types of reception: Test reception Check search settings After you have made the previous settings, you should You will see a list of the selected settings. You can go...
- Page 29 Loewe bild 5 oled / bild 4 oled User handbook Initial installation Time and Network date configuration The data capture for time and date is set to automatic Select option. ex factory. With the selection, specify whether you want to If time and date are automatically obtained via the configure the available network adaptor now.
-
Page 30: Tv Set As A Monitor
Loewe bild 5 oled / bild 4 oled User handbook Initial installation TV set as a monitor You can also use your TV set just as a monitor, i.e. if you only use it with a PC. The tuner in the TV set cannot be used in this mode. -
Page 31: Home View
Loewe bild 5 oled / bild 4 oled User handbook Home view Home view Home view - Favourites The Home view is the central overview page of your TV set. Under the menu items Home and Apps you will find your Favourites on the right-hand side. -
Page 32: Setting The Volume
Loewe bild 5 oled / bild 4 oled User handbook Volume / stations Selecting a station out of the station list In normal TV mode, without other displays: Via the menu item TV, which is selectable via the Home view, one station can be selected from the current station list. - Page 33 Loewe bild 5 oled / bild 4 oled User handbook Station Selecting stations by means of the expanded station list Selecting stations by personal lists You can save your preferred stations in personal lists (e.g., for several In normal TV mode, without other displays: users).
-
Page 34: Status Display/Info Key
Virtual speaker (VS mode) developed by Dolby is activated for the virtual sound reproduction in sound mode (4) and (5). Here you can choose between Dolby Virtual and Cinema Surround. In sound mode (3), proprietory settings of Loewe are used for the virtual reproduction. -
Page 35: Function List (Tv Mode)
Loewe bild 5 oled / bild 4 oled User handbook Function list Function list (TV mode) The function list contains settings and additional options. Die individual List items will be briefly explained as follows: The function list can be opened for the current station or the selected station list. -
Page 36: Electronic Programme Guide - Epg
Loewe bild 5 oled / bild 4 oled User handbook Electronic Programme Guide Electronic Programme Guide – EPG EPG Operation In the left column there is a list of stations of the selected source/sta- EPG stands for Electronic Programme Guide and provides you with tion list (e.g. - Page 37 Loewe bild 5 oled / bild 4 oled User handbook Electronic Programme Guide Switching to the current broadcast Calling additional information about the programmes EPG called. EPG called. Mark current broadcast. INFO: Call up detailed information. OK press briefly: switch to current broadcast.
- Page 38 Loewe bild 5 oled / bild 4 oled User handbook Electronic Programme Guide Recording a programme via EPG Memorising a programme via the EPG You can programme timer recordings of TV programmes conveniently A programme that has not started yet can be memorised. For memo- using the EPG.
-
Page 39: Teletext
Loewe bild 5 oled / bild 4 oled User handbook Teletext Teletext Additional page selection possibilities First possibility: Your TV set supports the two operating systems TOP text and FLOF. Up to 2000 pages are stored in order to get quick access. -
Page 40: Rotating The Tv Set
Loewe bild 5 oled / bild 4 oled User handbook Teletext / Rotating the TV set Newsflash Rotating the TV set Some text pages, e.g., live tickers, will be permanently updated. In By using a connected motorized stand you have the possibility to rotate order to keep track of changes and also to be able to watch the TV your TV set by means of the remote control. -
Page 41: Hbbtv / Mediatext
Loewe bild 5 oled / bild 4 oled User handbook HbbTV / MediaText HbbTV / MediaText Opening HbbTV text directly Depending on the programme provider, the direct HbbTV (Hybrid broadcast broadband television) offers the user Call of MediaText may not be possible. MediaText comprehensive multimedia contents, e.g., media centres or additional... -
Page 42: Picture In Picture (Pip)
Loewe bild 5 oled / bild 4 oled User handbook Picture in Picture (PIP) Selecting the station of the PIP picture If the frame colour of the PIP picture is not green, The concurrent display of two different images is referred to as Picture press the green key. -
Page 43: Recordings
You can record programmes on the integrated hard disk of your TV set with the digital recorder of your Loewe TV set. The TV broadcast that you watch is automatically recorded in the background. You can stop the TV programme at any time and continue watching it later with a time shift. -
Page 44: Archive Recording
Loewe bild 5 oled / bild 4 oled User handbook Recordings Digital Recorder Archive recording Viewing another programme from the archive during archive recording Programmes that you wish to watch at a later date can be recorded in After you have started the recording, you can also watch a programme the Digital Recorder Archive (DR+ archive). -
Page 45: Multi Recording
Loewe bild 5 oled / bild 4 oled User handbook Recordings Digital Recorder Subtitles Multi recording Subtitles of a broadcast can also be stored during recording. The Multi Recording function makes it possible to record two pro- The recording of subtitles in DR+ continuous mode must be grammes at the same time and still watch a third one as well. -
Page 46: Dr+ Archive
Loewe bild 5 oled / bild 4 oled User handbook Recordings Digital Recorder DR+ archive DR+ archive function list The function list of the DR+ archive contains the individual function With the DR+ archive you have access to all the recorded programmes for its archive entries. - Page 47 Loewe bild 5 oled / bild 4 oled User handbook Recordings Digital Recorder Displaying detailed information on the recording Multi select If detailed information exists on the recorded broadcast from the EPG, Multiple selection allows to mark several archive entries and then you can deplay it.
- Page 48 You can copy/move archive entries to an externally connected USB In the DR+ archive, you can create new directories when using the storage device or to the hard disk of compatible Loewe TV sets in the function move. home network.
- Page 49 To avoid data loss, we recommend copying important recordings to an external USB hard disk (see Export of archive entries). Viewing a locked movie Loewe are not liable for data loss from the Digital Recorder’s hard disk. The desired locked entry in the DR+ archive is marked.
-
Page 50: Dr + Streaming
The TV sets also need to be connected via a network (wireless To use DR + streaming, at least two Loewe TV sets are required, of connection via WLAN or cable connection via Ethernet, PowerLine). -
Page 51: Multiroom
MENU: Call function list. Adapting the TV set names The default name of your TV set in the network is Loewe bild X.XX (X: device name ex factory, XX is the screen size). The device name can be set in the System Settings under... -
Page 52: Timer
Loewe bild 5 oled / bild 4 oled User handbook Recordings Timer Timer Entering the Timer data The setting options for the timer data differ depending on the way (EPG In the timer menu you will find the Timer List and the Timer Services. - Page 53 Loewe bild 5 oled / bild 4 oled User handbook Recordings Timer Explanations of the setting options in the menu Timer data – Record conflict Additional options Despite the possibility of multi recording, it can happen when programming a new recording that there will be an overlapping with...
- Page 54 Loewe bild 5 oled / bild 4 oled User handbook Recordings Timer Timer Services Explanations of the setting options: This menu offers you convenient alarm services. Programmed alarms Sleep timer After expiration of the indicated time, the device are also active when the TV set has been switched off to standby.
-
Page 55: Sources
Loewe bild 5 oled / bild 4 oled User handbook Sources Sources Source on the AV connection (with scart adapter) of the TV set. You will receive access to all devices connected to the TV set locally Depending on the content being played back from via the Sources point in the Home view (e.g. -
Page 56: Video
Loewe bild 5 oled / bild 4 oled User handbook Sources Video Video playback Symbol Remote Description (icon) control key The description of the following functions applies to the playback of videos from the DR+ archive as well as for videos from USB storage –... - Page 57 Loewe bild 5 oled / bild 4 oled User handbook Sources Video Pause playback (freeze picture) Skipping with Smart jump The Smart jump function ensures that the jump width is halved each PAUSE key: Switch to freeze picture. time the jump direction is changed or doubled after three jumps in the same direction (max.
- Page 58 Loewe bild 5 oled / bild 4 oled User handbook Sources Video Wind Repeat To search for desired scenes in movies you can fast forward and rewind Videos can be repeated, i.e., replayed in an endless loop. Depending at three different speeds. Sound is not audible during winding.
-
Page 59: Additional Functions For Dr+ Archive Playback
Loewe bild 5 oled / bild 4 oled User handbook Sources Video Select language/sound Additional functions for DR+ archive playback Videos, especially those recorded from TV broadcasts, can contain There are additional editing and playback functions for playback of several sound tracks. - Page 60 Loewe bild 5 oled / bild 4 oled User handbook Sources Video Deleting individual bookmarks Interval functions Jump to the manually set bookmark to be deleted. The intervals between manually or automatically set bookmarks (intervals) can be faded out for future playbacks.
- Page 61 Loewe bild 5 oled / bild 4 oled User handbook Sources Video Show hidden sections Determine cover picture A screen message will appear when a hidden section is skipped during The covers for the display of the entry in the DR+ archive can be freely replay of a DR+ archive entry.
-
Page 62: Audio
Loewe bild 5 oled / bild 4 oled User handbook Sources Audio Audio playback Pause playback PAUSE key: Stop current playback. Description of the symbols in the status display for audio playback An audio file is being played back. Selection of the audio file via the menu item Sources (see chapter Sources). - Page 63 Loewe bild 5 oled / bild 4 oled User handbook Sources Audio Select another title / play current title from start Shuffle playback The music titles of your current medium are replayed in random order. BACK: Call music selection. Select Music Titles as described in the chapter Sources.
-
Page 64: Photo
Loewe bild 5 oled / bild 4 oled User handbook Sources Photo Photo playback Full-screen mode A photo is highlighted in the selection (Folder view). Description of the symbols in the status display for photos OK View photo in full-screen mode. -
Page 65: Apps
Loewe bild 5 oled / bild 4 oled User handbook Apps App Gallery Apps App Gallery Here you have access to multimedia content in the Internet (App Gallery) Call App Gallery as well as a high-quality web browser. To use the full functionality of App Gallery, the TV set must be connected to the Internet. - Page 66 Loewe bild 5 oled / bild 4 oled User handbook Apps App Gallery App Gallery – Browse Define application as favourite Under the item Browse, you browse the full range of applications by Mark the desired application. topic. App Gallery-Browse is called.
-
Page 67: Browser
Loewe bild 5 oled / bild 4 oled User handbook Apps Browser Browser Entering a URL (Internet address) Browser status is displayed. You can access Internet sites directly using the integrated Opera browser. The web browser can also be used without an Internet Mark the URL (Internet address) of the connection. -
Page 68: Dvb Radio
Loewe bild 5 oled / bild 4 oled User handbook Apps DVB radio DVB radio Explanation of keys INFO (press longer): show Explanation of keys. The TV set can receive digital radio stations via DVB. The AUDIO key has been preset to radio mode in the factory. -
Page 69: Internet Radio
Loewe bild 5 oled / bild 4 oled User handbook Apps Internet radio Internet radio Artist Search (Search for artists) By means of the search for artists, you can quickly and easily see all The TV set can receive digital radio stations via the Internet. -
Page 70: System Settings
Loewe bild 5 oled / bild 4 oled User handbook System settings System settings Menu items Stations: Under the menu item System settings in the Home menu you Automatic scan TV+Radio, Manuell scan (incl. find all settings and adaptabilities of your TV set. -
Page 71: Picture
Loewe bild 5 oled / bild 4 oled User handbook System settings Picture Picture Colour Here, you can give the TV picture a warmer or colder temperature hue according to your personal taste. Here you do the settings referring to the representation of the picture signal on your TV set. - Page 72 Loewe bild 5 oled / bild 4 oled User handbook System settings Picture Picture adjustment Selecting the picture format By selecting one of the preset picture adjustment modes (Home The setting options depend on the transmitted picture content. Mode, Premium Mode, Cinema Mode or Shop Mode), the picture Menu item is only available if Automatic aspect ratio –...
-
Page 73: Sound
Loewe bild 5 oled / bild 4 oled User handbook System settings Sound Sound Explanations of the sound settings (continued): Dolby PLII He re yo u ca n se l e c t /a d a pt p reset so u n d... - Page 74 Loewe bild 5 oled / bild 4 oled User handbook System settings Sound Explanations of the sound settings (continued): more ... Loudspeaker/ Selection options for Mono/ Stereo or Sound 1 or Headphone Sound 2 for bilingual programmes, separately for sound the loudspeakers and the headphones.
-
Page 75: Stations
Loewe bild 5 oled / bild 4 oled User handbook System settings Stations Stations Under the item Stations you find all settings concerned with station search for TV and DVB radio as well as functions for creating and editing the various station lists. -
Page 76: Automatic Scan Tv+Radio
Loewe bild 5 oled / bild 4 oled User handbook System settings Stations Automatic scan TV+Radio Explanations of some search settings (continued): DVB-T/C/S If several networks are available, you can decide For automatic scan TV+Radio, a search wizard will be started that searches for new stations which are not yet stored. -
Page 77: Manual Scan Tv / Radio
Loewe bild 5 oled / bild 4 oled User handbook System settings Stations Search for/update stations – handling of new and no longer Manual Scan TV / Radio found stations Here, you can enter all the settings available for a station. However, After the automatic search/update has been concluded, the number this requires detailed knowledge. - Page 78 Loewe bild 5 oled / bild 4 oled User handbook System settings Stations Manual search for cable analogue (analogue cable reception): Manual DVB-T/C/S search: Manual search is called. Manual search is called. Cable analogue has been selected as signal source.
-
Page 79: Station Lists Tv / Radio
Loewe bild 5 oled / bild 4 oled User handbook System settings Stations Station lists TV / Radio Move block / Change order Stations with LCN cannot be reordered. In this case, Under the menu item Station lists TV or Station lists Radio you the function Move block is hidden. -
Page 80: Compose / Edit Personal List
Loewe bild 5 oled / bild 4 oled User handbook System settings Stations Compose / edit Personal list Adding stations to Personal list The Personal list must be opened to add new Each personal list can contain up to 99 stations. You can compose the stations to it. -
Page 81: Update Station List Automatically
Loewe bild 5 oled / bild 4 oled User handbook System settings Stations Update station list automatically At once The station list will be immediately updated. Normally this occurs in the background without interfering Some programme providers offer an automatic update of the sta- further with the TV‘s operation. -
Page 82: Control
Loewe bild 5 oled / bild 4 oled User handbook System settings Control Control more ... After confirmation with the OK key you will be offered additional not so frequently used sub items for the In the chapter Control you find settings for the various operating modes current menu item. -
Page 83: Language
Loewe bild 5 oled / bild 4 oled User handbook System settings Control Language Specify the language for all menus in the TV set in the language menu. Calling EPG settings The language for the DVB subtitles and the film language can be set HOME: Call Home view. -
Page 84: Parental Lock
Loewe bild 5 oled / bild 4 oled User handbook System settings Control Parental lock Explanations of setting possibilities in the Parental lock menu: Lock all The TV set is locked immediately the menu is exited. You can select and set various security options to prevent... -
Page 85: Energy Efficiency
Loewe bild 5 oled / bild 4 oled User handbook System settings Control Energy efficiency Quick start mode Determine how energy efficient your TV set shall be. The value for If you enable the Quick Start Mode and you switch on the TV set from the contrast (and thus the brightness of the background lighting) standby, the TV picture can be immediately seen without delay. -
Page 86: Software Update
Software update USB stick - requirements USB sticks tested by Loewe and compatible in type and format can It is possible to update the software on your Loewe TV set. be ordered from the Loewe dealer using the article no. 90456.900. - Page 87 Loewe bild 5 oled / bild 4 oled User handbook System settings Control Software update via USB storage device New software package found To do this, plug the USB stick with the downloaded software into a New software A new software version was found.
- Page 88 Loewe bild 5 oled / bild 4 oled User handbook System settings Control Manual update via the Internet New software package found If an Internet connection is available, new software can be downloaded New software directly and installed onto the TV set.
- Page 89 Loewe bild 5 oled / bild 4 oled User handbook System settings Control Software update via Antenna Load new software package Updating software A software update via antenna is only available for stations of the The "V1.1.14.0" software is currently being programmed, please wait ...
- Page 90 Loewe bild 5 oled / bild 4 oled User handbook System settings Control Automatic update via the internet New software package found For the menu item Information on new software updates , yes Your TV set checks at definite intervals whether a newer software than is selected (see left column).
-
Page 91: On-Screen Displays
Loewe bild 5 oled / bild 4 oled User handbook System settings Control On-screen displays Time and date You can select different settings in this menu which affect the on- The time and date are normally acquired automatically by the TV screen displays. -
Page 92: Dvb Settings
Loewe bild 5 oled / bild 4 oled User handbook System settings Control DVB settings You can make general pre-settings for DVB stations. Adjust size of the PIP image HOME: Call Home view. Calling DVB settings Mark System settings, HOME: Call Home view. - Page 93 Loewe bild 5 oled / bild 4 oled User handbook System settings Control DR + Serial The serial recording tolerance is necessary to recording avoid recording a serial more than once when it is You can adapt the Digital Recorder to your requirements.
-
Page 94: Standard Teletext
Loewe bild 5 oled / bild 4 oled User handbook System settings Control Call DR+ streaming settings Standard Teletext The DR+ settings are called (see previous page). In the Standard Teletext menu you can configure the Teletext. Mark DR+ Streaming, Call Teletext settings go to next column. -
Page 95: Hbbtv
Loewe bild 5 oled / bild 4 oled User handbook System settings Control HbbTV Asterisk key function Here you can do all settings for the HbbTV mode. You can assign the asterisk key on the remote control unit a particular function (App Gallery, picture/sound menu, sound mode, etc.). -
Page 96: Hard Disks
Loewe bild 5 oled / bild 4 oled User handbook System settings Control Hard disks Formatting the hard disk If problems were detected when the hard disk was being tested (see left column), re-formatting may be able to remedy the problem. -
Page 97: Export Log File
IP address. All data will be deleted from our servers not later than 4 weeks. to the Loewe server and stored as soon as a problem More information can be found in our privacy policy. situation has occurred. -
Page 98: Network Settings
Internet capabilities, e.g. computer, smartphone, etc. In this respect, Loewe guarantees that this data will not be personally exploited in any way. However, a statistical analysis of anonymised data records may be carried out. - Page 99 Loewe bild 5 oled / bild 4 oled User handbook System settings Multimedia / Network Configuration of the built-in LAN adaptor Configuration of the built-in WLAN bridge adaptor As network operation was selected On, wired only. As network operation was selected On, wireless only.
- Page 100 Loewe bild 5 oled / bild 4 oled User handbook System settings Multimedia / Network Explanation of the settings in the network status: Proxy server In the proxy server wizard you make arrangements for your TV set for Network shows the current type of connection (wireless or a connection with a home network with proxy server.
-
Page 101: Multimedia Settings
Loewe bild 5 oled / bild 4 oled User handbook System settings Multimedia / Network Multimedia settings Explanation of the setting options in the Home Automation menu: Under this menu item you find further settings for Audio, Video and Photo. -
Page 102: Mobile Recording
TV set scans an e-mail account at regular intervals. In the last step it is checked whether the email account is accessible If a record command is sent by the Loewe app, this command reaches with the set data. a connecting server. -
Page 103: Bluetooth
Loewe bild 5 oled / bild 4 oled Bluetooth User handbook System settings Multimedia / Network Bluetooth Coupling starting from the Bluetooth device Enable the Bluetooth function of your audio source. With the Bluetooth functionality, you can use a wireless connection... - Page 104 Loewe bild 5 oled / bild 4 oled User handbook System settings Multimedia / Network Bluetooth Keyboard Key assignment To use a Bluetooth keyboard as an input device, it must be coupled Remote control Keyboard to the TV set. Sound On/Off key ----- Bluetooth function menu opened.
-
Page 105: Connections
Loewe bild 5 oled / bild 4 oled User handbook System settings Connections Connections Settings for the connection of external appliances are made in this menu. The menu item Connections is not available while a timer record- ing is active. -
Page 106: Sound Components
Loewe bild 5 oled / bild 4 oled User handbook System settings Connections Sound components Sound playback via ... Some sound components can only be selected when the respective The sound components wizard helps you to configure the components device is connected to the TV set. - Page 107 Loewe bild 5 oled / bild 4 oled User handbook System settings Connections Adjusting the speaker system (AUDIO OUT) Subwoofer + ext. front speakers TV loudspeakers as centre speaker Sound playback via ... – Speaker system (AUDIO OUT) loudspeakers Please specify whether you want to use your...
- Page 108 Loewe bild 5 oled / bild 4 oled User handbook System settings Connections Adjusting the speaker system (DAL) Select the start value of the frequency response of the speakers for the correct setting (e.g., 50Hz for t h e s p e c i f i c a t i o n “ Fre q u e n c y re s p o n s e Sound playback via ...
- Page 109 Loewe bild 5 oled / bild 4 oled User handbook System settings Connections Connect Adjust Connect subwoofer Adjust speaker level subwoofer speaker level Please specify here whether you want to Sound com- You hear a sound from every speaker one after...
- Page 110 Loewe bild 5 oled / bild 4 oled User handbook System settings Connections Adjusting the HiFi/AV amplifier Sound Sound formats formats Please specify, what kind of sound formats can be processed by your Sound com- HiFi/AV amplifier and mark them by the button ponents Sound playback via ...
-
Page 111: Antenna Dvb
Loewe bild 5 oled / bild 4 oled User handbook System settings Connections Antenna DVB AV connection settings Here you can make settings for the DVB-T antenna and call the antenna In the AV connection settings menu the parameters for the AV wizard for the DVB-S antenna. -
Page 112: Digital Link
Loewe bild 5 oled / bild 4 oled User handbook System settings Connections Digital Link HDMI In the digital link menu you make further setting for comfortably linking In the HDMI menu, you can make additional settings for the HDMI external devices to the TV set. -
Page 113: Extras
Mark Extras, By activating this function you can make your TV set Extras available to other LOEWE TVs that are set up for this for a Streaming go to next column. specified period of time (can be configured using the digital recorder menu item "System settings ->... -
Page 114: Integrated Features
Loewe bild 5 oled / bild 4 oled User handbook System settings Extras Integrated features Reset to factory settings Here you can obtain information on the integrated features of the Here you can reset some of the settings to the factory default values. -
Page 115: Conditional Access Module (Ca Module)
TV set. They are usually available from Standard. CI Plus slots are in principle downward compatible to the your dealer. Loewe does not provide any guarantee for the functioning previous CI standard, i.e. CA modules and Smart Cards according to of the CA module. - Page 116 Loewe bild 5 oled / bild 4 oled User handbook System settings Extras Searching for scrambled stations Station mapping If no search for encrypted stations was performed during initial startup, If two CA modules are both used for the decoding of stations, you this can be done later using the search wizard.
-
Page 117: External Devices
Loewe bild 5 oled / bild 4 oled User handbook External devices Devices to the HDMI connections Playback from the device If the device at HDMI supports the Digital Link HD functionality, the The HDMI connections (High Definition Multimedia Interface) allow TV set will automatically switch to the corresponding HDMI input after the transmission of digital video and audio signals from a player (e.g. -
Page 118: Digital Link Hd
Operation of Digital Link HD (HDMI CEC) enabled devices Switching the control via the TV key is only possible when no device The Digital Link HD (HDMI CEC) function allows Loewe television sets key is assigned to the HDMI device you are using. -
Page 119: Devices On Av
Loewe bild 5 oled / bild 4 oled User handbook External devices Devices on AV Connecting a DVD player to the TV set A DVD player has been selected in the System settings The AV connection socket offers the possibility to connect e.g. a DVD connecting settings Device at connection AV. - Page 120 Loewe bild 5 oled / bild 4 oled User handbook External devices Connecting a DVD recorder to the TV set Connecting PC / Set-top box You can connect a PC and thus use the TV screen as a monitor. A DVD recorder has been selected in the System settings...
-
Page 121: Connecting The Speaker System (Audio Out)
Connecting the speaker system (DAL) You can easily connect a speaker system using the AUDIO OUT You can easily connect a Loewe speaker system using the DIGITAL interface of your TV set. AUDIO LINK interface (DAL) of your TV set. -
Page 122: Connecting Active Loudspeakers
Loewe bild 5 oled / bild 4 oled User handbook External devices Connecting active loudspeakers Connecting the HiFi/AV amplifier If you want to use active speakers, you can connect them with an Connecting digital HiFi/AV amplifiers adapter cable to the TV set. -
Page 123: Audio Playback From External Devices
The IR Link function allows the operation of concealed additional to the AV inputs of the TV set. devices made by other manufacturers via the Loewe TV set. The remote control commands are passed from the IR receiver of Connecting an external appliance (e.g. MP3 player) -
Page 124: Setting The Remote Control
Setting the remote control Setting the remote control for other Loewe devices You can operate various Loewe devices with the remote control. The device keys STB – VIDEO – AUDIO can be reassigned to operate Using the remote control for the TV mode of the TV set different Loewe devices. -
Page 125: Teaching The Remote Control
Loewe bild 5 oled / bild 4 oled User handbook Teaching the remote control Teaching the remote control Teaching individual keys All keys (except the TV, STB, VIDEO and AUDIO device keys as well By means of key code 18 (Set-Top Box data base) your remote control... - Page 126 Loewe bild 5 oled / bild 4 oled User handbook Teaching the remote control Deleting individual key functions You can delete the taught function of an individual button. Press STB and green key simultaneously for five seconds. The LED above the STB key lights up perma- nently.
- Page 127 Loewe bild 5 oled / bild 4 oled User handbook Troubleshooting Problem Possible cause Remedy / Instructions The TV set switches off automatically. The automatic shutdown switches off the Using automatic shutdown is recommended TV set to save energy after 4 hours of for the purposes of energy saving and safety.
- Page 128 Loewe bild 5 oled / bild 4 oled User handbook Troubleshooting Problem Possible cause Remedy / Instructions Despite video or music file being played back, a) The TV set is set to mute or the volume has a) Increase the volume by pressing the V+ key no sound can be heard.
-
Page 129: Technical Data
Loewe bild 5 oled / bild 4 oled User handbook Technical Data Technical data Changes of technical data and design of the equipment reserved. Loewe device type: bild 5.65 set bild 5.55 set bild 5.65 oled bild 5.55 oled Part number:... - Page 130 Loewe bild 5 oled / bild 4 oled User handbook Technical Data Technical data Changes of technical data and design of the equipment reserved. Loewe device type: bild 4.55 oled Part number: 57441W90 EU energy efficiency class: see enclosed energy label or under www.loewe.tv/int/my-loewe...
-
Page 131: Signals Via Av (Pc In) / Hdmi
Loewe bild 5 oled / bild 4 oled User handbook Technical Data Signals via AV (PC IN) / HDMI Signal input groups The following table shows the compatible signals which may be In your TV set the signals are sorted in various signal input groups represented by your TV set using the appropriate adapter at the AV according to their source. -
Page 132: Accessories
The application automatically searches for compatible TV sets recordings from the DR + hard disk recorder. Or browse the electronic in the home network. A list of the Loewe TV devices found in the program guide (EPG) on your smartphone and find out about the du- home network appears ration and content of the current program. - Page 133 Loewe bild 5 oled / bild 4 oled User handbook Accessories Overview of the areas: Live area Switch station and stream content In the middle section, the transmission information such as title and As soon as you tap on a tile and a TV set is selected, this switches to progress are available at a glance.
- Page 134 Loewe bild 5 oled / bild 4 oled User handbook Accessories With a further touching of the displayed information, this increases In addition to the detailed information, a recording button is available. and displays additional time information. Use the icon at the bottom To use the mobile recording function, it must be activated on the TV right to start streaming this program onto your tablet or smartphone.
- Page 135 Loewe bild 5 oled / bild 4 oled User handbook Accessories DR + archive and source selection Here you can find stored recordings from your integrated DR + archive. If you have several TV sets with DR + functionality, you can select the desired archive from the drop-down box.
-
Page 136: Upgrade Kits / Conversion Kits / Cables
Adapter Micro-AV / 25cm / Scart (part no. 72150080) set of 3: The reduced focused design of Loewe Assist Easy remote control The Loewe scart adaptor allows you to extend your TV set by adding guarantees survey at first sight, nevertheless all important functions an AV socket to connect, e.g., DVD players or DVD recorders. -
Page 137: Mounting Options
Loewe bild 5 oled / bild 4 oled User handbook Accessories Mounting options Wall Mount: WM 67 WM Slim / VESA Size 300 bild 5.65: 72115W80 bild 5.65: 71391T20 bild 5.55: 71391T20 bild 5.55: 72115W80 Wall Mount: WM Isoflex 32-55 Table Stand: TS Plate bild 5.65: 72815D00... -
Page 138: Environment
Batteries the Free Software Foundation. The batteries supplied as initial equipment do not The publication of this programme by Loewe is carried out WITHOUT contain any pollutants such as cadmium, lead, or ANY GUARANTEE OR SUPPORT, particularly without an implicit mercury. -
Page 139: Miscellaneous
VESA adapter bolts. Should such a calibration process be interrupted, it will be continued Mounting a Loewe flat screen TV set to a holder according to the VESA when switching off the TV set next time. You still have the possibility standard necessarily requires the use of Loewe VESA adaptor bolts. -
Page 140: Ca Module Error Codes
Loewe bild 5 oled / bild 4 oled User handbook Miscellaneous CA module error codes In case of problems with a CA module, error codes are displayed by TV set. The following table from the CI specification shows the meaning of the error codes. -
Page 141: Glossary
Digital Link HD: System for controlling units via the HDMI connection Automatic time control: Also called Accurate Recording. Similar to of the Loewe TV set when they have been set up in a covered position. VPS for analogue stations the automatic time control monitors the start and end times of programmes from DVB stations. - Page 142 Dynamic contrast ratio: Here the light intensity of the display is Loewe TV set. The infrared sensor required for this is available as an ac- adapted in case of a high black content in the picture. The so-called cessory and can be connected to the IR-Link connection of the TV set.
- Page 143 Loewe bild 5 oled / bild 4 oled User handbook Glossary Page Catching: For teletext, refers to marking and calling a page Terrestrial: In data transmission a wireless transmission that does not use satellites as intermediate station is referred to as terrestrial.
-
Page 144: Ec Declaration Of Conformity
Loewe bild 5 oled / bild 4 oled User handbook EC Declaration of Conformity Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 2014/53/EU. In Frankreich und Italien ist die Nutzung nur in Innenräumen zulässig. Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 2014/53/EU. I Frankrig og Italien er det kun tilladt at anvende det indendørs. -
Page 145: Index
Loewe bild 5 oled / bild 4 oled User handbook Index Cinema Surround ................74 CI slot ....................115 Access code ..................84 Cleaning and care ................7 Adding stations to personal list ............80 Clear data base ................83 Additional functions for DR+ archive playback ......59 Clock display .................. - Page 146 Loewe bild 5 oled / bild 4 oled User handbook Index Share DR+ archive with other devices ........94 Instant Channel Zapping ..............32 DVB character set ................92 Instant recording ................44 DVB radio ..................68 Integrated features ............70, 113, 114 DVB settings ................
- Page 147 Loewe bild 5 oled / bild 4 oled User handbook Index OLED calibration ................139 Renaming the personal list ............. 80 OLED Calibration ................70 Renderer ...................70, 101 OLED technology ................139 Repeat initial installation ............ 19, 70, 113 One touch recording ............... 44 Reset to factory settings ..........70, 113, 114...
- Page 148 Loewe bild 5 oled / bild 4 oled User handbook Index Surround Mode ................70 Viewing a locked movie ..............49 Surround modus ................73 Viewing another movie from the archive during archive recording . Switching off the TV set during recording ........45 Volume adjustment ..............
-
Page 149: Service
Loewe bild 5 oled / bild 4 oled User handbook Service Nonplus Ultra Home Automation Pvt Ltd Gaplasa S.A. 3LOGIC Sp.z o.o. Qualifi Pty Ltd First Floor, No. 615, Second Main Road ul. Zakopiańska 153 Conde de Torroja, 25 24 Lionel Road Indiranagar Stage I, Indiranagar 28022 Madrid, España... -
Page 150: Code Page
Loewe bild 5 oled / bild 4 oled User handbook Code page CONDOR 164, 226 LORENZEN 161, 162, 163, 164, 165, 186 CONNEXIONS 047, 096, 226, 231 GENIX LORRAINE BSAT 166, 169 CONRAD 006, 010, 164, 169, 226, 230 GENERAL-INSTRUMENTS... - Page 151 Loewe bild 5 oled / bild 4 oled User handbook Code page OPTIMA SATMASTER 191, 205, 206, 211 OPTUS SATPARTNER 017, 079, 094, 133, 179, THORENS ORBIT 025, 194 180, 193, 201 THORN ORBITECH 006, 017, 103, 169, 181, 224...
-
Page 152: Notes
Loewe bild 5 oled / bild 4 oled User handbook Notes...
Need help?
Do you have a question about the bild 5 and is the answer not in the manual?
Questions and answers
