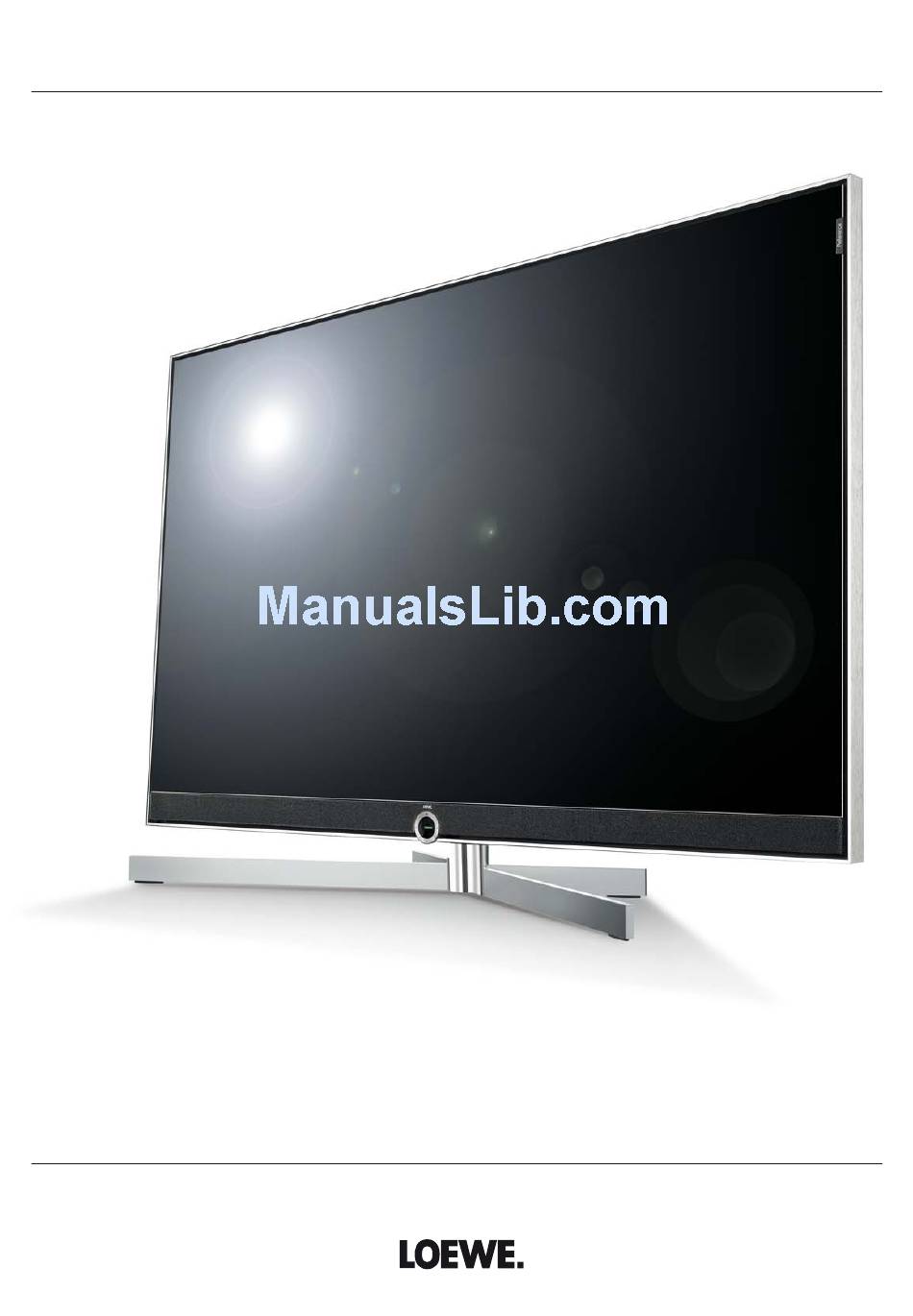

  • Page 1 Reference Reference 55 User guide...

  • Page 2: Table Of Contents

    Reference 55 User guide Table of contents Welcome! ..................3 Video ................... 29 Scope of delivery ..................3 Video playback ....................30 Imprint ......................3 Additional functions for DR+ archive playback ........31 About this user guide ................... 3 Audio/Radio ................32 For your safety ................4 Audio playback ...................33...

  • Page 3: Welcome

    This user guide gives you a short overview of all functions and The necessary control elements are shown in the descriptions to the features of your new Loewe TV set. A detailed user manual file can left of the text containing the instructions for action.

  • Page 4: For Your Safety

    Always wear rubber gloves to carry the TV set if the LCD screen is Please use the Loewe 3D TV sets only with the Loewe 3D glasses which damaged and liquid crystal might be leaking out. In the case of skin can be purchased as an accessory from your Loewe dealer.

  • Page 5: Technical Information

    Hard disks. Pull out the mains plug and all connected antenna cables from the TV Loewe are not liable for the loss of data on the integrated hard disk set in a thunderstorm. Overvoltage caused by lightning strokes can of your TV set. To avoid data loss, we recommend copying important damage the set via the antenna system, as well as via the mains.

  • Page 6: Remote Control Button Mapping

    Reference 55 User guide Remote control Remote control button mapping Depending on the selected operating mode (TV/Video/Audio/Photo/Web) and function (e.g. DR+, EPG, PIP, Teletext, HbbTV, etc.), the key assignment may differ from the assignment described here (see the corresponding chapter in this user manual).

  • Page 7: Operating Controls On The Tv Set

    TV set in standby and background operation active (EPG data updating, Press the TV key. software update or DR+ streaming server function). Infrared transmitter: When showing 3D content, the 3D glasses Loewe Active Glasses 3D are controlled via the infrared sensor.

  • Page 8: Connections Rear Side Of The Device

    Reference 55 User guide Connections rear side of the device Position and function of the connections MOTOR UNIT Slot for Kensington lock HEADPHONE - Headphone connection Jack 3,5 mm – Headphones 32–200 Ohm AC IN - Mains connection Mains socket – 220-240 V ~ 50 / 60 Hz HDMI 3 - HDMI input 3 HDMI type A 1.4b–...

  • Page 9: Preparing The Tv Set

    Connecting the TV set Mounting options / Installation notes Connecting to the mains supply Your Loewe dealer can also assist you in finding other mounting Remove the cover for the connections. options. Look for the corresponding directions in the installation Connect the TV set to a 220-240V mains socket: instruction.

  • Page 10: Switching The Tv Set On/Off

    WLAN antenna. The indicator in the control panel on the front side lights up white. The In order to play back data from your home network your Loewe TV set is now in standby mode. supports the UPnP AV standard.

  • Page 11: General Information On The Operation

    Reference 55 User guide General information on the operation General information on the operation Structure of the Menu screen Basically, the structure of the different menu screens is similar, The most important keys for navigation will be explained in general.
  • Page 12 Reference 55 User guide General information on the operation Screen structure: Setup (example: picture) Entering characters with on-screen keyboard For certain functions, entering letters or characters is required, e.g., for Picture ad- justment Web addresses (URLs) in the browser or for renaming archive entries.

  • Page 13: On-Screen Displays

    Reference 55 User guide On-screen displays Operation without remote control Explanation of keys Operation without remote control An explanation of the main operating keys that can be used at the Changing Volume moment, can be displayed. The availability of the key explanation is dependent on the currently + / –...

  • Page 14: Initial Installation

    Reference 55 User guide Initial installation Initial installation wizard Energy Home mode: efficiency The emphasis for home use is on low energy consump- (continued) Initial installation after switching on for the first time tion. The automatic dimmer is activated. The Initial installation wizard starts automatically with an initial instal- Premium mode: lation.

  • Page 15: Home View

    Reference 55 User guide Home view Home view Home view - Favourites The Home view is the central overview page for all of your TV set‘s You will find your favourites on the right of the individual operating operating modes.

  • Page 16: Setting The Volume

    Reference 55 User guide Volume / Station Selecting a station out of the station list In normal TV mode, without other displays: In TV mode that can be selected via the Home overview, you can use the basic TV functions of your TV set. In TV mode you will have numer- OK Call station list.
  • Page 17 Reference 55 User guide Stations Selecting stations by means of the expanded station list Selecting stations by personal lists You can save your preferred stations in up to six personal lists (e.g., In normal TV mode, without other displays: for several users). Each personal list can contain up to 99 stations.

  • Page 18: Status Display

    (4) and (5). Here you HDTV programme. can choose between Dolby Virtual and Cinema Surround. In sound mode (3), proprietory settings of Loewe are used for the virtual HbbTV mode available from this station. reproduction.

  • Page 19: Function List (Tv Mode)

    Reference 55 User guide Function list / AV list Function list (TV mode) Explanations of the symbols in the function list (continued): Call Edit station list. The function list contains settings and additional options. Die individual Delete stations, shift stations, restore deleted stations.

  • Page 20: Electronic Programme Guide - Epg

    Reference 55 User guide Electronic Programme Guide Electronic Programme Guide – EPG Adapting the EPG Overview The options to be selected are in the header, EPG stands for Electronic Programme Guide and provides you with if not, press MENU key.

  • Page 21: Picture In Picture (Pip)

    Reference 55 User guide Electronic Programme Guide / PIP Meaning of the colours in the EPG Picture in Picture (PIP) The coloured labels indicate the genre of the respective programme. The concurrent display of two different images is referred to as Picture When filtering with genre selection in the header, the programmes of in Picture.

  • Page 22: Teletext

    Reference 55 User guide Teletext Teletext Additional page selection possibilities First possibility: Your TV set supports the two operating systems TOP text and FLOF. Up to 2000 pages are stored in order to get quick access. INFO: Call overview page 100.

  • Page 23: Hbbtv / Mediatext

    Under certain circumstances, the recording and bookmarking functions of the applications may not be supported. Loewe do not guarantee the accessibility, functionality or content of HbbTV applications. Hide / Close HbbTV application BACK: Hide / Close HbbTV application.

  • Page 24: Digital Recorder

    You can record programmes on the integrated hard disk of your TV Programmes that you wish to watch at a later date can be recorded in set with the digital recorder of your Loewe TV set. the Digital Recorder Archive (DR+ archive).

  • Page 25: Multi Recording

    Reference 55 User guide Digital Recorder Time shift viewing during archive recording Multi recording PAUSE key: Switch to freeze picture. The Multi Recording function makes it possible to record two pro- grammes at the same time and still watch a third one as well.

  • Page 26: Dr+ Archive

    Export Copy/move archive entries to an externally con- Open the DR+ archive nected USB storage device or to the hard disk of compatible Loewe TV sets in the home network. Open the DR+ archive. If no target medium is available, the menu item is Select the desired DR+ archive if several available, shown in dark grey.

  • Page 27: Dr + Streaming

    The TV sets also need to be connected via a network (wireless To use DR + streaming, at least two Loewe TV sets are required, of connection via WLAN or cable connection via Ethernet, PowerLine).

  • Page 28: Mobile Recording

    In the last step it is checked whether the email account is accessible If a record command is sent by the Loewe Assist Smart App, this with the set data. command reaches a connecting server.

  • Page 29: Video

    Reference 55 User guide Video Video Video function list The video function list contains the individual functions for your videos. The item Video gives you access to videos from local (USB, home network) and online sources. A video source has been selected.

  • Page 30: Video Playback

    Reference 55 User guide Video Video playback Symbol Remote Description (icon) control key The description of the following functions applies to the playback of videos from the DR+ archive as well as for videos from USB storage – Start DR+ Follow-Me recording.

  • Page 31: Additional Functions For Dr+ Archive Playback

    Reference 55 User guide Video Pause playback (freeze picture) Additional functions for DR+ archive playback PAUSE key: Switch to freeze picture. There are additional editing and playback functions for playback of recorded programmes from the DR+ archive. PLAY key: Continue playback.

  • Page 32: Audio/Radio

    Reference 55 User guide Audio/Radio Audio/Radio Audio/Radio function list The audio/radio function list contains the individual functions for your With item Audio/Radio you find music files from your USB storage music titles. media and media servers in the home network and you access DVB An audio source has been selected.

  • Page 33: Audio Playback

    Reference 55 User guide Audio/Radio Audio playback Pause playback PAUSE key: Halt current playback. Description of the symbols in the status display for audio playback PLAY key: Continue playback. Snow Patrol / Eyes Open Back Winding You can fast forward music titles at four different speeds. Sound is not audible during winding.

  • Page 34: Radio Mode (Dvb Radio)

    Reference 55 User guide Audio/Radio Radio mode (DVB radio) Explanation of keys INFO (press longer): show Explanation of keys. The TV set can receive digital radio stations via DVB. The AUDIO key has been preset to radio mode in the factory.

  • Page 35: Radio Mode (Internet Radio)

    Reference 55 User guide Audio/Radio Radio mode (Internet radio) Search for artists (Artist Search) By means of the search for artists, you can quickly and easily see all The TV set can receive digital radio stations via the Internet. radio stations that just play music by this artist. The result list is sorted for now and most played.

  • Page 36: Photo

    Reference 55 User guide Photo Photo Photo function list The photo function list contains the individual functions for your Via menu item Photo you can view photos from your local media and photos. from online sources on your TV screen.

  • Page 37: Photo Display

    Reference 55 User guide Photo Photo display Full-screen mode A photo is highlighted in the selection (list view). Description of the symbols in the status display for photos OK View photo in full-screen mode. USB1 -> CRW_7266b Back USB1 -> CRW_7266b Back Show previous / next photo.

  • Page 38: Web

    The lower portion of the MediaNet home screen All applications are optimised for use on the TV. contains Recommendations given by Loewe. Browser Call Web browser of the TV set. The given content may change from time to time For further information see chapter Web, section without prior notice.

  • Page 39: Browser

    Reference 55 User guide Browser Entering a URL (Internet address) Browser status is displayed. You can access Internet sites directly using the integrated Opera browser. The web browser can also be used without an Internet Mark the URL (Internet address) of the connection.

  • Page 40: System Settings

    Detailed information on the individual setting options you will find in Menu items Stations: the user manual, which can be downloaded from the Loewe Internet site (see chapter Miscellaneous, section Documentation). Automatic scan TV+Radio, Manuell scan (incl.

  • Page 41: Functions

    Reference 55 User guide Functions Bluetooth Bluetooth Music Player To use the TV set as a playback device for audio streaming, you must With the Bluetooth functionality , you can use a wireless connection pair your smartphone, tablet (audio source) to the TV set.

  • Page 42: Cinema Surround

    For the Cinema Surround mode an advanced Surround Virtualizer technology is used that is developed by Loewe. This one improves speech intelligibility while simultaneously widening the 3D sound. Default setting ex factory. Dolby Virtual Dolby Virtual simulates the hearing impression of a 5.1 surround sound system via the built-in TV...

  • Page 43: Timer

    Reference 55 User guide Functions Timer Delete / change programmed timer instruction Use this function in the timer list if you want to delete recordings al- In the timer menu you will find the Timer List and the Timer Services.

  • Page 44: Software Update

    Software update Software update via USB storage device It is possible to update the software on your Loewe TV set. To do this, plug the USB stick with the downloaded software into a In the software update (package update) all the software releases in free USB port of the TV set.

  • Page 45: Conditional Access Module (Ca Module)

    Select System settings, equipment supplied with the TV set. They are usually available from OK call System settings. your dealer. Loewe does not provide any guarantee for the functioning of the CA module. Select Stations, The TV set must first recognise and set up the CA module during initial go to next column.

  • Page 46: Miscellaneous

    On the rear wall of the TV set, there are four points of screw connec- tions to receive the VESA adapter bolts. Select Extras, Mounting a Loewe flat screen TV set to a holder according to the VESA go to next column. standard necessarily requires the use of Loewe VESA adaptor bolts.

  • Page 47: Screen Cleaning

    TV set. It is possible to remove the front screen of your TV set and to clean it. You can remove and clean the front screen yourself. Loewe accepts no liability for any damage caused by disassembly/assembly and cleaning of the front screen or improper handling.
  • Page 48 Reference 55 User guide Miscellaneous Assembly of the screen Remove the front panel (C) and insert the two centre mounting bolts into the two openings. At the left and right of the screen there are three fixing points into Subsequently, the two sides of the front panel are pressed down from which the screen must be fit.

  • Page 49: Technical Data

    Technical data Loewe device type: Reference 55 Part number: 54433xxx EU energy efficiency class: see enclosed energy label or under www.loewe.tv/int/supportportal Screen diagonal: 140 cm / 55 inch Power consumption On-Mode (max.) (Audio output 1/8 of the maximum value): 205 W Power consumption On-Mode (home) see enclosed energy label or under www.loewe.tv/int/supportportal...

  • Page 50: Environment

    Public License or optionally every later version which is published by the Free Software Foundation. Batteries The publication of this programme by Loewe is carried out WITHOUT The batteries supplied as initial equipment do not con- ANY GUARANTEE OR SUPPORT, particularly without an implicit tain any pollutants such as cadmium, lead, or mercury.

  • Page 51: Index

    Reference 55 User guide Index Hard disks ............. 40 Antenna DVB ..........40 Safety ............4, 5 Archive recording ..........24 HbbTV ............. 23, 40 Scope of delivery ..........3 Artist Search ..........35 HbbTV text ............23 Scrambled stations ........45 Audio playback ..........33 Headphone volume ........

  • Page 52: Service

    Tel +49 9261 99-500 E-mail: salg@eeteuroparts.no P.O. Box 32836, Sheikh Zayed Road Fax +49 9261 99-515 Dubai, UAE E-mail: ccc@loewe.de Tel +971 - 4 343 14 41 Fax +971 - 4 343 77 48 E-mail: service@dubaiaudio.com © by Loewe Technologies 19.01.15...
