3.3.2. Radio module with Quadlock connector WITH factory CD-changer

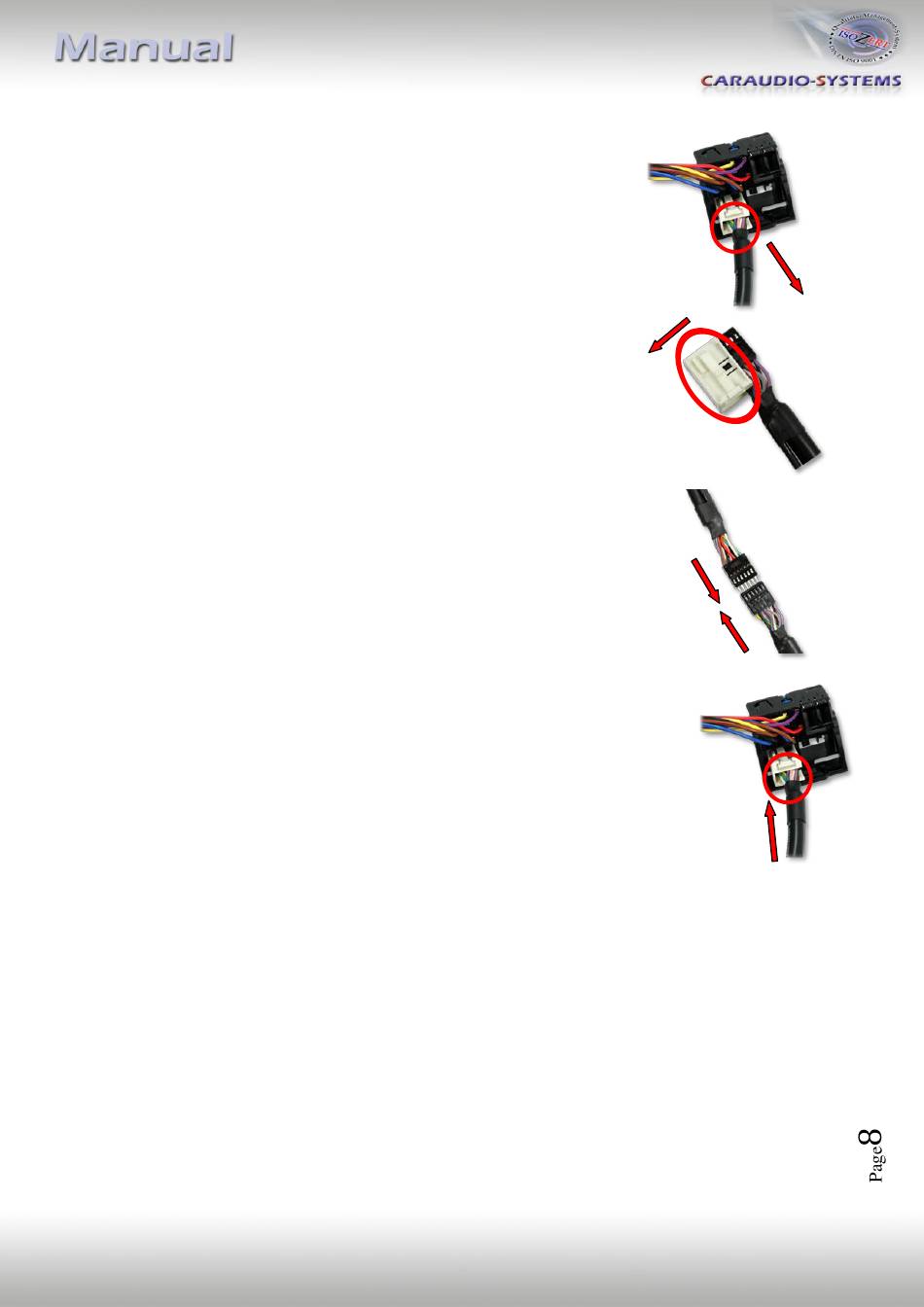

Loosen the female Quadlock connector to the radio module.
Loosen the white female 12pin connector from chamber A of the
female Quadlock connector.
Vehicle
female 12pin
connector
Push the insert from female 12pin connector's plastic cap
from the side.
Vehicle
female 12pin
connector
Buchse
Connect the female 12pin connector of the vehicle harness to the
C3C-BMW701
male 12pin connector of harness C3C-BMW701. Make sure that the
12pin connector
arrows on both black plastics are on the same side and pointing in
opposite directions.
Vehicle female
12pin connector
Insert the female 12pin connector of harnessC3C-BMW701 into the
white cap and connect it back into the female Quadlock connector.
Connect the female Quadlock connector back into the radio
C3C-BMW701
module.
female 12pin
connector

3.3.3. Radio module with Quadlock connector WITHOUT factory CD-changer

Installation is analogue to system with factory CD-changer. Only there is no female 12pin
connector on the vehicle harness. The male 12pin connector of harness C3C-BMW701 is not
used and should be isolated.
