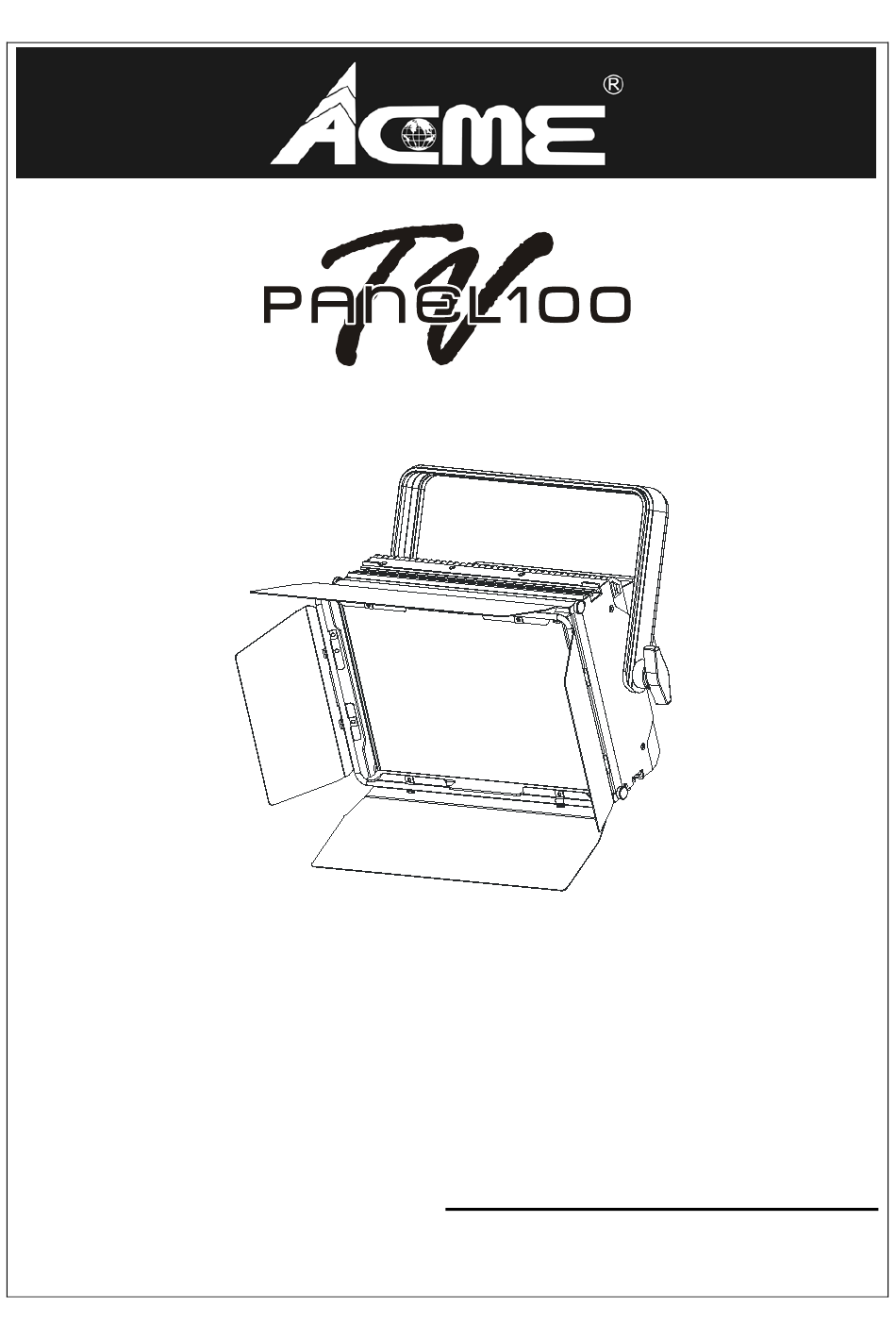

- Page 1 LP-F100 WW LP-F100 CW User Manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Introductions ................2 2. Technical Specifications ................ 3 3. How To Set The Fixture ................. 4 3.1 Control Panel .................. 4 3.2 How to Change the “Remote Phosphor Panel” to Change Color Temperature..................5 3.3 Main Function ................. 6 4. -
Page 3: Safety Introductions
1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ... -
Page 4: Technical Specifications
Caution: There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. -
Page 5: How To Set The Fixture
3. How To Set The Fixture 3.1 Control Panel 1. Fuse (T3.15A): To protect the unit from damage of over current; 2. POWER IN: Connects to mains supply power; 3. POWER OUT: Connects to the next unit; 4. Battery DC24V Input Socket: Connects to external battery; 5. -
Page 6: How To Change The "Remote Phosphor Panel" To Change Color
ENTER To confirm the selected functions 8. Indicator LED: DMX input present MASTER Master Mode SLAVE Slave Mode POWER Power On 9. Display: hows the various menus and the selected functions; 10. Power Switch: Turns On/Off the power. 3.2 How to Change the “Remote Phosphor Panel” to Change Color Temperature Loosen the two screws of the fixture, put out the active frame and remote phosphor panel. -
Page 7: Temperature
3.3 Main Function To select any of the given functions, press the MENU button up to the required selection as shown on the display. Select the function with the ENTER button and the display will blink. Use the DOWN/UP buttons to change the mode. Once the required mode has been selected, press the ENTER button to confirm. - Page 8 DMX 512 Address To select , press the ENTER button to show DMX ADDRESS on the display. Use the DOWN/UP buttons to adjust the address from 1 to 512. Once the address has been selected, press the ENTER button to setup or automatically exit menu mode without any change after 30 seconds. To go back to the previous functions without any change press the MENU button.
-
Page 9: How To Control The Unit
functions without any change press MENU button again. TEMP. , press the ENTER button to show the TEMP. on the display and the display To select the will show the temperature of the unit . To go back to the functions without any changes press the MENU button again. -
Page 10: Dmx Controller
should set the master unit effect via its knobs, then the other units (slave) will lighting as the same. 4.2 DMX Controller When using a universal DMX controller to control the units, you must set a DMX address from 1 to 512. -
Page 11: Dmx512 Connections
248 ~ 255 Open 4.4. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit. -
Page 12: Troubleshooting
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used. 5. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. - Page 13 cause a greater accumulation of dirt on the fixture. Clean with soft cloth using normal glass cleaning fluid or mild soapy water. Always dry the parts carefully. Clean the external optics at least every 30 days. ...
- Page 15 Declaration of Conformity We declare that our products (lighting equipment) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
- Page 16 Innovation, Quality, Performance...
