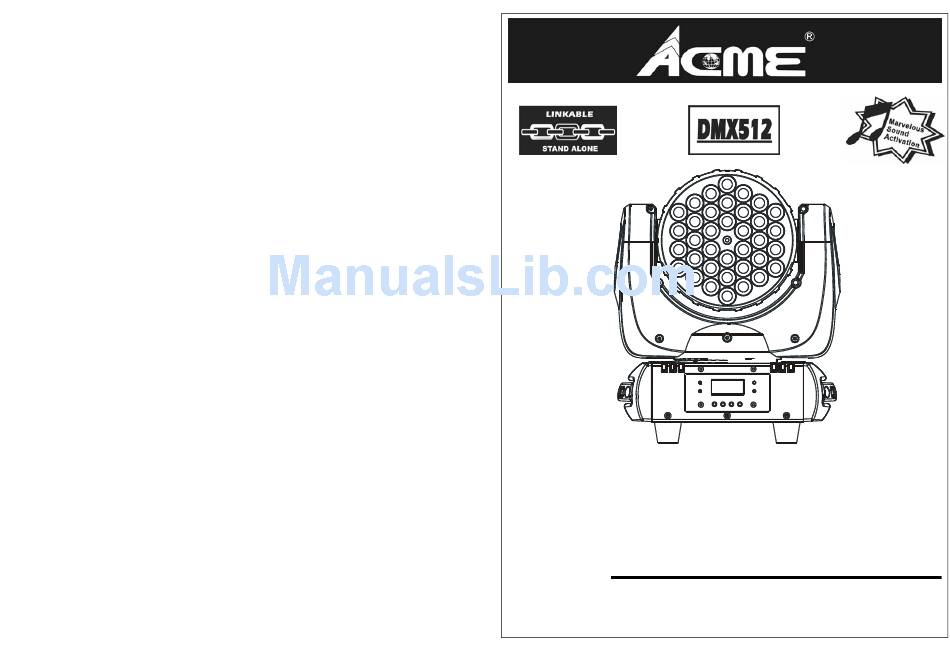

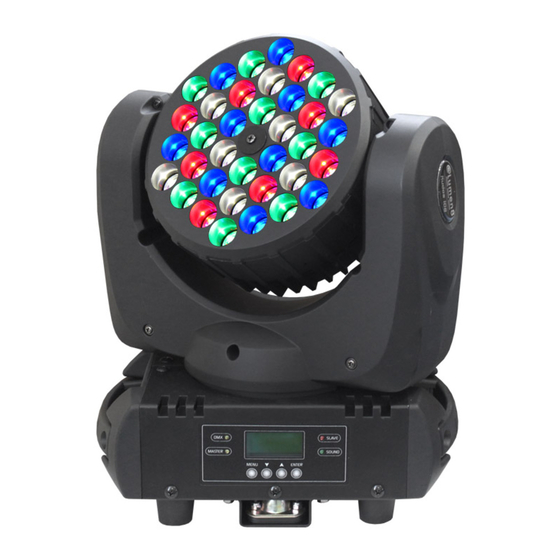

- Page 1 CM-108 RGB User Guide Innovation, Quality, Performance Professional Entertainment Technology...
- Page 2 CM-108 RGB User Guide Innovation, Quality, Performance Professional Entertainment Technology...
- Page 3 TABLE OF CONTENTS EC Declaration of Conformity We declare that our products (lighting equipments) comply with the Safety Instruction following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. Technical Specification EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002; EN61000-4-4: 1995;...
- Page 4 TABLE OF CONTENTS EC Declaration of Conformity We declare that our products (lighting equipments) comply with the Safety Instruction following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. Technical Specification EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002; EN61000-4-4: 1995;...
- Page 5 6. Fixture Cleaning 1. Safety Instruction The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the Please read carefully the instruction, which includes important environment in which the fixture operates: damp, smoky or particularly dirty information about the installation, usage and maintenance.
- Page 6 6. Fixture Cleaning 1. Safety Instruction The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the Please read carefully the instruction, which includes important environment in which the fixture operates: damp, smoky or particularly dirty information about the installation, usage and maintenance.
- Page 7 Warning 5. Troubleshooting To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Do not open the unit within five minutes after switching off. Following are a few common problems that may occur during operation. The housing, the lenses, or the ultraviolet filter must be replaced if they are Here are some suggestions for easy troubleshooting: visibly damaged.
- Page 8 Warning 5. Troubleshooting To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Do not open the unit within five minutes after switching off. Following are a few common problems that may occur during operation. The housing, the lenses, or the ultraviolet filter must be replaced if they are Here are some suggestions for easy troubleshooting: visibly damaged.
- Page 9 4.5 DMX512 Connection Power consumption: 110W Light source: 3W LED x 36 (R12, G12, B12) Dimension: 322X267X167 mm Weight: 6.2 kg 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin 3.
- Page 10 4.5 DMX512 Connection Power consumption: 110W Light source: 3W LED x 36 (R12, G12, B12) Dimension: 322X267X167 mm Weight: 6.2 kg 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin 3.
- Page 11 Only for remote control： 15 channel mode: Connecting with CA-8/CA-9 RTX to control the unit for Stand by, Function and Mode function. Mains input： Connect to power supply. Mains output： Connect to supply power to the next unit. DMX input/output： For DMX512 link, use 3/5-pin XLR cable to link the unit together.
- Page 12 Only for remote control： 15 channel mode: Connecting with CA-8/CA-9 RTX to control the unit for Stand by, Function and Mode function. Mains input： Connect to power supply. Mains output： Connect to supply power to the next unit. DMX input/output： For DMX512 link, use 3/5-pin XLR cable to link the unit together.
- Page 15 DMX Address 12 channel mode: Select DMX Address, press the ENTER button to confirm, the present address will blink on the display. Use the UP and DOWN button to adjust the address from 1 to 512. Once the address has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
- Page 16 DMX Address 12 channel mode: Select DMX Address, press the ENTER button to confirm, the present address will blink on the display. Use the UP and DOWN button to adjust the address from 1 to 512. Once the address has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
- Page 17 change the DMX512 address. Once the address has been selected, press the Dimmer Curve ENTER button to setup, to go back to the functions without any change press the Select Dimmer Curve, press the ENTER button to confirm, present mode will MENU button again.
- Page 18 change the DMX512 address. Once the address has been selected, press the Dimmer Curve ENTER button to setup, to go back to the functions without any change press the Select Dimmer Curve, press the ENTER button to confirm, present mode will MENU button again.
- Page 19 blink on the display. Use the DOWN and UP button to select the Yes (yes blackout), function is good when you want an instant show. You have to set the first unit in No (no blackout) or Freeze mode. Once the mode has been selected, press the master mode Show Mode and select show1 or show2 or show3 or show4 mode.
- Page 20 blink on the display. Use the DOWN and UP button to select the Yes (yes blackout), function is good when you want an instant show. You have to set the first unit in No (no blackout) or Freeze mode. Once the mode has been selected, press the master mode Show Mode and select show1 or show2 or show3 or show4 mode.
- Page 21 Reset All again. Hold and press the MENU button about one second or wait for one minute Press the MENU button up to when the Reset is blinking on the display. to exit the menu mode. Pressing ENTER button and all channels of the unit will return to their standard position.
- Page 22 Reset All again. Hold and press the MENU button about one second or wait for one minute Press the MENU button up to when the Reset is blinking on the display. to exit the menu mode. Pressing ENTER button and all channels of the unit will return to their standard position.
- Page 23 press the MENU button about one second or wait for one minute to exit the menu press the MENU button about one second or wait for one minute to exit the menu mode. mode. Manual Test Defaults Setting Select Manu Test, press the ENTER button to confirm, present mode will blink Press the MENU button to show Defaults on the display.
- Page 24 press the MENU button about one second or wait for one minute to exit the menu press the MENU button about one second or wait for one minute to exit the menu mode. mode. Manual Test Defaults Setting Select Manu Test, press the ENTER button to confirm, present mode will blink Press the MENU button to show Defaults on the display.
