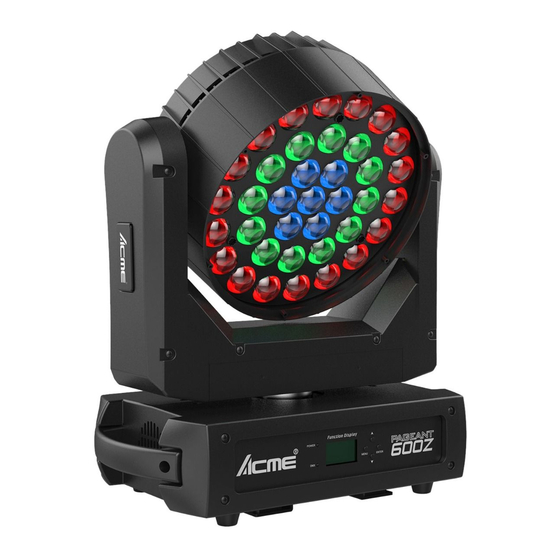

CM-600Z

User Manual

Please read the instruction carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAGEANT CM-600z and is the answer not in the manual?

Questions and answers

Related Manuals for ACME PAGEANT CM-600z

Summary of Contents for ACME PAGEANT CM-600z

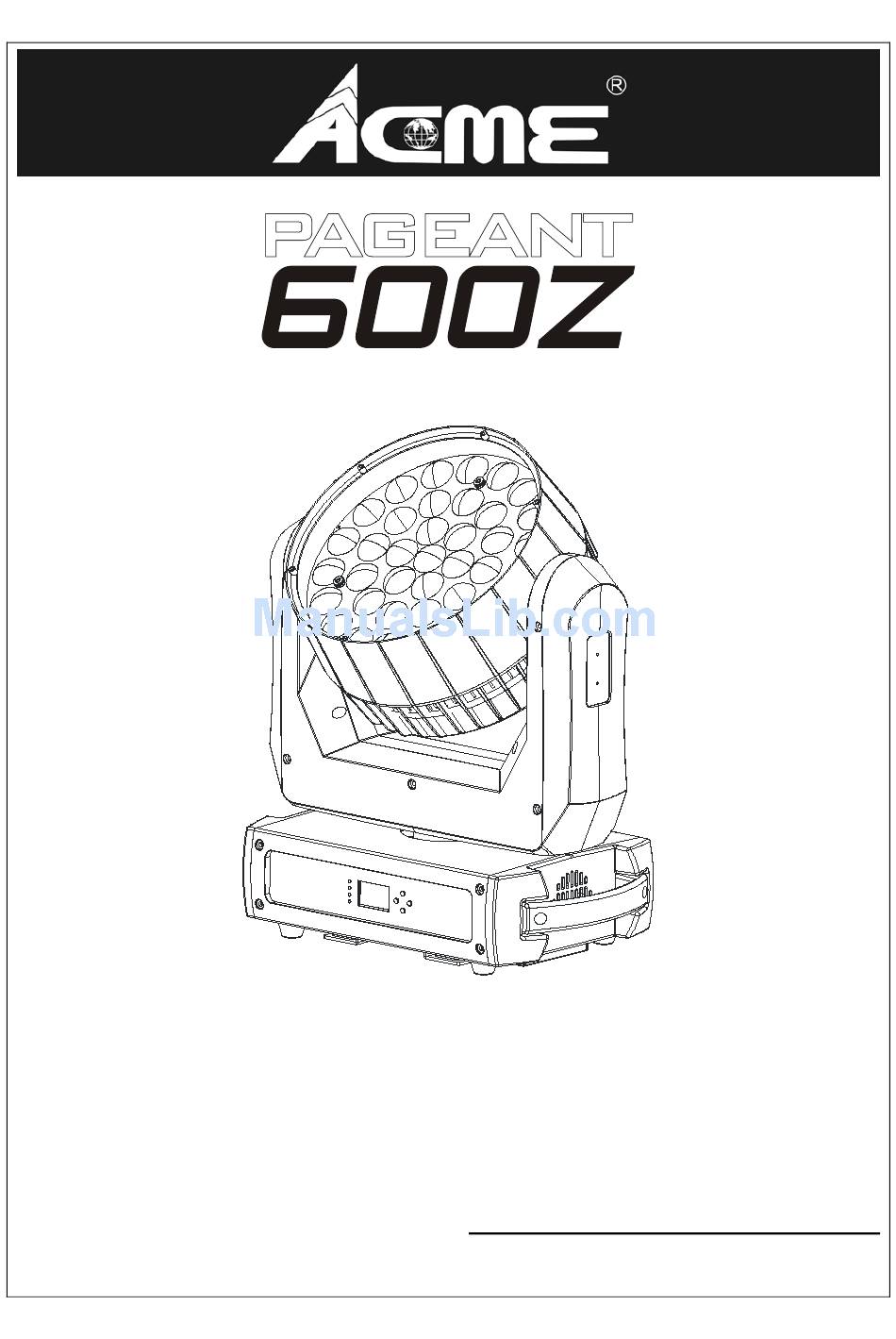

  • Page 1: User Manual

    CM-600Z User Manual Please read the instruction carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ....................2 2. Technical Specifications ..................3 3. How To Set The Unit ....................4 3.1 Control panel ....................4 3.2 Main Function ....................5 3.3 Home Position Adjustment ................13 4. Control By Universal DMX Controller ..............13 4.1 DMX 512 Connection ..................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit.

  • Page 4: Technical Specifications

    Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. The housing and lenses must be replaced if they are visibly damaged. Caution: There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself.

  • Page 5: How To Set The Unit

    Power Cable Daisy Chain: 9 Fixture Max. (230V, 50Hz) 5 Fixture Max. (120V, 60Hz) LED Source: 37 × 10W OSRAM OSTAR LED Beam Angel: 10° ~ 60° Weight: 19.5Kgs Dimension: 430 × 246 × 512mm 3. How To Set The Unit 3.1 Control panel 1.

  • Page 6: Main Function

    DMX input present 3. Button: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions 4. DMX IN: DMX512 link, use 3/5-pin XLR cable to link the unit and the DMX controller 5.
  • Page 8 DMX Functions Enter MENU mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode or View DMX Value. DMX Address To select DMX Address, press the ENTER button to show the DMX ADDRESS on the display. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to setup.
  • Page 9 P/T Feedback To select P/T Feedback, press the ENTER button to show the PAN/TILT FEEDBACK on the display. Use the UP/DOWN button to select No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of step), press the ENTER button to setup. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 10 Linear: The increase in light intensity appears to be linear as DMX value is increased. Square Law: Light intensity control is finer at low levels and coarser at high levels. Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels. S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
  • Page 11 Backlight Intensity To select Backlight Intensity, press the ENTER button to show the BACKLIGHT INTENSITY on the display. Use the UP/DOWN button to adjust the intensity from 1 (dark) to 10 (bright). Once selected, press the ENTER button to setup and store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 12 Fixture Information Enter MENU mode, select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to select Fixture use time, Lamp On tme or Firmware Version. Fixture use time To select Fixture use time, press the ENTER button to show the FIXTURE USE TIME on the display.
  • Page 13 To select All, press the ENTER button to show the ALL on the display. Use the UP/DOWN button to select Yes (the unit will run built-in program to reset all motors to their home positions) or No, press ENTER button to store. Press MENU button to exit menu mode. Special Functions Enter MENU mode, select Special Functions, press the ENTER button to confirm, use the UP/DOWN button to select Fixture Maintenance or Factory Setting.

  • Page 14: Home Position Adjustment

    3.3 Home Position Adjustment In the main functions, hold the ENTER button for at least 3 seconds into offset mode, use the DOWN/UP button up to select Pan Offset, Tilt Offset or Zoom Offset, and press the ENTER button to confirm. Use the DOWN/UP button to adjust the home position of the Pan, Tilt or Zoom, Once the position has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.

  • Page 15: Address Setting

    1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. The last units DMX cable has to be terminated with a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) of a 3-pin XLR-plug and plug it in the DMX-output of the last unit. 3.
  • Page 16 Please refer to the following diagram to set the DMX address for the first 4 units Unit 1 Unit 2 Unit 3 Unit 4 Channel mode Address Address Address Address 14 channels 26 channels...

  • Page 17: Dmx 512 Configuration

    4.3 DMX 512 Configuration 14 Channels Mode: CHANNEL VALUE FUNCTION 000-255 000-255 PAN FINE 000-255 TILT 000-255 TILT FINE PAN/TILT SPEED 000-255 fast slow SPECIAL FUNCTIONS 000-009 No function 010-014 Reset 015-255 No function DIMMER 000-255 0%~100% SHUTTER 000-019 Blackout 020-024 Open 025-064...
  • Page 18 000-255 BLUE (0% 100%) 000-255 WHITE (0% 100%) COLOR MACRO 000-009 Open 010-014 LEE 790 – Moroccan Pink 015-019 LEE 157 – Pink 020-024 LEE 332 – Special Rose Pink 025-029 LEE 328 – Follies Pink 030-034 LEE 345 – Fuchsia Pink 035-039 LEE 194 –...
  • Page 19 235-239 Fast 240-244 Medium 245-249 Slow 250-255 Open ZOOM 000-255 wide narrow 26 Channels Mode: CHANNEL VALUE FUNCTION 000-255 000-255 PAN FINE 000-255 TILT 000-255 TILT FINE PAN/TILT SPEED 000-255 fast slow ZOOM 000-255 wide narrow SPECIAL FUNCTIONS 000-009 No function 010-014 Reset 015-255...
  • Page 20 190-204 Strobe 8: random burst pulse, fast slow 205-209 Open 210-224 Strobe 9: sine wave, fast slow 225-229 Open 230-244 Strobe 10: burst, fast slow 245-255 Open 000-255 RING 1 RED (0% 100%) 000-255 RING 1 GREEN (0% 100%) 000-255 RING 1 BLUE (0% 100%) 000-255...
  • Page 21 241-247 Color32 248-255 Color33 000-255 RING 2 RED (0% 100%) 000-255 RING 2 GREEN (0% 100%) 000-255 RING 2 BLUE (0% 100%) 000-255 RING 2 WHITE (0% 100%) RING 2 COLOR PRESET 000-255 (The same as CH14 RING 1 COLOR PRESET) 000-255 RING 3 RED (0% 100%)

  • Page 22: Troubleshooting

    5. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.

  • Page 23: Declaration Of Conformity

    Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2004/108/EC. EN55103-1: 2009 ; EN55103-2: 2009; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 24 Innovation, Quality, Performance...
