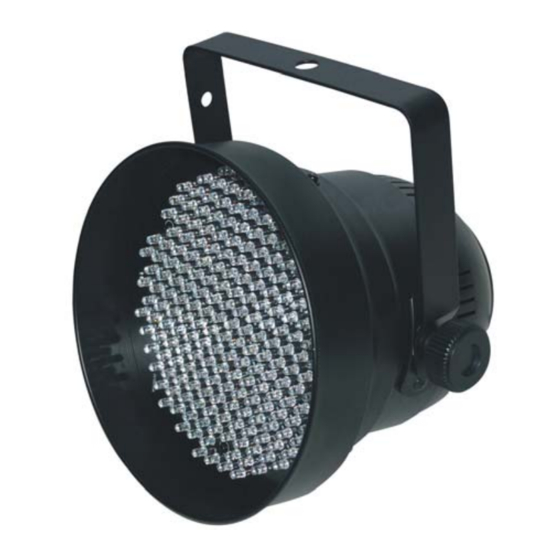

- Page 1 COLOR PAR 64 CP‐64 BD15 CP‐64 PD15 User Manual Please read the instruction carefully before use...
-
Page 2: Table Of Contents
Contents 1. Safety Instruction .....................2 2. Technical Specification....................3 3. Installation........................4 4. DMX Address Setting ....................4 A. DMX address setting by dip‐switches..............5 B. Automatic DMX‐addressing..................5 C. Remote DMX address setting by CA‐T DMX TESTER..........6 D. Remote DMX address setting by Universal DMX controller .........6 5. How to control the fixture ..................7 A. Universal DMX controller ..................7 B. Master/Slave operation..................8 C. Easy Controller (By CA‐8)..................8 6. DMX 512 Connections ....................9 7. Troubleshooting......................10 8. Fixture Cleaning......................11 ... -
Page 3: Safety Instruction
1. Safety Instruction Please read the instruction carefully which including important information about the installation, operation and maintenance. WARNING ♦ Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ♦ Unpack and check carefully there is no transportation damage before using the unit. ♦ Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. ♦ It’s important to ground the yellow/green conductor to earth in order to avoid electric shock. ♦ Disconnect mains power before maintenance or servicing. ♦ Use safety cable when fixes this unit. Don’t handle the fixture by taking its head only, but always taking its base. ℃ Don’t operate it when the temperature is higher. ♦ Maximum ambient temperature TA: 40 . ♦ In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repair carried out by unskilled people can lead to damage or malfunction. ... -
Page 4: Technical Specification
2. Technical Specification Input Voltage: AC 120V~60Hz or AC 230/240/250V~50Hz • • Power consumption: 28 W • LED: 212pcs Red 70pcs, Green 71pcs, Blue 71psc • Channels: Channel 1 = Red Channel 2 = Green Channel 3 = Blue Channel 4 = Dimmer/Sound Chase/Strobe • Dimension: 216 x 216 x 205mm • Weight: 3kg • Beam Angel: 15 ° Luminous intensity: ... -
Page 5: Installation
3. Installation Please check out the voltage before applying power. Do not connect the fixture to an electrical dimmer system which could damage the inside electronics. 4. DMX Address Setting Each fixture needs to have an address set to receive the data sent by the controller. The address number is between 0~511 (usually 0&1 are equal to 1). The address, also know as the start channel, is the first channel used to receive instructions the controller. There are four ways to set the fixture DMX start address: A. DMX address setting by dip‐switches B. Automatic DMX‐addressing C. Remote DMX address setting by CA‐T DMX TESTER D. Remote DMX address setting by universal DMX controller If you use the function B, C or D to set the DMX start address, the fixtures of the chain all DIP switch MUST be set to OFF. ... -
Page 6: Dmx Address Setting By Dip-Switches
A. DMX address setting by dip‐switches 1. Select the channels of DMX controller 2. Dipswitches Dip # 1 # 2 # 3 # 4 # 5 # 6 # 7 # 8 # 9 # 10 Value 1 2 4 8 16 32 64 128 256 No function Example: Channel 01: dip/on: #1 (=1) Channel 05: dip/on: #1, #3 (1+4=5) ... -
Page 7: Remote Dmx Address Setting By Ca-T Dmx Tester
C. Remote DMX address setting by CA‐T DMX TESTER The fixture can be set the DMX address remotely by CA‐T DMX TESTER. Please refer to the CA‐T user manual to set the DMX address to the fixture. D. Remote DMX address setting by Universal DMX controller 1. Make sure the DMX cable of all units are connected. 2. Connect the first unit to a universal DMX controller. 3. Connect all units to the mains so they are switched on. 4. Set all DMX‐channels on your DMX‐controller to zero (value 000). 5. Set all DMX‐channels, that you want to assign as DMX start address on your projector, tot maximum (value 255). 6. Press the “Auto DMX address” button on the projector shortly. 7. If you want to set another projector to the same DMX start address. Simply press it’s “Auto DMX address”, button and it will receive the same address. 8. Done! An example to make things clear: 1. We will set the DMX start address of a projector to 106. 2. Connect the projector to the DMX‐controller as described above and make sure all is switched on. 3. Set all DMX‐channels on the controller to zero (000). ... -
Page 8: How To Control The Fixture
4. Now set SMX‐channel 106 to maximum (255). 5. Press the “Auto DMX address” button on the projector shortly. 6. Done! Your projector now has DMX address 106! 5. How to control the fixture Three ways to set‐up the DMX address: A. Universal DMX controller B. Master/Slave operation C. Easy controller(by CA‐8) A. Universal DMX controller The fixture can be set the DMX address remotely by universal DMX controller. First, you need to programming two scenes into a chase, and then link the fixtures to the universal DMX controller. When you run the chase, all the fixture of the chain will be set the series DMX address automatically. If you use a controller with 5 pins DMX connector, you need to use a 5 to 3 pin adapter. The fixture uses four channels. Please refer the following diagram to use your controller to activate the fixture. ... -
Page 9: Master/Slave Operation
B. Master/Slave operation The fixtures will allow you to link 16 fixtures together and operate without a controller. In Master/Slave mode, the first fixture will control the others to give an automatic, sound activated, synchronized light show. This function is good when you want an instant show. The first unit it’s DMX input cable will have nothing connect it, and the other fixtures will be set in slave mode automatically. Their DMX input cables connect the last fixture DMX output cable (daisy chain). Any fixture can act as a master or as a slave. C. Easy Controller (By CA‐8) The easy remote control is used only in master/slave mode. There is a terminator for connect the easy controller inside the fixture. By connecting the cable into DMX IN waterproof cable gland to the CA‐8terminator of the first fixture, you will find that the remote control on the first fixture will control all the other units for Stand by, Function and Mode. Built‐in lighting shows triggered by Easy Controller: Stand by Blackout the fixture 9 Color select Color Chase Color Fade White→ 1.The same Fast speed Red→ color Middle speed Blue→ 2.Different Slow speed Strobe 1. Synchronous Strobe in white Purple→ color color Function Orange→ 3.One light 2. The same color chase ... -
Page 10: Dmx 512 Connections
6. DMX 512 Connections The DMX 512 is widely used in intelligent lightings and with a maximum of 512 channels. 1. Connect the unit together in a ‘daisy chain’ by XLR plug from the output of the unit to the input of the next unit. The cable can not be branched or split to a ‘Y’ cable. DMX 512 is a very high‐speed signal. Inadequate or damaged cables, solder joints or corroded connectors can easily distort the signal and shut down the system. 2. The DMX output and input connectors are pass‐through to maintain the DMX circuit, when power is connected to the unit. 3. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX‐) and pin 3(DMX+) into a 3‐pin XLR‐plug and plug it in the DMX‐output of the last unit. 4. Each lighting unit needs to have an address set to receive the data sent by the controller. The address number is between 0‐511 (usually 0 & 1 are equal to 1). ... -
Page 11: Troubleshooting
7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one. 4. Try to use another DMX controller. 5. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit. C. Some units don’t respond to the easy controller 1. You may have a break in the DMX cabling. Check the LED for the response of the master/ slave mode signal. 2. Wrong DMX address in the unit. Set the proper address. D. No response to the sound 1. Make sure the unit does not receive DMX signal. 2. -
Page 12: Fixture Cleaning
8. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days. ... - Page 13 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2004/108/EC. EN55103-1: 2009 ; EN55103-2: 2009; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
- Page 14 Innovation, Quality, Performance ...
