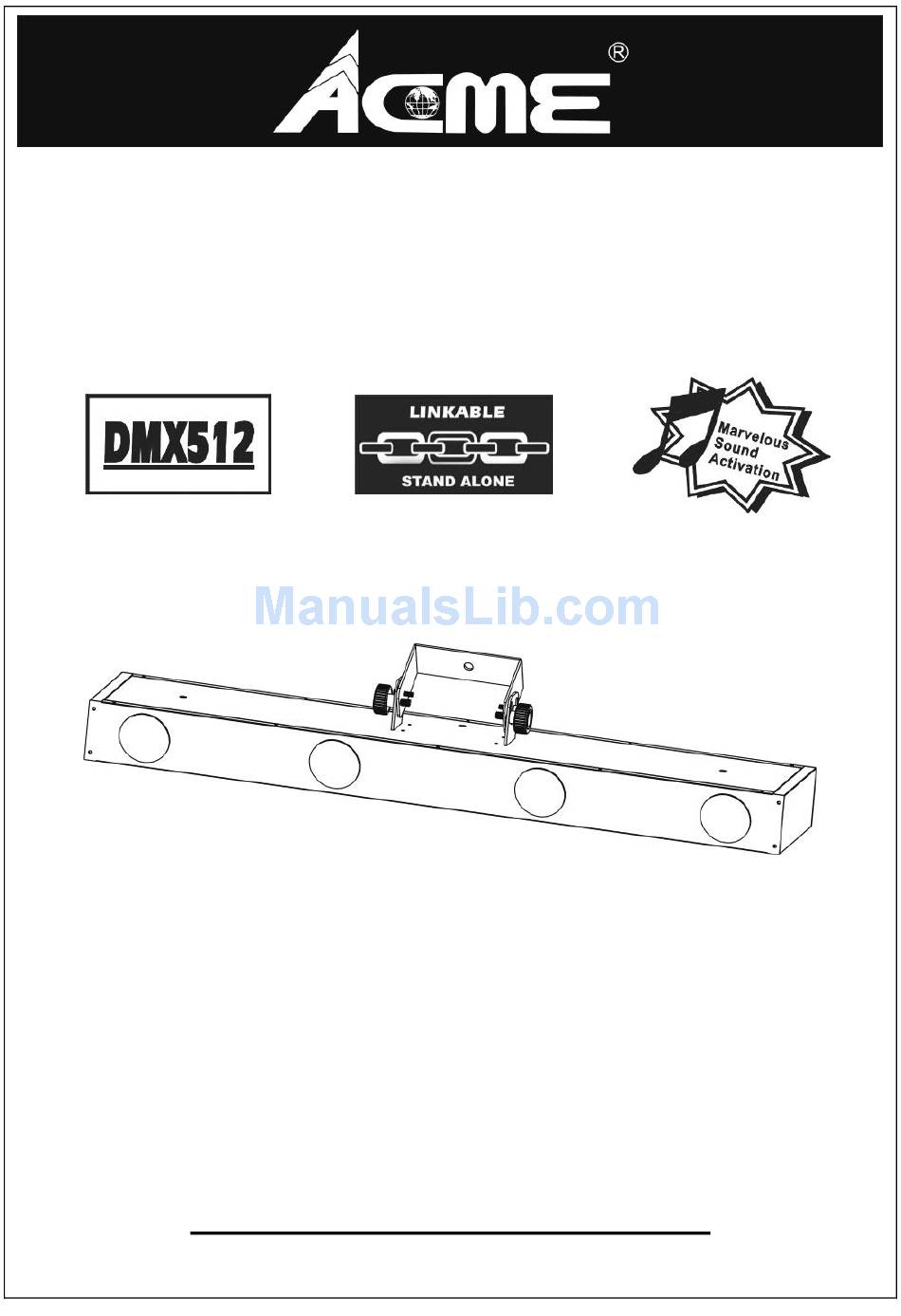

  • Page 1: User Manual

    STYLED LED-7474 User Manual Professional Entertainment Technolog...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 3. Installation 4. How to Control the Unit 4.1 Control Panel 4.2 Master/Slave operation 4.3 Easy controller CA-8 4.4 Universal DMX controller 5. DMX 512 Configuration 6. DMX 512 Connection 7. Troubleshooting 8.

  • Page 3: Safety Instruction

    1. Safety Instruction Please read the instruction carefully which including important information about the installation, operation and maintenance. WARNING  Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. ...

  • Page 4: Technical Specification

    2. Technical Specification  Featuring 4 LED clusters & great programs, styled rocks the crowds with dynamic scanning effects and powerful beams.  3 Operation Modes: DMX, Master/Slave, Sound Activation.  Optional CA-8 easy controller for enjoying instant lighting shows at your fingertips. ...

  • Page 5: How To Control The Unit

    4. How To Control The Unit 4.1 Control Panel ○ 1 Mains input：Connect to supply mains power. ○ 2 Mains output：Connect to supply mains power for the next unit. ○ 3 DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal. ○...

  • Page 6: Easy Controller

    4.3 Easy Controller (by CA-8) The easy remote control is used only in master/slave mode. By connecting to the 1/4” microphone jack of the first unit, you will find that the remote controller on the first unit will control all the other units for Stand by, Function and Mode selection Blackout the unit Stand by 1.

  • Page 7: Dmx 512 Configuration

    Set dip switch 10 to OFF, the unit is in 6 channels mode Unit 1：dip / on: #1 (=1) Unit 2：dip / on: #1, # 2, #3 (1+2+4=7) Unit 3：dip / on: #1, #3, #4 (1+4+8=13) Unit 4：dip / on: #1, #2, #5 (1+2+16=19) 5.

  • Page 8: Dmx 512 Connection

    6. DMX 512 Connection The DMX 512 is widely used in intelligent lightings and with a maximum of 512 channels. 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.

  • Page 9: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light Check the connection of power and main fuse. Measure the mains voltage on the main connector. B.

  • Page 10: Fixture Cleaning

    8. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
  • Page 11 EC - Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002; EN61000-4-4: 1995;...
