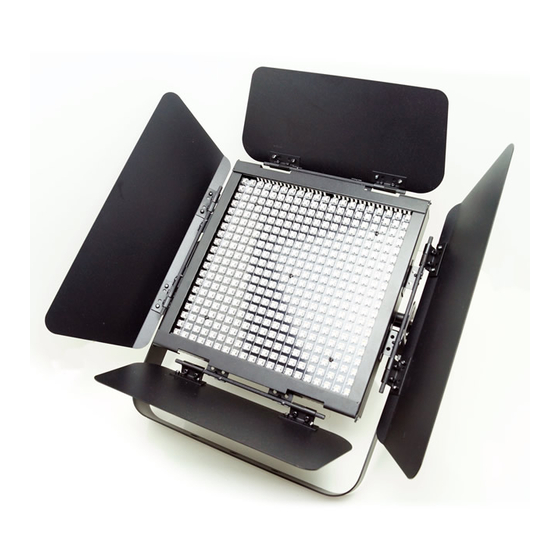

ACME LED-LP400 User Manual

Light panel 400
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LED-LP400

User Manual

Please read it carefully before using

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED-LP400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME LED-LP400

Summary of Contents for ACME LED-LP400

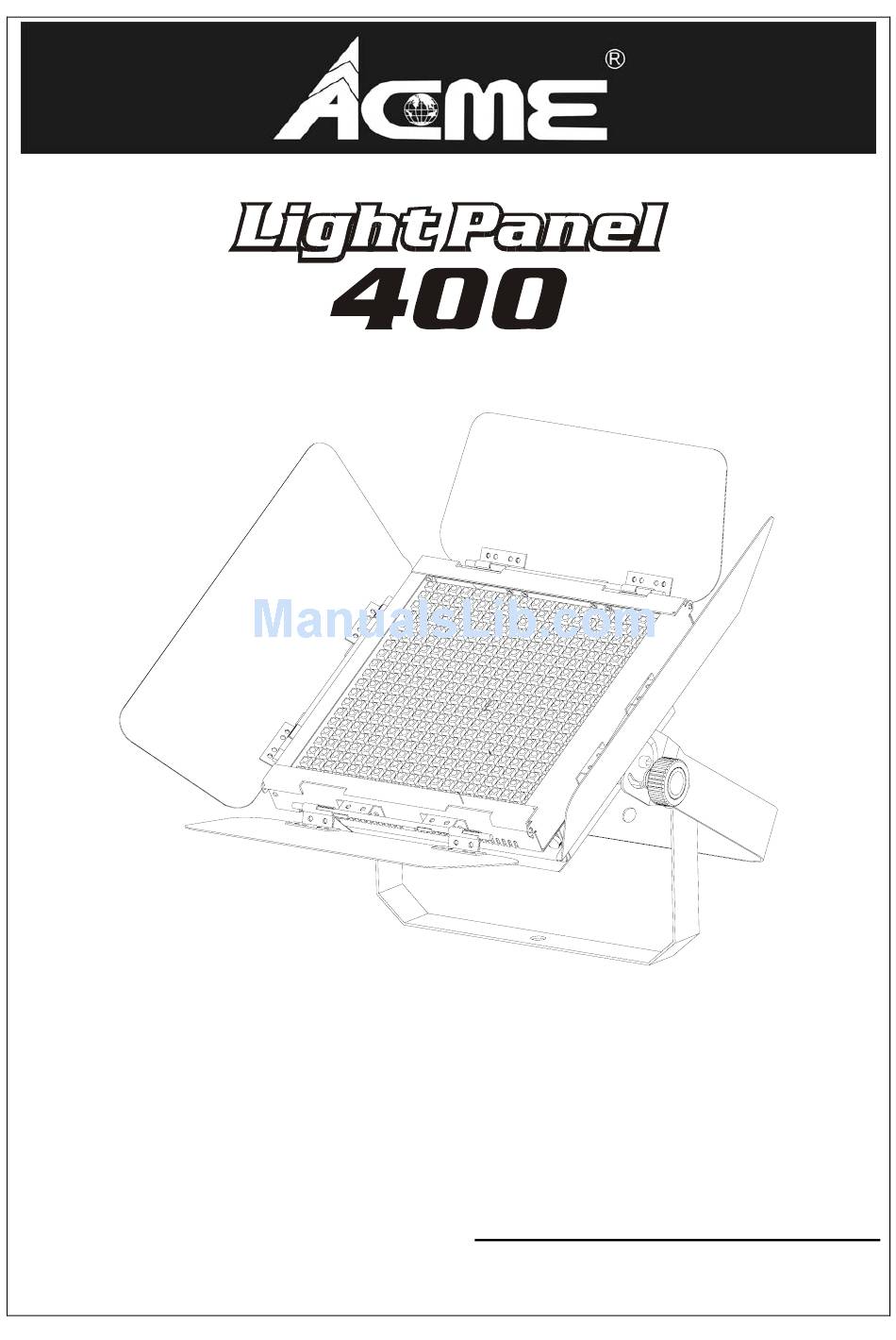

  • Page 1: User Manual

    LED-LP400 User Manual Please read it carefully before using...

  • Page 2: Table Of Contents

    Contents 1. Safety Introductions ......................2 2. Technical Specifications.......................3 3. Installation ..........................3 4. How To Set The Fixture .......................4 4.1 Control Panel.........................4 4.2 Main Function .......................5 5. How To Control The Unit ....................8 5.1 Master/Slave Function ....................9 5.2 DMX Controller ......................9 6.

  • Page 3: Safety Introductions

    1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit.

  • Page 4: Technical Specifications

    Direct sunlight can cause heat to build up inside of the unit, which will seriously damage unit. For 230V 50Hz power supply, maximum fixtures that can be connected on one power cable is 20; For 120V 60Hz power supply, maximum fixtures that can be connected on one power cable is 12; 2.

  • Page 5: How To Set The Fixture

    4. How To Set The Fixture 4.1 Control Panel 1. Display: Used to show the various menus and the selected functions; 2. Indicator LED: DMX input present MASTER Master Mode SLAVE Slave Mode COLOR TEMP. Flashing Max. power consumption of CW/WW 3.

  • Page 6: Main Function

    11. Safety Hook: Ensure the safety of the fixture installation. 4.2 Main Function To select any functions, press the MENU button until the required one is shown on the display. Select the function by the ENTER button and the display will blink. Use the DOWN and UP button to change the mode.
  • Page 7 DMX 512 Address Press the MENU button up to when the is shown on the display. Press the ENTER button and the display will blink. Use the DOWN and UP button to change the DMX 512 address. Once the address has been selected, press the ENTER button to setup or automatically exit menu mode without any change after 8 seconds.
  • Page 8 Channel Mode Press the MENU button up to when the is shown on the display. Press the ENTER button and the display will blink. Use the DOWN and UP button to select the channels) or (2 channels) or (3 Channels) mode. Once the mode has been selected, press the ENTER button to setup or automatically exit menu mode without any change after 8 seconds.

  • Page 9: How To Control The Unit

    MENU button again. Display Inverse Press the MENU button until the is blinking on the display. Use the DOWN and UP button to select the (normal) or (inverse), press the ENTER button to setup. Back to the functions without any change press the MENU button. Auto Test Press the MENU button up to when the is blinking on the display.

  • Page 10: Master/Slave Function

    5.1 Master/Slave Function By linking the units in master/slave connection, the first unit will be master automatically. You should set the master unit effect via its knobs, then the other units (slave) will lighting as the same. 5.2 DMX Controller An universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel so that the units can receive DMX signal.

  • Page 11: Dmx512 Configuration

    6. DMX512 Configuration 2/3 Channels Mode: 7. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

  • Page 12: Troubleshooting

    1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2.

  • Page 13: Fixture Cleaning

    the fixture or the previous one. 4. Try to use another DMX controller. 5. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit. C. No response to the sound 1.

  • Page 15: Declaration Of Conformity

    Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 16 Innovation, Quality, Performance...

This manual is also suitable for:

Light panel 400
