ACME LED-4TC User Manual

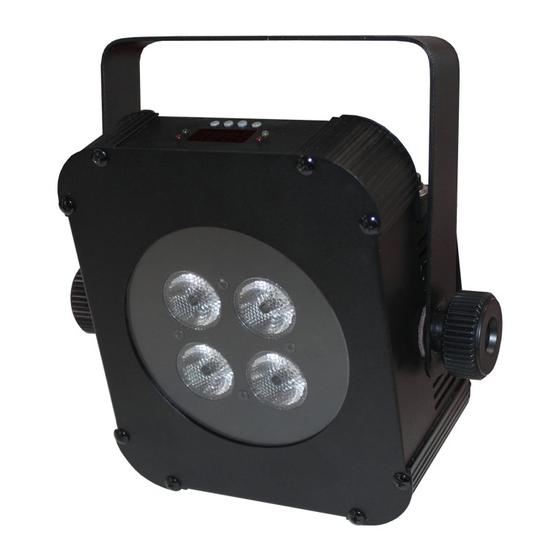

Led panel
Hide thumbs

Advertisement

Table of Contents

LED PANEL
LED-4TC

User Manual

Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED-4TC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME LED-4TC

Summary of Contents for ACME LED-4TC

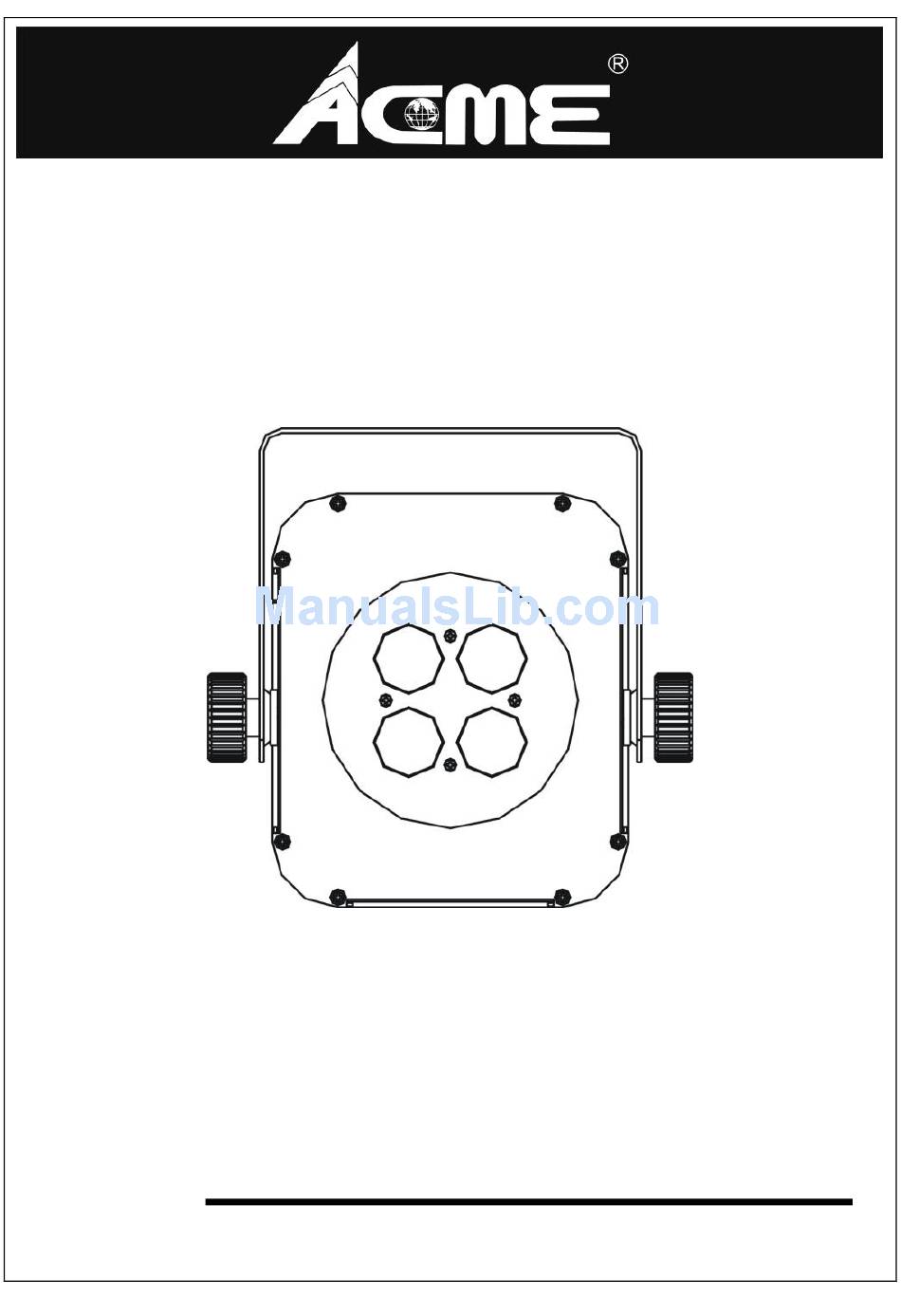

  • Page 1: User Manual

    LED PANEL LED-4TC User Manual Please read the instructions carefully before use...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Installation 4. How to set the unit 5. How to control the fixture 6. DMX512 Configuration 7. DMX512 Connections 8. Troubleshooting 9. Fixture Cleaning...
  • Page 4 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING  Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. ...

  • Page 5: Technical Specifications

     To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.  Do not open the unit within five minutes after switching off.  The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

  • Page 6: How To Set The Unit

    4. How To Set The Unit 4.1 Control Panel ○ 1 Display: To show the various menus and the selected functions LED: ○ 2 DMX DMX input present ○ 3 MASTER Master Mode ○ 4 SLAVE Slave Mode ○ 5 SOUND Flashing Sound activation Button:...
  • Page 7 4.2 Main Function To select any of the given functions, press the MENU button up to the required one is shown on the display. Select the function by ENTER button and the display will blink. Use DOWN and UP button to change the mode. Once the required mode has been selected, press the ENTER button to setup or it will automatically return to the main functions without any change after idling 8 seconds.
  • Page 9 DMX 512 Address Setting Press the MENU button up to when the is shown on the display. Press ENTER button and the display will blink. Use DOWN and UP button to change the DMX512 address. Once selected, press the ENTER button to store or automatically return to the main functions without any changes after 8 seconds.
  • Page 10 or … (fastest), press ENTER button to store or automatically return to the main functions without any change after 8 seconds. To go back to the functions without any change press the MENU button again. Slave Mode Press the MENU button up to when the is shown on the display.
  • Page 11 Color Mode Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to select the (color 1) or … or (show 16) or (manual setting). Once select, press the ENTER button to confirm, if you select (manual setting), you can press DOWN and UP button to select...

  • Page 12: How To Control The Fixture

    White balance Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to select the (red) or (green) or (blue), press ENTER button to confirm, then use DOWN and UP button to adjust the value (0-255) and press ENTER button to store, automatically return to the main functions without any change after 8 seconds.
  • Page 13 4Channels: B. Master/Slave operation The fixture will allow you to link 16 fixtures together and operate without a controller. In Master/Slave mode, the first fixture will control the others to give an automatic, sound activated, synchronized light show. This function is good when you want an instant show. The first fixture it’s DMX input cable will have nothing connect it, and the other fixtures will be set in slave mode automatically.

  • Page 14: Dmx512 Configuration

    6. DMX512 Configuration...

  • Page 15: Dmx512 Connections

    7. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture.

  • Page 16: Troubleshooting

    8. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B.

  • Page 17: Fixture Cleaning

    9. Fixture Cleaning The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. ...
  • Page 19 EC Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1:199601-2; EN55103-2:1996; EN61000-3-2:2000+A2:2005; EN61000-3-3:1995+A1:2001+A2:2005. & Harmonized Standard EN 60598-1: 2004 IEC 60598-1:2003+ corrigendum 2004 Part 1:General requirements and test Following the provisions of the low voltage directive 73/23/EEC and...
  • Page 20 Innovation, Quality, Performance...
