Shadowspec UNITY Owner's Manual page 9

Installation Spacing - Multiple Umbrellas
Offset, Opposing & Reflecting Umbrellas.
A popular choice when installing Shadowspec Serenity and Shadowspec Unity umbrellas is to pair them in a "flock". This,
of course, requires specific measurements to ensure the umbrellas can open beside each other and in the case of square
frames, fit an additional raingutter in between them.

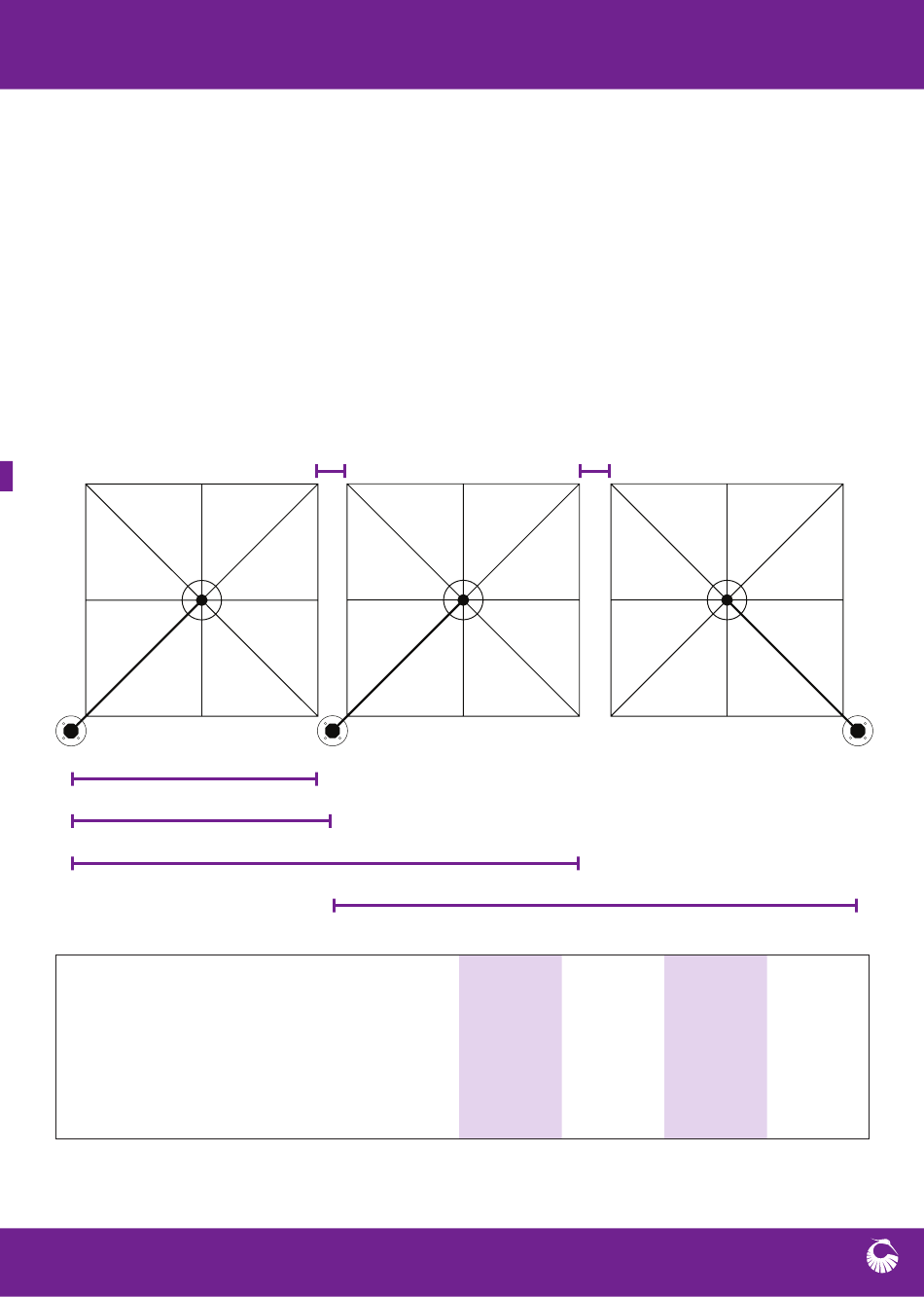

The following diagrams will show you how far apart to set the Spigots of your Shadowspec Unity when matching it with
another Shadowspec Serenity or Shadowspec Unity.
These measurements are from centre of the Spigot to the centre of the Spigot for the adjacent umbrella.
For accuracy, we recommend using the metric measurements. Below you will find several common layout options and the
measurements relevant to them for your reference. Please also complete your own measurements to double check before
installation. Contact customercare@shadowspec.com with any installation or spacing questions.
b
c
Diagram Legend
a
Gap between Canopy Frames
b
Centre of Spigot to outside edge of canopy
c
Centre of Spigot to Centre of Second Serenity/Unity
d
Centre of Spigot to outside edge of Second Serenity/Unity
e
Centre of Spigot to Center of Second Spigot (reflected)
Note: All sizings and conversions are +/- 2.5mm / 2/32'' and are subject to change without notice.
a
d
158mm
2648mm
2727mm
5375mm
5454mm
a
e
2.5m 8'
6''
8'8''
8'11''
17'8''
17'11''
3.0m 10'
160mm 6''
2980mm 9'9''
3060mm 10'1''
6040mm 19'10''
6120mm 20'1''
