Installation - Umbrella Orientation
Aligning your Umbrella.
When you install your umbrella, you need to be conscious of the orientation in relation to the buildings, walls and other
umbrellas in your space.
When installing your umbrella using the Surface Plate (page 16) or the In-Ground Anchor (page 14) you need to align the
bolt holes with the exisiting structures.
Step 1 Locate the Bolt Holes on your chosen mounting option.
Step 2 Draw an imaginary box along the center of each bolt hole to create a square.
This will give you the orientation, required to match existing structures and other umbrellas.
Step 3 Before creating any holes, align the square parallel to the exisiting structure. Any secondary umbrellas
should then be aligned in parallel with the holes to ensure correct orientation.
Step 4 Double check your measurements and orientation before affixing your umbrella.

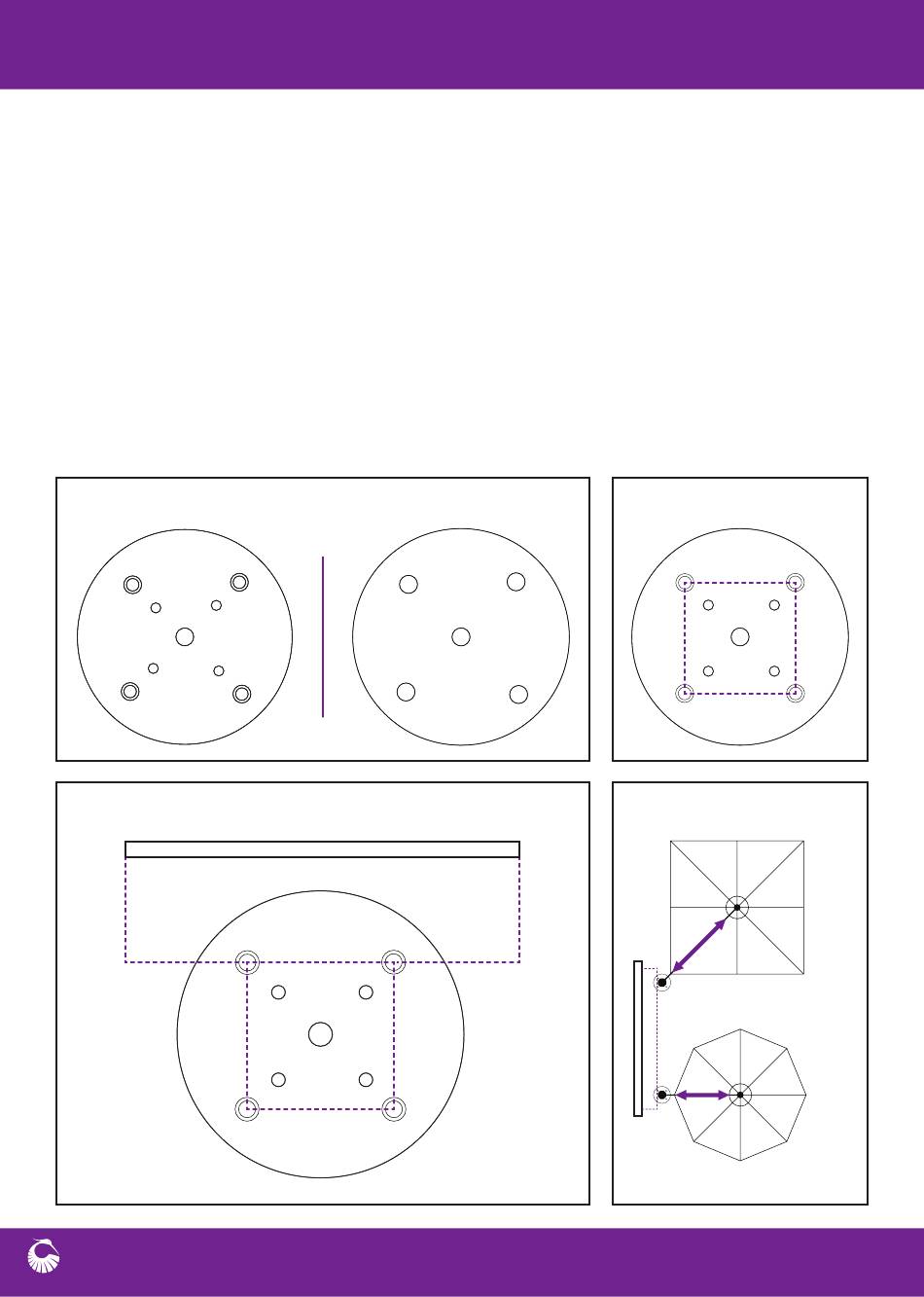

Surface Plate Alignment
Diagram I
10
In-Ground Anchor Alignment
Mount Parallel to Structure
Diagram IV
(Diagram I and
Diagram II
II)
(Diagram III)
(Diagram IV)
(Diagram V)
Bolt-hole Orientation
Diagram III
Opening Direction
Diagram V
Square Umbrella
Octagon Umbrella
